Product Description

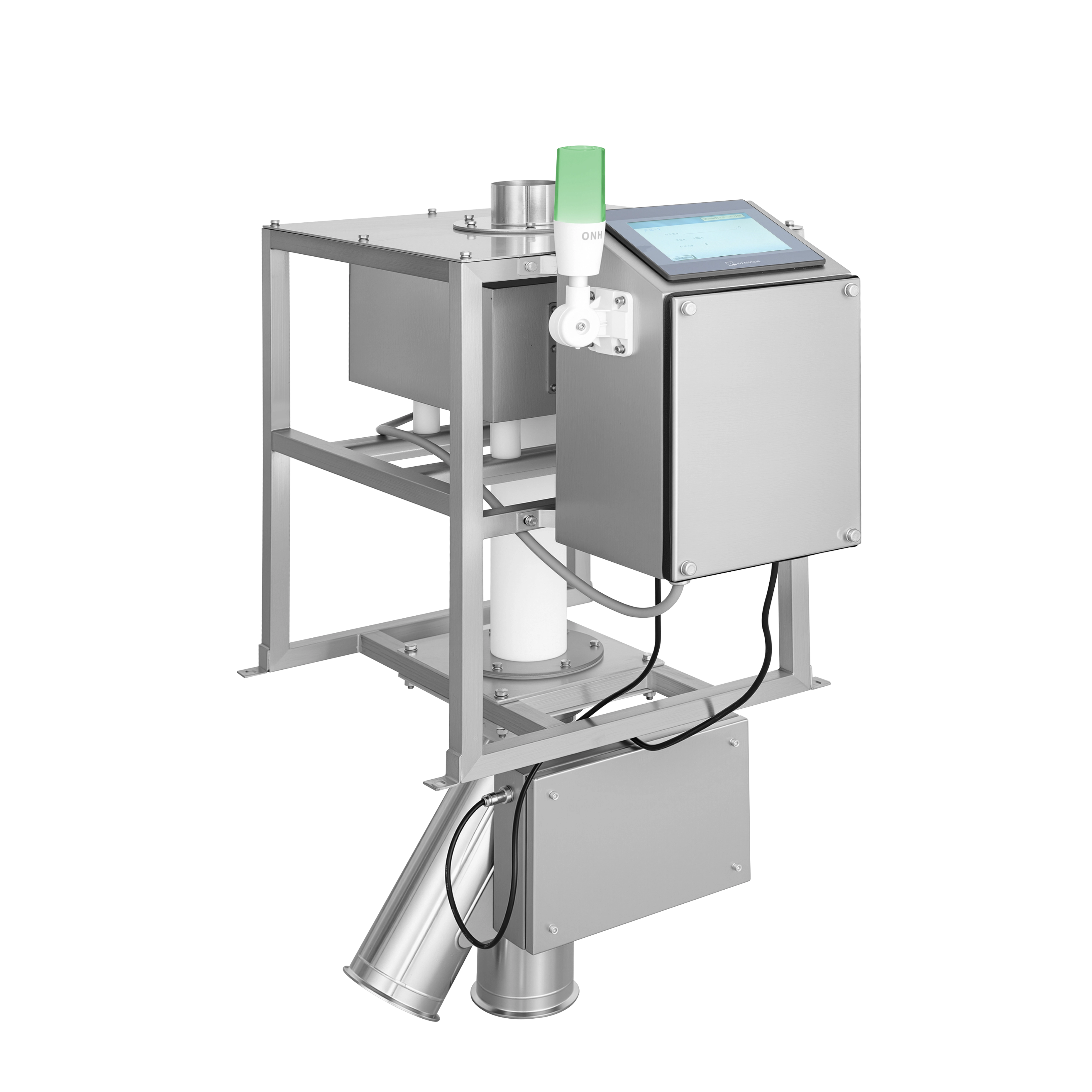

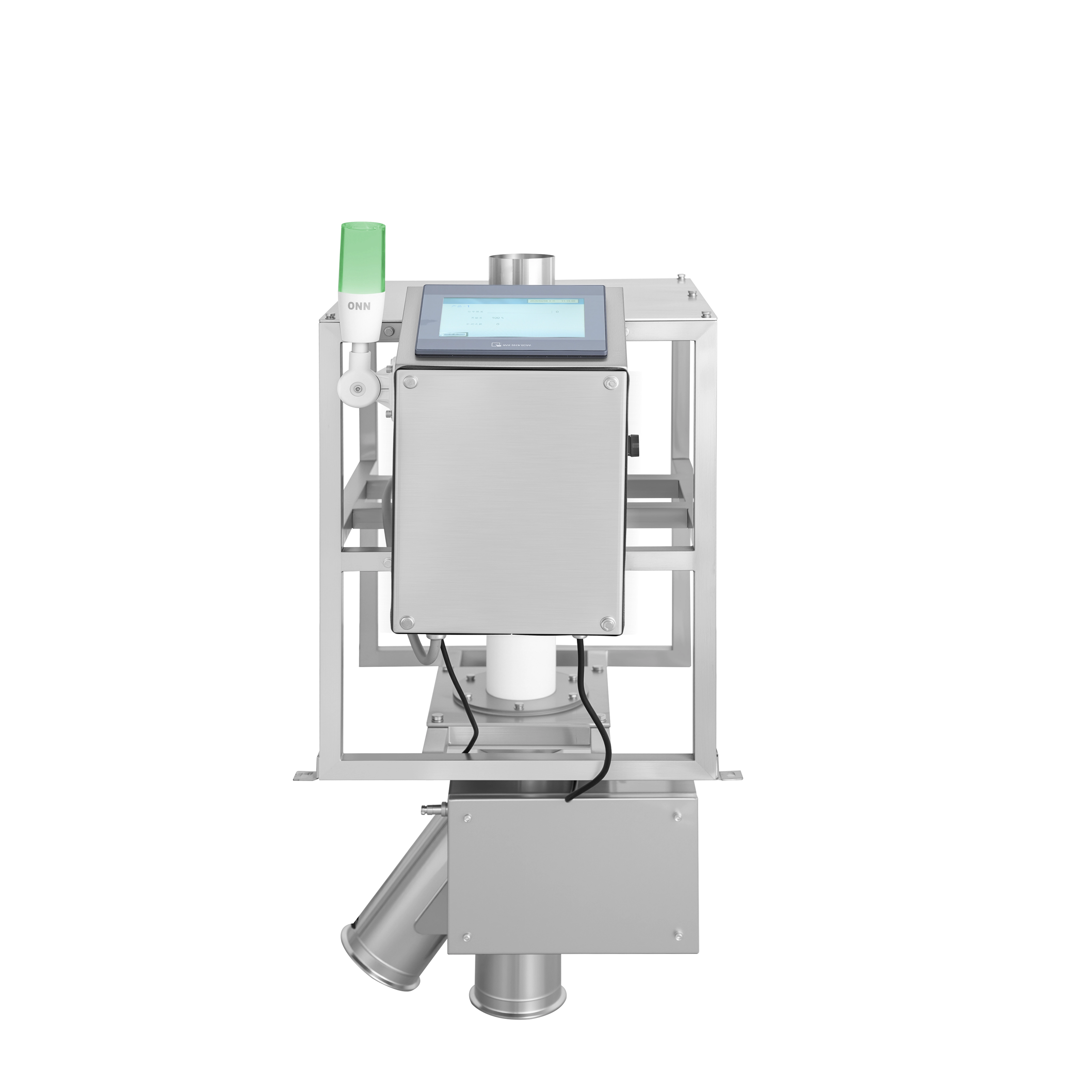

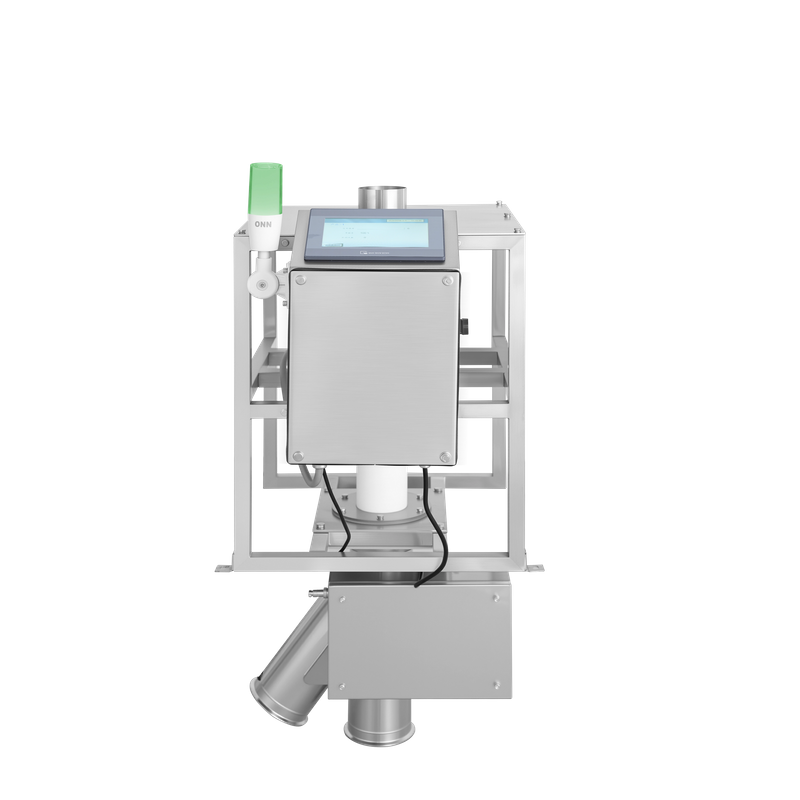

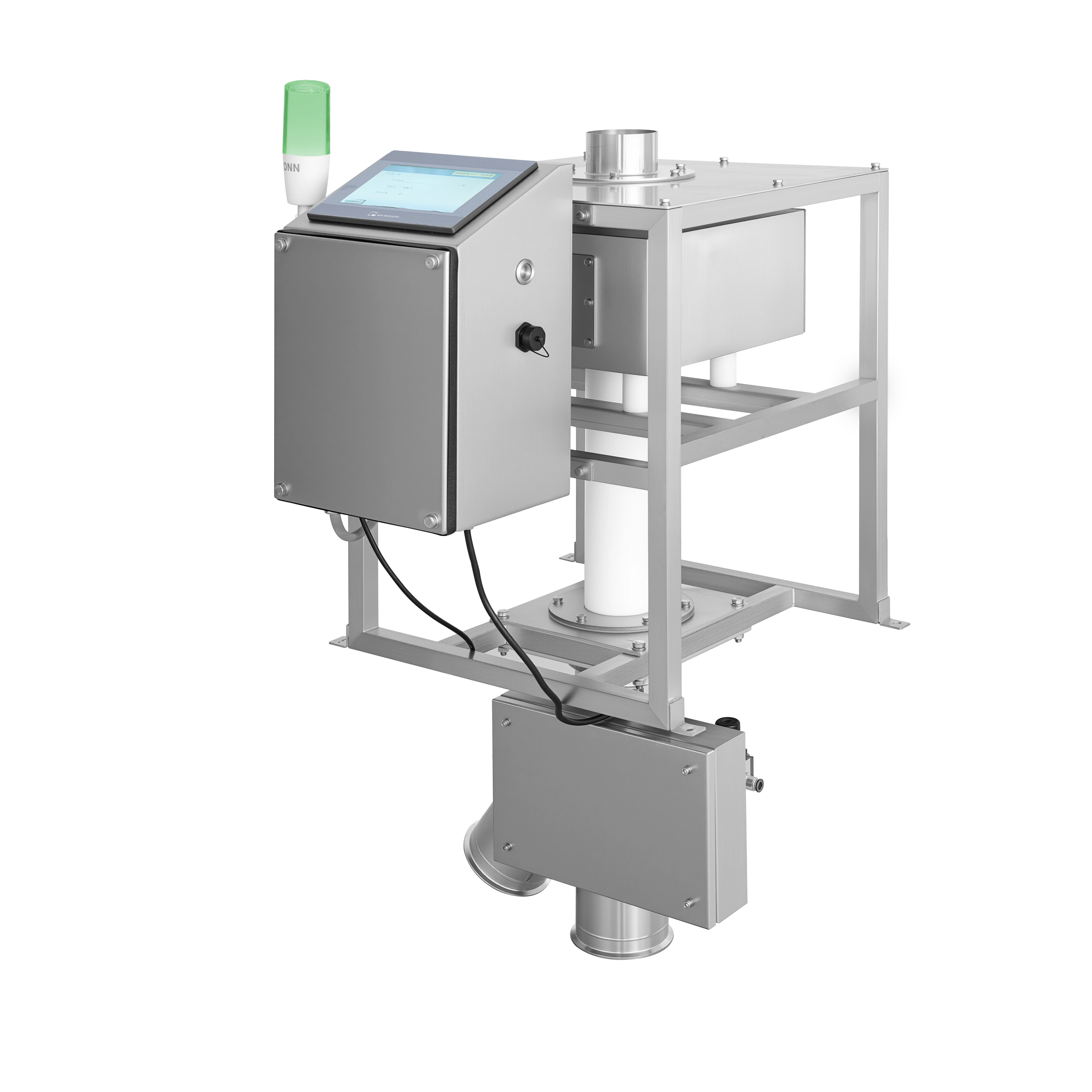

COSO PEC2500K2 intelligent high-precision metal separator utilizes next-generation digital intelligent technology to achieve
the enhancement of digitization and intelligence of signal processing and multidimensional detection functions. It is metal
contamination detection and separation equipment, offering stable performance, high-precision detection and strong
anti-interference capability
Product Function
Detects metal contaminants such as ferrous, copper, aluminum, stainless steel mixed in granules or powders.
Product Demo Video—Metal Contamination Detection
This video shows how the metal separator detects metal contaminants in materials.
In the first pass, the qualified material passes through the system with no contaminants detected. In the second pass, a metal piece is intentionally added to the material to simulate metal contamination. The system detects the metal, triggers an alarm, and immediately rejects the contaminated material from the material.
Product Features
With unique sensor manufacturing technology and multidimensional digital signal processing technology and algorithm, and offers high-precision detection and stable performance.
Equipped with USB, RS485, and Ethernet ports, the system supports data export, networking, and remote control.
Supports multidimensional self-learning of product effect, environment interference, and material conveying speed, equipped with automatic memory of 500 product parameters.
Equipped with 7-inch touchscreen interface, supports multi-level permission management and multi-language user interface.
Automatically stores and exports up to 500,000 operation & detection logs, and alarm records within 90 days for easy counting, querying, and tracing of data.
Offers multiple inlet diameter options, meeting different throughput requirements for material handling.
Adaptive power supply 110–240 V (±10%), 50–60 Hz.
Product Specification
Model | Inner Pipe Diameter （Фmm） | Sensitivity （Фmm） | Max.Throughput(L/h) | Air Compression | Defectives Eliminated Time | Material Temperature | |
Fe | SUS | ||||||
PEC2005K2-30 | 20 | 0.20 | 0.26 | 200 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
PEC2005K2-40 | 30 | 0.23 | 0.28 | 450 | |||
PEC2005K2-50 | 40 | 0.25 | 0.30 | 1,500 | |||
PEC2005K2-60 | 50 | 0.28 | 0.42 | 2,300 | |||
PEC2005K2-70 | 60 | 0.30 | 0.53 | 3,400 | |||
PEC2005K2-100 | 80 | 0.45 | 0.80 | 6,300 | |||
PEC2005K2-120 | 100 | 0.5 | 0.9 | 11,000 | |||
PEC2005K2-150 | 130 | 0.63 | 1.08 | 19,000 | |||
PEC2005K2-200 | 180 | 0.75 | 1.28 | 36,000 | |||
Note: The listed sensitivity values are obtained with test blocks passing through the detection pipe (uner no-load conditions). Actual sensitivity may vary depending on product characteristics or operating environment; always refer to the actual sensitivity. Technology upgrades may improve sensitivity, consult sales for the latest data. The listed models are selected standard configurations; other configurations are available; contact sales for details.
