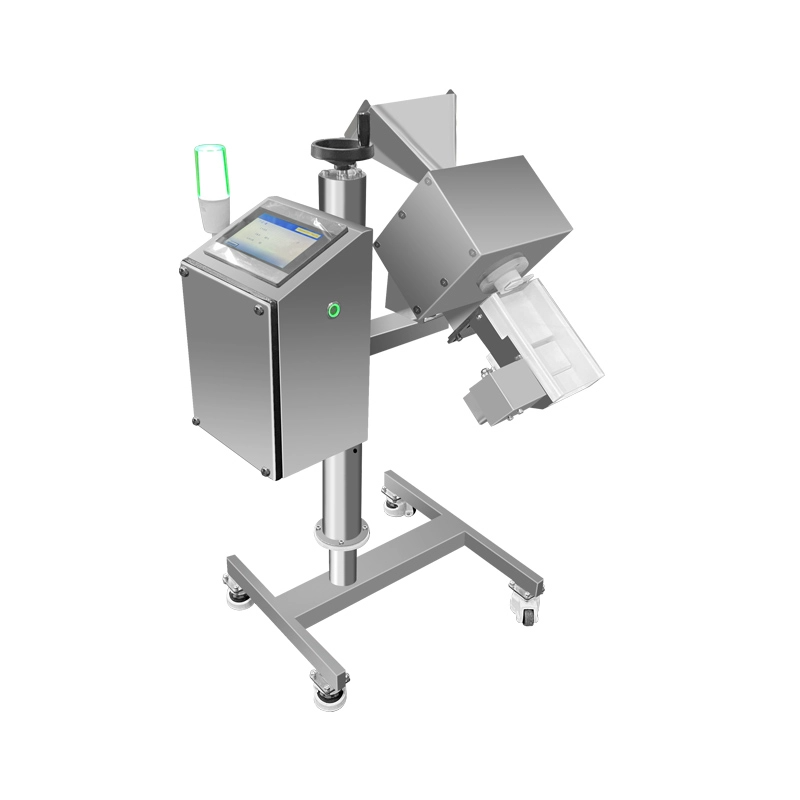

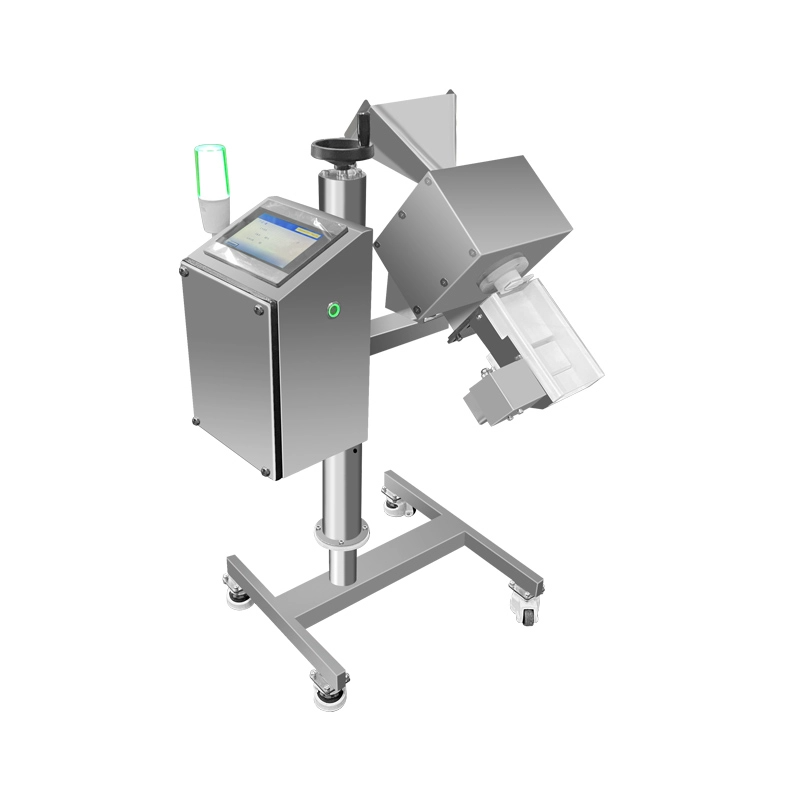

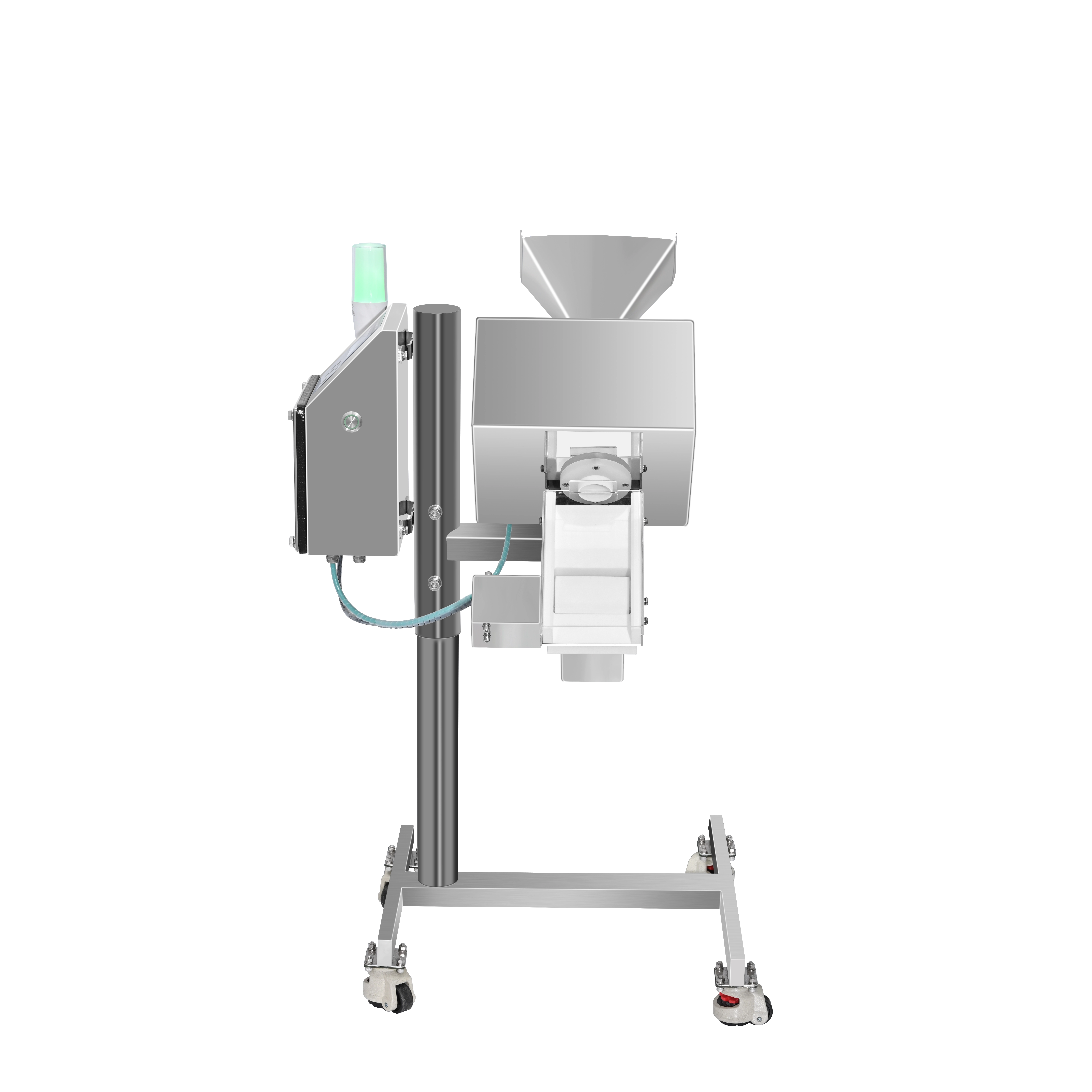

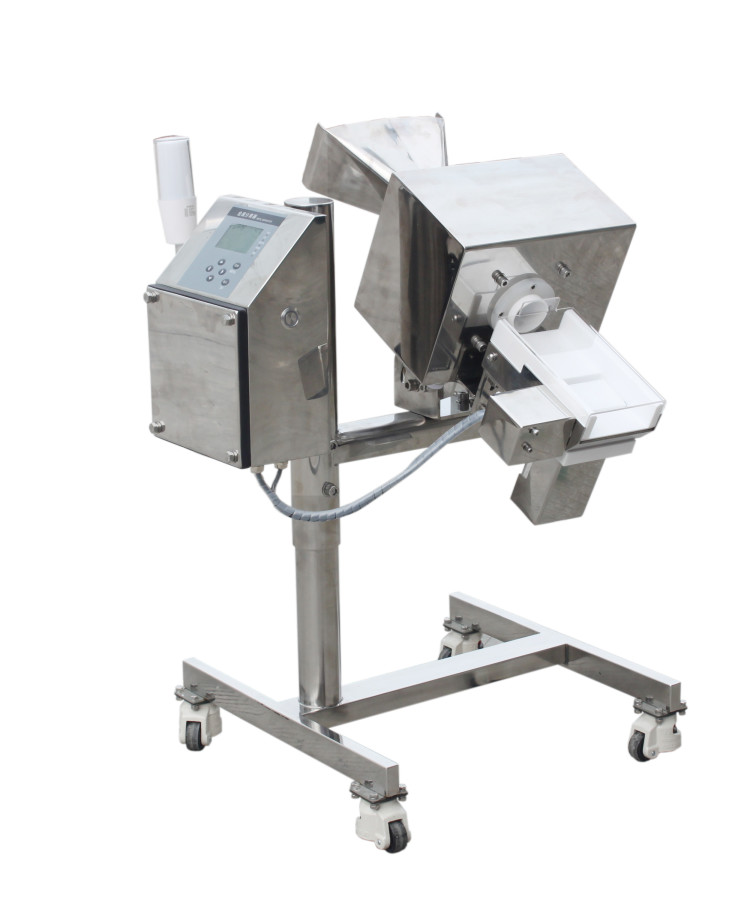

PEC2005G4 Adjustable Pharmaceutical Metal Separator With Alarm

Product Description

The coso PEC2005G4 pharmaceutical metal separator is a specialized metal contamination detection and separation machine engineered specifically for the pharmaceutical and health product industries. Designed to meet strict hygiene and safety standards, this equipment delivers precise detection capabilities to identify and remove minute metal particles from production lines. By integrating this reliable detection system, pharmaceutical manufacturers can significantly reduce the risk of product contamination, ensure regulatory compliance, and protect brand reputation while maintaining continuous production efficiency.

Core Detection Functions

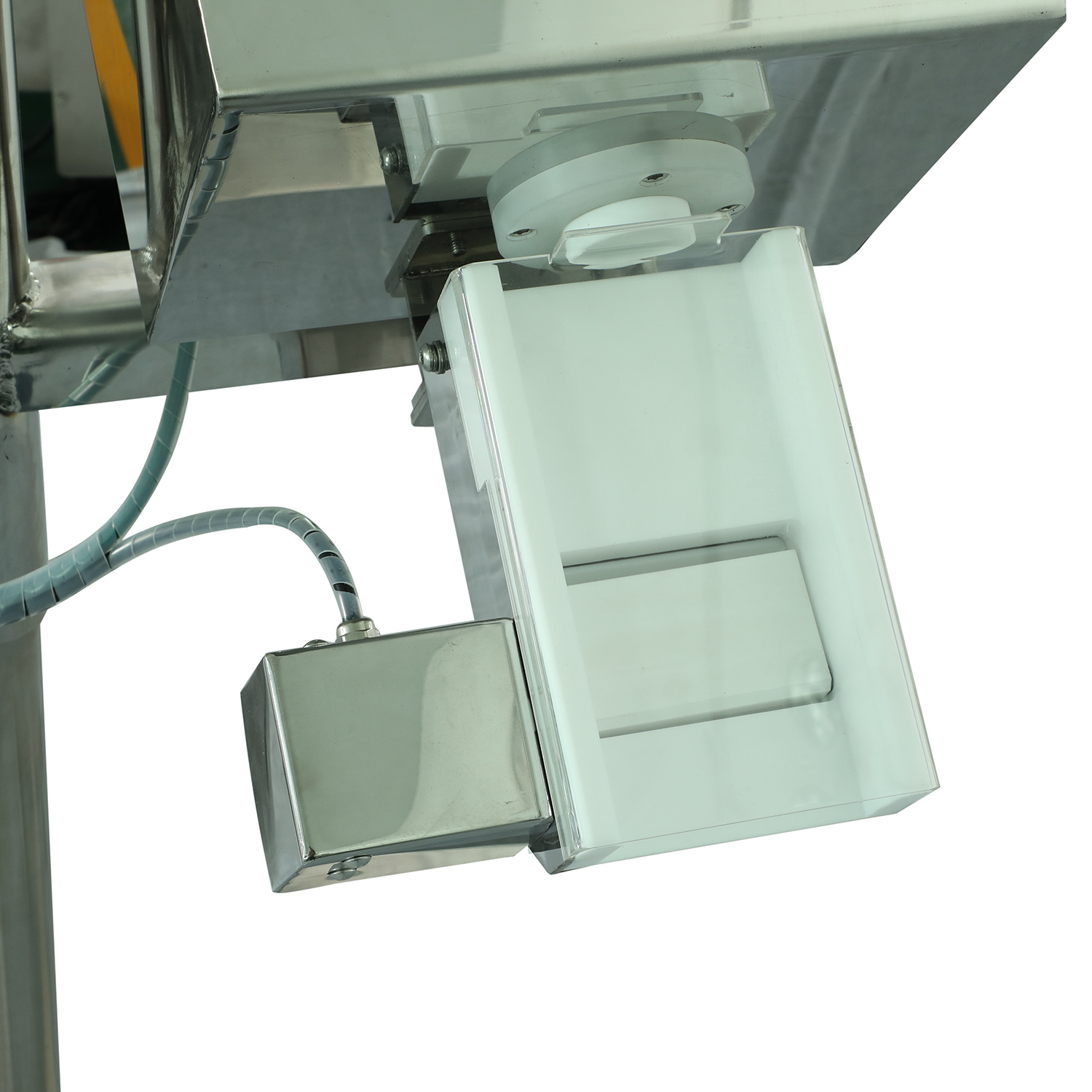

This system effectively detects and separates a wide range of metal contaminants, including ferrous, copper, aluminum, and stainless steel. It is highly suitable for processing various pharmaceutical forms such as pills, tablets, capsules, and granules. The fast-acting rejection mechanism ensures that contaminated products are instantly isolated from the clean product stream without disrupting the overall manufacturing workflow, providing a secure barrier against foreign materials.

Intelligent Features & Mechanical Advantages

• Intelligent Self-Learning Technology: Supports multidimensional self-learning of product effect, environmental interference, and material conveying speed. This minimizes false alarms and ensures stable detection accuracy even when processing complex pharmaceutical formulations.

• Advanced Data Management & Connectivity: Equipped with USB, RS485, and Ethernet ports, the system supports efficient data export, factory networking, and remote control, facilitating integration into modern automated production facilities.

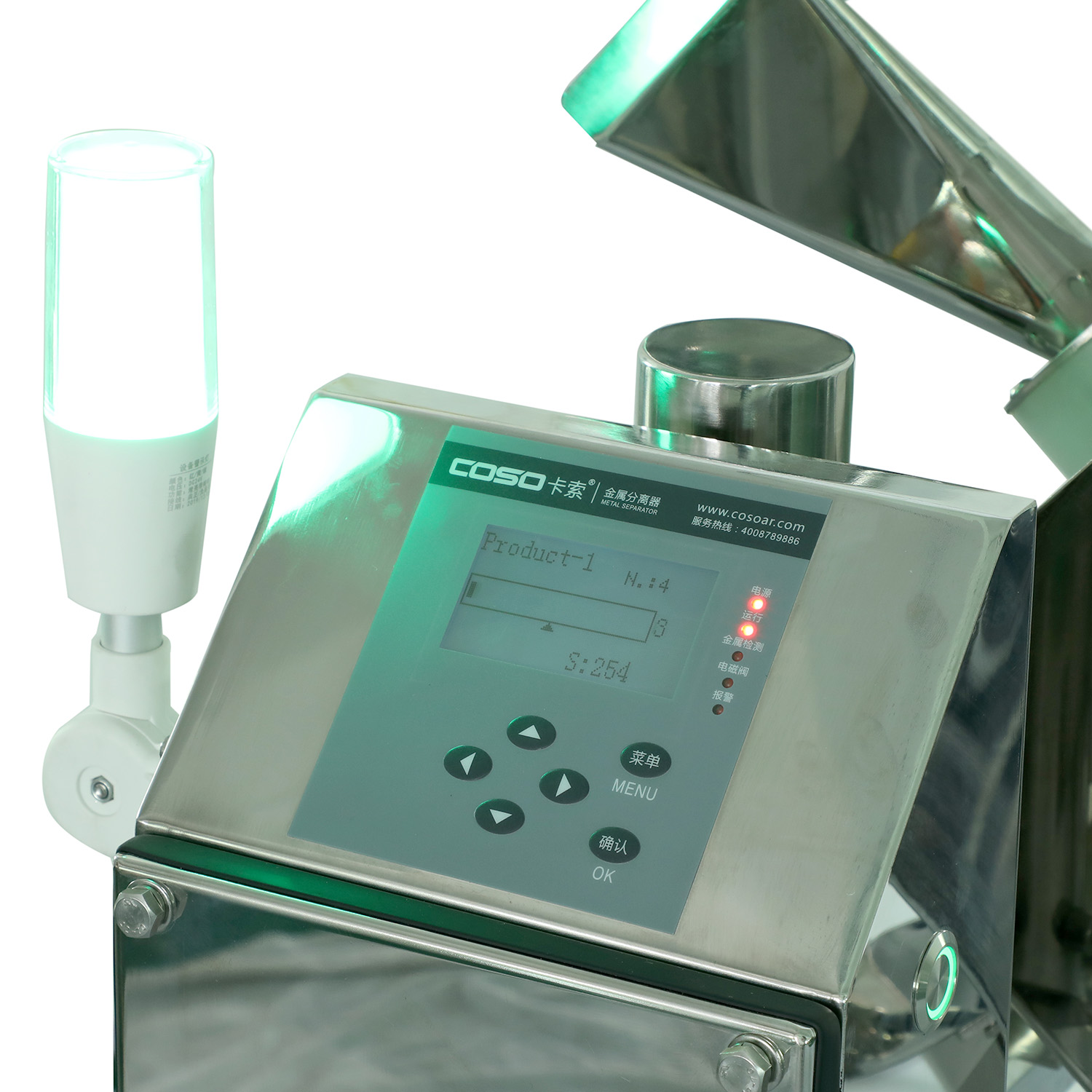

• User-Friendly Operation: Equipped with a 7-inch touchscreen, it supports multi-level permission management and a multi-language user interface, ensuring secure access control and straightforward operation for diverse production teams.

• Massive Log Storage for Traceability: Automatically stores and exports up to 500,000 operation and detection logs, along with alarm records within a 90-day period. This extensive memory capacity allows for easy counting, querying, and tracing of data during quality audits.

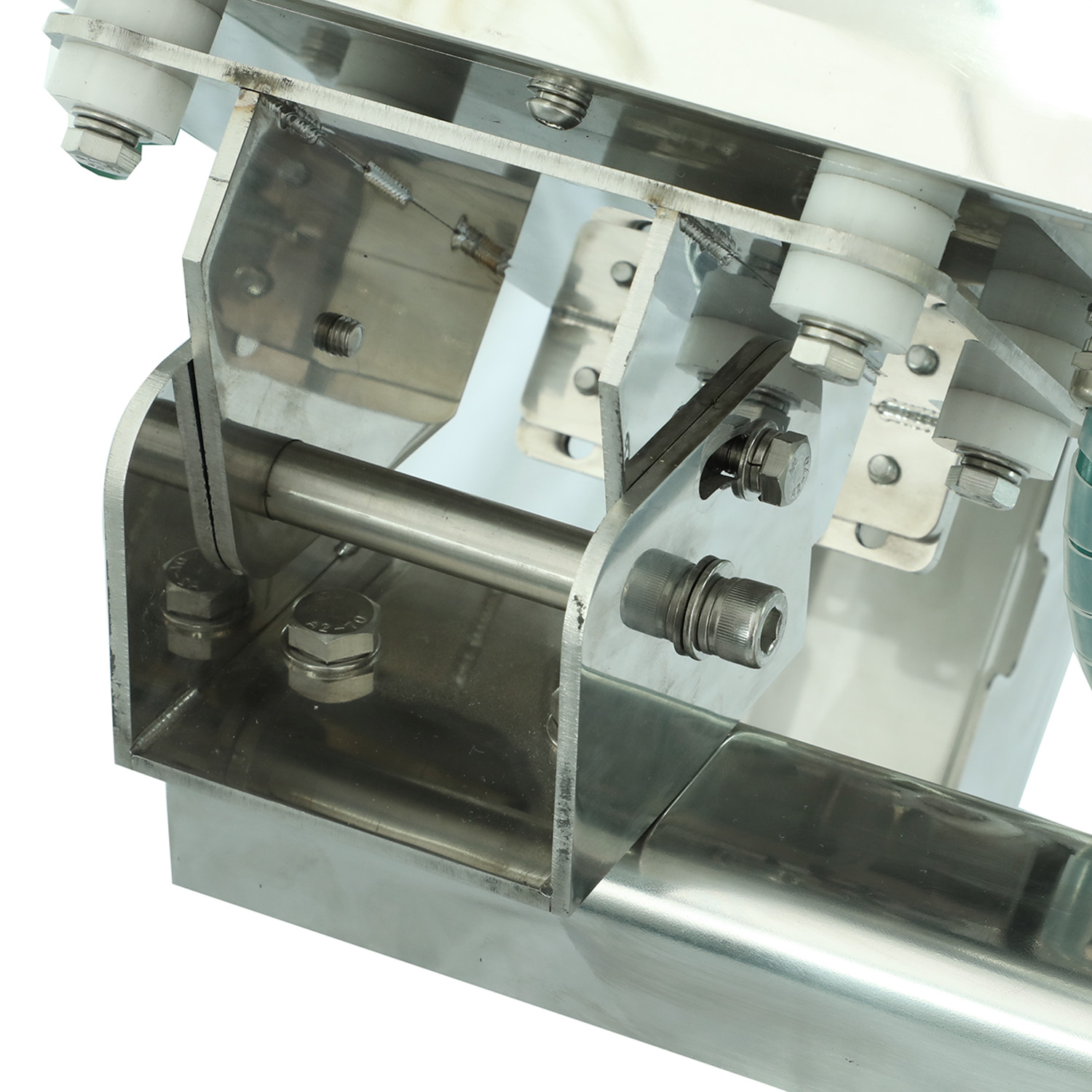

• Flexible & Space-Saving Design: Utilizes a crank-type screw adjustable frame. Both the inlet height and the angle of the material passing pipe can be manually adjusted. This adaptability saves valuable floor space and ensures compatibility with various pharmaceutical equipment (e.g., tablet presses, tablet dedusters, capsule filler, and polishing machines).

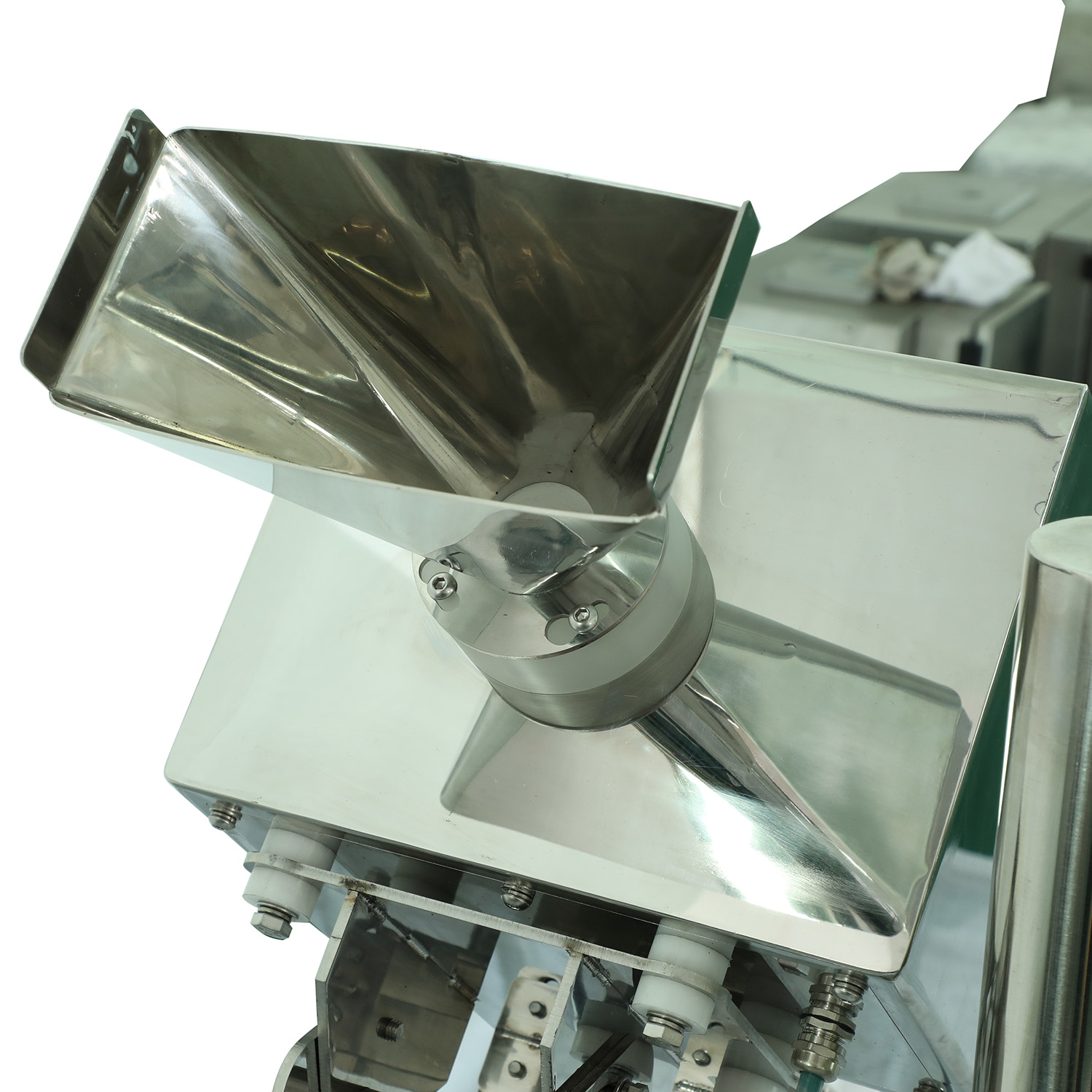

• Sanitary Construction: All product-contact parts are made of 316 mirror-finish stainless steel and food-grade Teflon. This hygienic design strictly meets pharmaceutical industry standards, preventing cross-contamination and allowing for easy cleaning.

• Global Power Compatibility: Features an adaptive power supply of 110-240V (±10%), 50-60 Hz, making it suitable for deployment in various international manufacturing facilities without requiring external transformers.

Product Specification

Note:

The listed sensitivity values are obtained with test blocks passing through the detection pipe (under no-load conditions). Actual sensitivity may vary depending on product characteristics or operating environment; always refer to the actual sensitivity. Technology upgrades may improve sensitivity, consult sales for the latest data. The listed models are selected standard configurations; other configurations are available; contact sales for details.
