PEC2005S
cosoar
Product Description
Metal Separator for Slow Falling Material Columns can be directly installed at the feeding inlet of extruders, injection molding and blow molding machines, to detect metals from materials in full tubes slow moving. Metal separator can effectively prevent the nozzle and hot channel of molds on injection molding machines and extruders from being blocked by metal contaminants (ferrous, copper, alumnium, stainless steel), as well as damage to the barrel screw or scratched molds, thereby avoiding downtime caused by machine or mold maintenance, improving production efficiency, and preventing product quality problems caused by metal impurities mixed in injection molded parts. It is widely used for detecting slow-moving granular materials (particles <6 mm) in full pipes, suitable for the plastics industry.

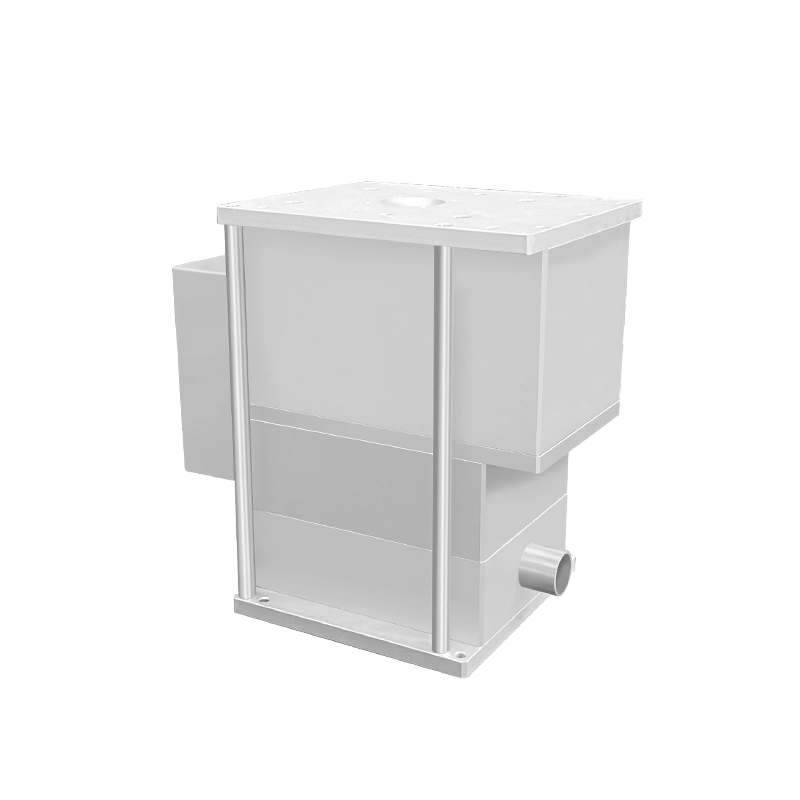

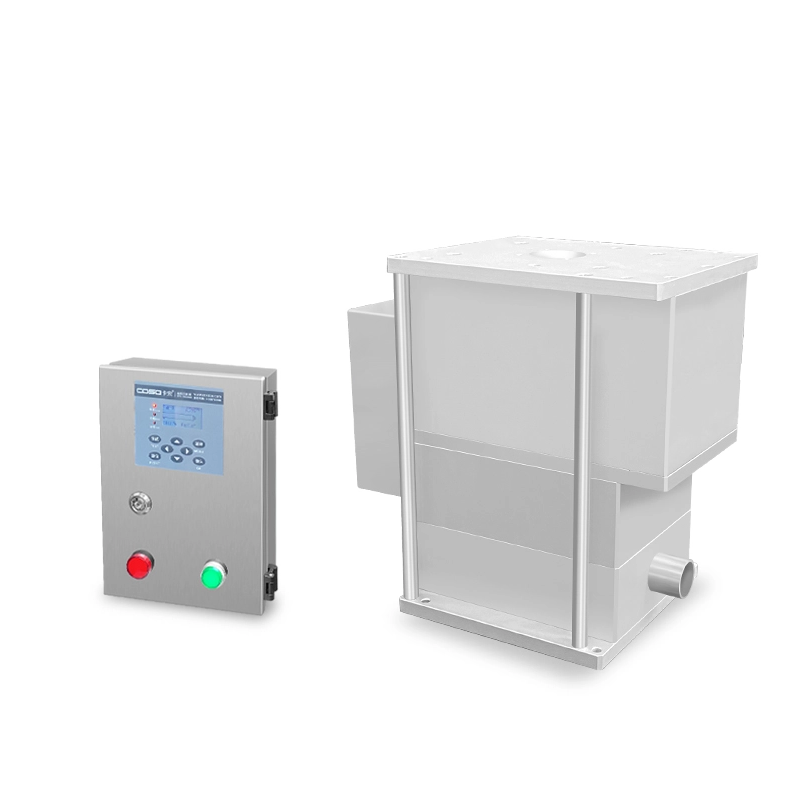

COSO PEC2005S metal separator for material columns is a metal contamination detection and separation device directly installed at the feeding inlet of injection molding machines, extruders, and blow molding machines to detect metal contaminants in slow material flow in full tubes. It effectively prevents damage to extruder screws, clogging of hot runners and injection nozzles, mold scratches, and contamination of molded parts by metal impurities.Product Details
Product Features
Utilizes a unique detection algorithm for slow material flow in full tubes to ensure high detection sensitivity.
Utilizes a robust and compact design with minimal space requirements and excellent vibration resistance, designed for direct installation at the feeding inlet of extruders, injection molding machines, and blow molding machines.
The special vacuum suction and rejection mechanism ensures rapid and accurate removal of metal-contaminated material.
Equipped with USB, RS485, and Ethernet ports, the system supports data export, networking, and remote control.
Supports multidimensional self-learning of product effect, environment interference, and material conveying speed, with automatic memory of 300 product parameters.
Supports multi-level permission management and multi-language user interface.
Automatically stores and exports up to 10,000 operation & detection logs, and alarm records for easy counting, querying, and tracing of data.
Offers multiple inlet diameter options, meeting different throughput requirements for material handling.
Adaptive power supply 110–240 V (±10%), 50–60 Hz.
Product Specification
| Model | Inner Pipe Diameter (Ф mm) | Sensitivity (Ф mm) | Air Compression | Defectives Eliminated Time | Material Temperature | |
| Fe | SUS | |||||
| PEC2005S-30 | 20 | 0.20 | 0.26 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-40 | 30 | 0.23 | 0.28 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-50 | 40 | 0.25 | 0.30 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-60 | 50 | 0.28 | 0.42 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-70 | 60 | 0.30 | 0.53 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-100 | 80 | 0.45 | 0.80 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-120 | 100 | 0.5 | 0.9 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-150 | 130 | 0.63 | 1.08 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
| PEC2005S-200 | 180 | 0.75 | 1.28 | 0.3-0.5 MPa | 0.05-60 s | ≤60℃ |
Note: The listed sensitivity values are obtained with test blocks passing through the detection pipe (under no-load conditions). Actual sensitivity may vary depending on product characteristics or operating environment; always refer to the actual sensitivity. Technology upgrades may improve sensitivity, consult sales for the latest data. The listed models are selected standard configurations; other configurations are available; contact sales for details.
