PEC2005F4
cosoar

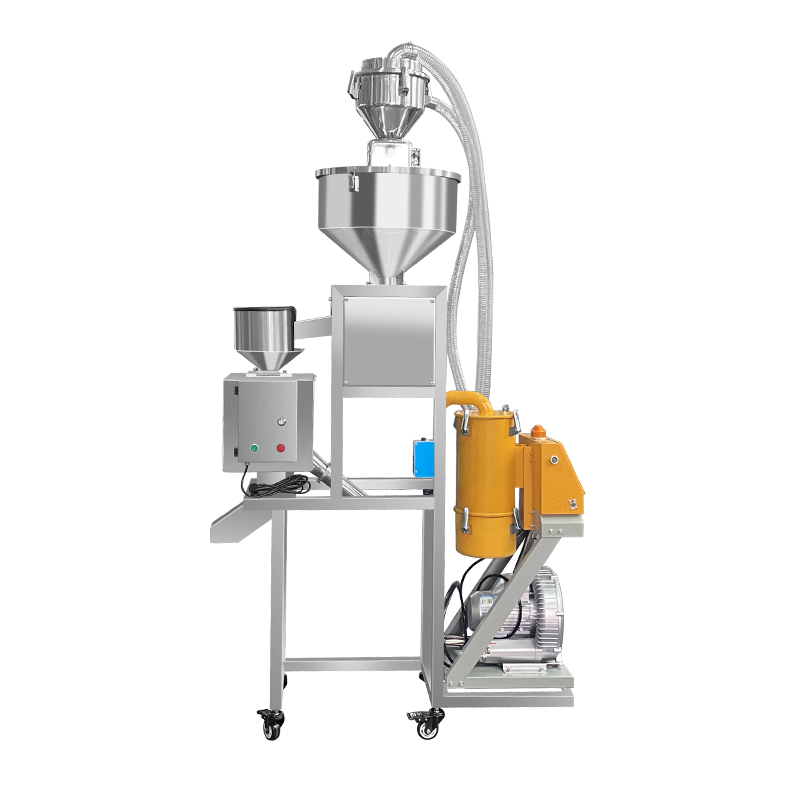

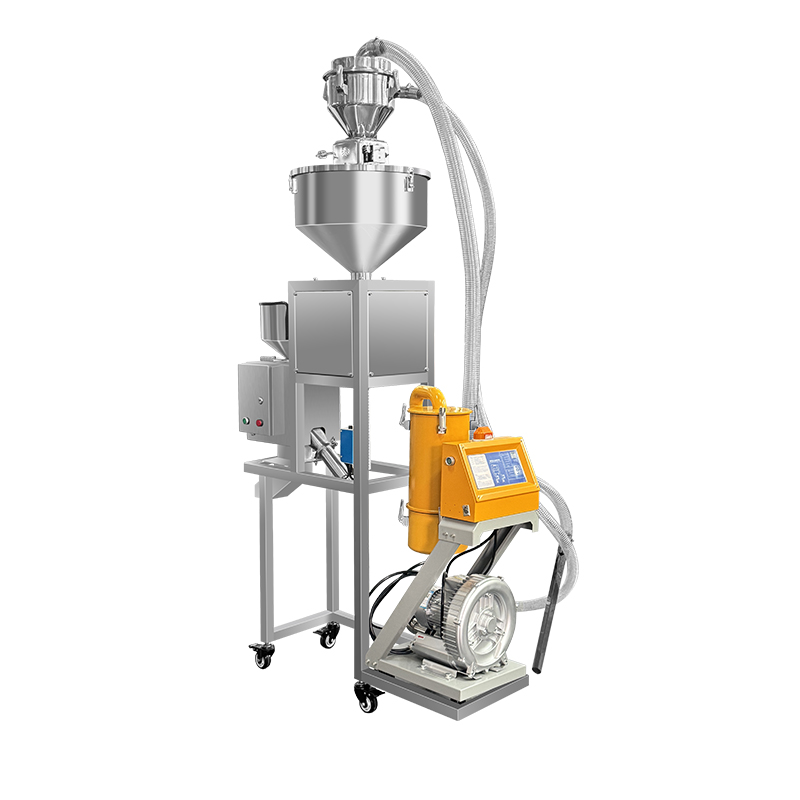

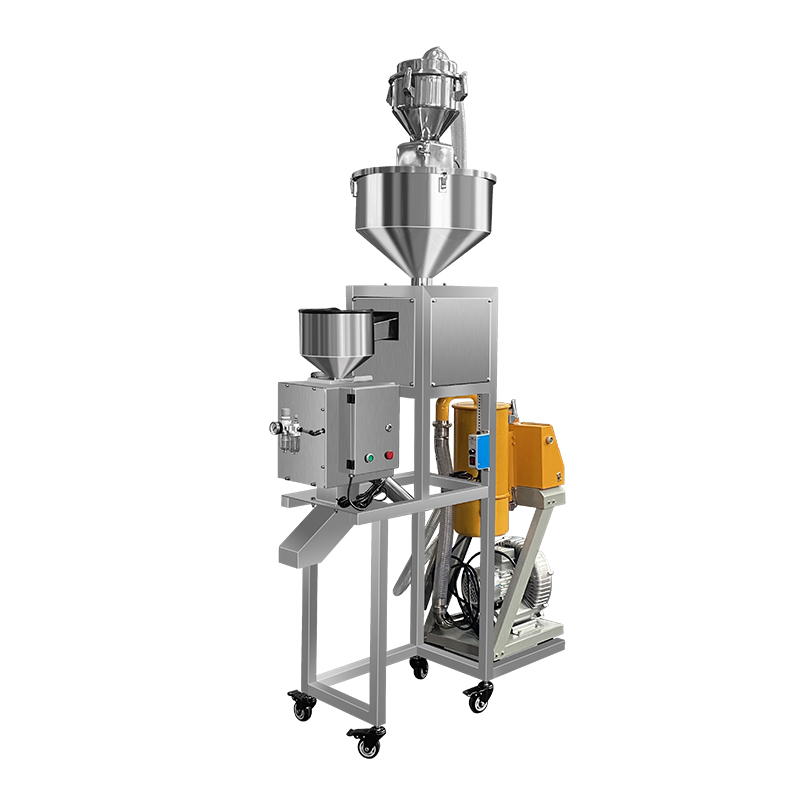

Engineered for high-throughput processing facilities, this metal separator with automatic suction and vibration feeding is suitable for recycled plastics, chemical materials, and other bulk granular commodities. The integration of advanced pneumatic and mechanical transport mechanisms drastically improves operational efficiency. Specifically, the automatic suction feeding system enables unmanned material loading, eliminating the physical strain and continuous oversight historically required by manual loading protocols. As the bulk materials enter the system, the vibrating feeder controls feeding flow with precise, rhythmic consistency, ensuring an even distribution of granules across the detection zone. You can hear the steady, low-decibel hum of the vibratory tray as it optimizes the throughput. Engineered with high-sensitivity electromagnetic coils, it automatically detect and separate metal contaminants (ferrous, iron, copper, aluminum, stainless steel, etc.) in plastic raw and recycled materials. By capturing these microscopic metallic impurities before they reach sensitive downstream processing equipment like extruders or injection molding machines, this system actively prevents costly machinery damage and minimizes unexpected production halts. The result is a highly purified end-product that consistently meets stringent industry standards for material integrity.

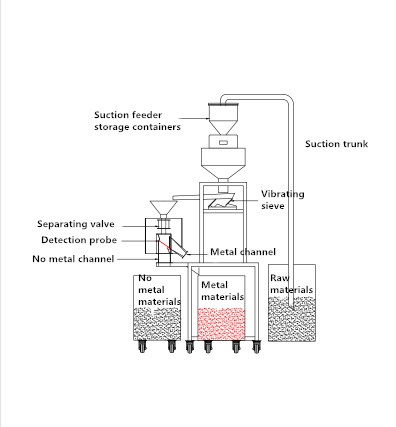

The physical architecture of this separation equipment is purposefully designed for resilience and spatial efficiency on crowded production floors. Encased in a heavy-duty, cool-to-the-touch metallic housing, the core structure securely integrates the vacuum loading unit directly above the vibratory feeding tray. This vertical alignment allows gravity to assist the material flow once the suction cycle completes, significantly reducing the overall footprint of the machinery. Inside the primary detection chamber, tightly wound electromagnetic coils are shielded against environmental interference, ensuring stable performance even in facilities with fluctuating temperatures or airborne dust. The rejection mechanism features a rapid-response mechanical flap, precision-machined to create a tight seal that prevents material leakage during normal operation. When an impurity is identified, the flap actuates with a sharp, distinct click, instantly diverting the contaminated fraction into a separate collection bin while allowing the purified stream to continue uninterrupted. This structural synergy guarantees long-term mechanical reliability under continuous, high-volume operational demands.
The automatic suction feeding system enables unmanned material loading, and save the labor cost of manual feeding. By utilizing powerful vacuum technology, the system autonomously draws bulk materials from storage bins directly into the separator. This continuous, automated intake drastically reduces the need for dedicated personnel to physically lift and pour heavy bags of resin or chemical powders, allowing facility managers to reallocate workforce resources to more critical operational tasks.
The suction feeder controls feeding flow in perfect synchronization with the vibratory tray. Instead of overwhelming the detection aperture with sudden surges of material, the vibratory action flattens and spreads the granules into a uniform, single-layer stream. This controlled presentation is crucial for maintaining maximum sensitivity, as it prevents overlapping materials from masking the presence of minute metallic particles.
Inner pipeline diameter can be customized to match the specific volumetric requirements of your existing pneumatic conveying lines. Whether processing lightweight plastic flakes or dense chemical pellets, the inlet and outlet dimensions are tailored to ensure a secure, airtight connection. This adaptability minimizes installation downtime and eliminates the need for complex, aftermarket transition adapters.
Equipped with an ultra-fast pneumatic rejection flap, the system isolates and expels contaminants with pinpoint accuracy. The rapid actuation ensures that only the absolute minimum amount of uncontaminated material is rejected alongside the metal particle. This precise separation significantly lowers material waste, directly improving the overall yield and profitability of the processing run without interrupting the main material flow.
Designed to excel in rigorous industrial environments, this automated separation system is a proven asset across diverse processing sectors. In the realm of recycled plastics, it effectively purifies regrind and post-consumer resins, ensuring that subsequent extrusion processes yield flawless, blemish-free products. For chemical material handling, the enclosed suction and separation loop prevents hazardous dust from escaping into the facility atmosphere, maintaining a clean and controlled workspace. The integration of premium internal components guarantees consistent sensitivity even amidst the vibrations and pressure variations typical of heavy manufacturing plants. Supported by rigorous performance testing and documented field successes, this equipment provides procurement teams and facility engineers with a highly reliable, low-maintenance solution for safeguarding product purity and protecting vital downstream machinery investments.
