PEC2005F2
COSO

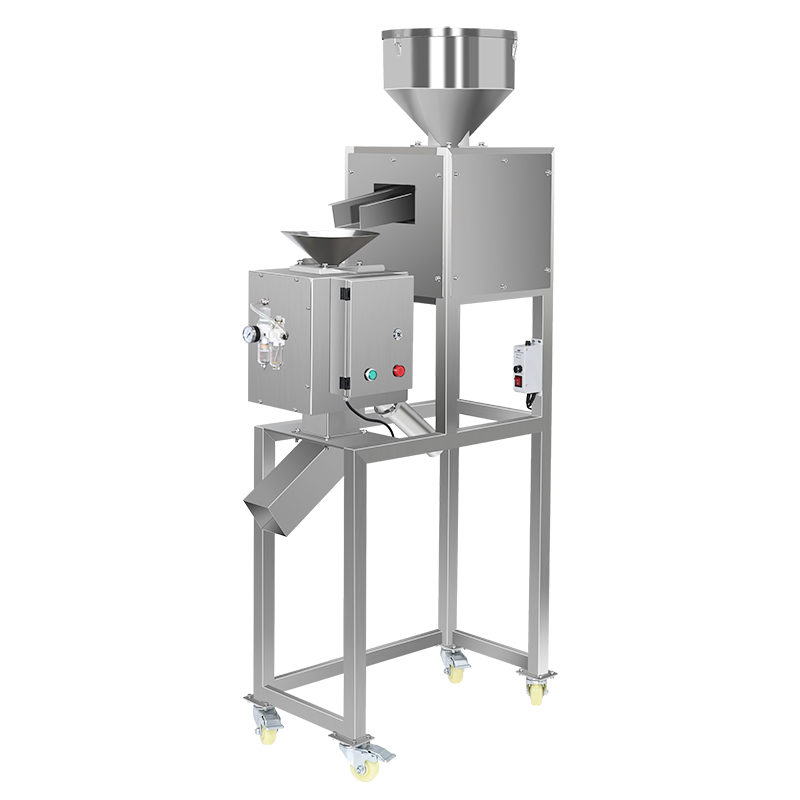

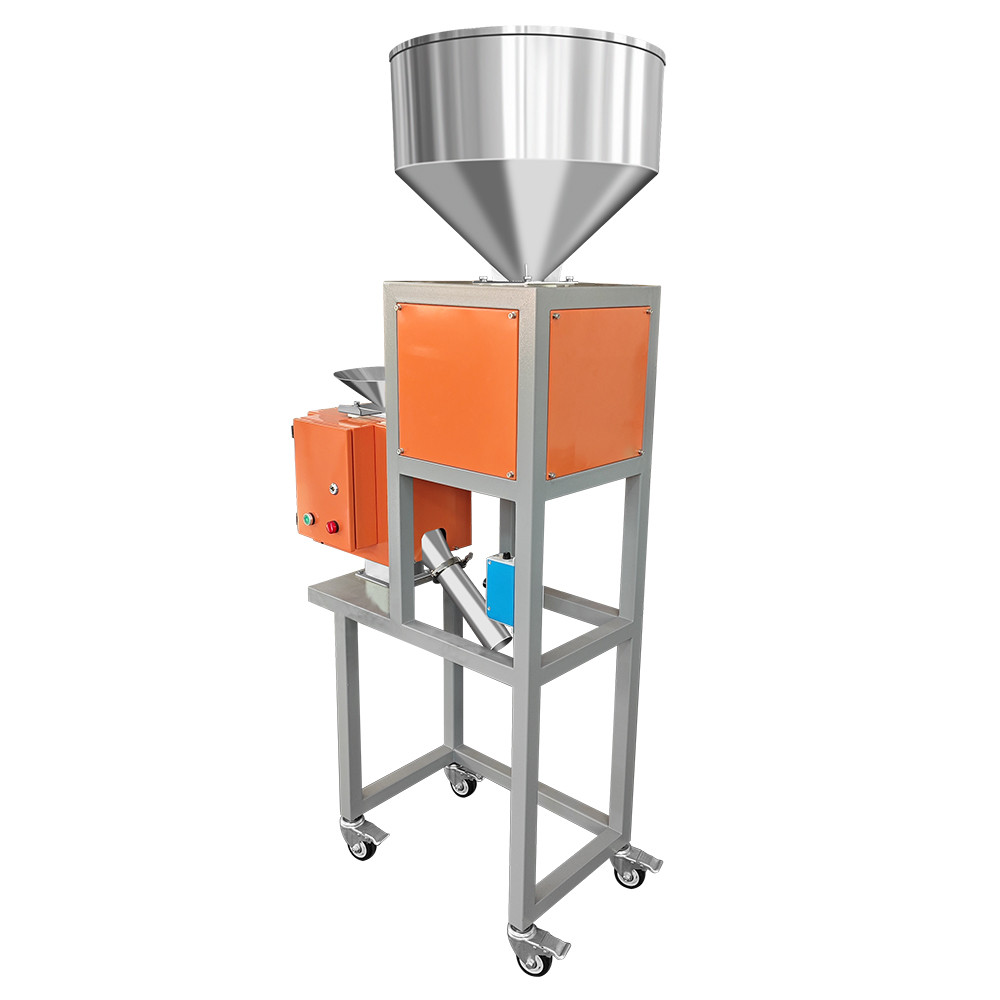

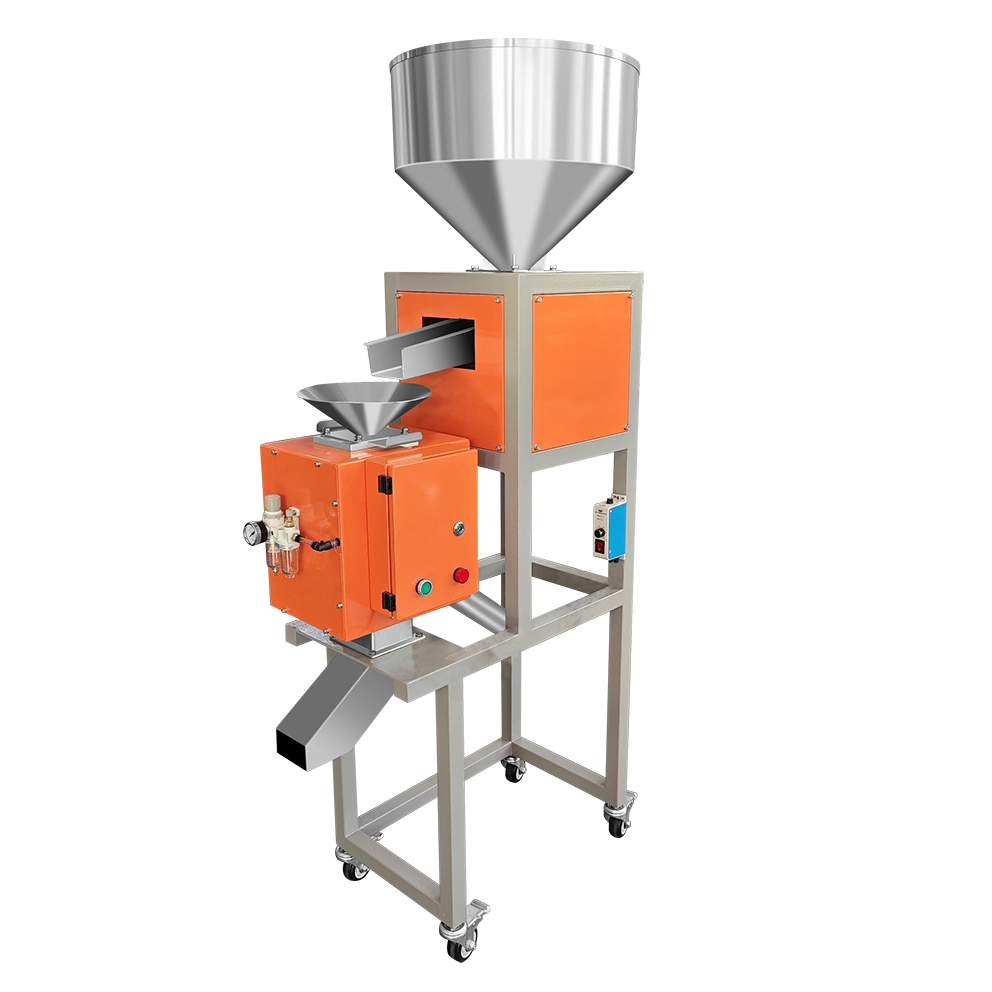

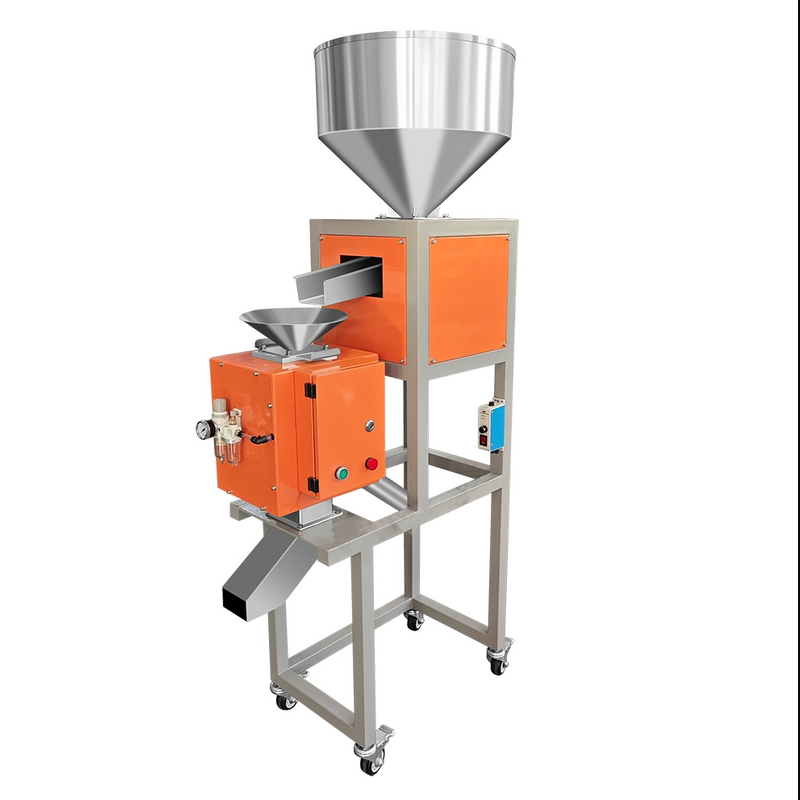

This metal separator with vibration feeder is engineered to precisely control the material flow while delivering exceptional contaminant detection. It is widely used in plastic, food, chemical industries, which can separate ferrous, iron, copper, aluminum, stainless steel with remarkable accuracy. Utilizing high-frequency multi-frequency synchronization technology, the system acts as an impenetrable safeguard, identifying minute metallic fragments as small as 0.2mm.
By maintaining a steady, regulated feed rate, the equipment ensures that bulk raw materials pass through the sensing zone evenly, eliminating the risk of un-scanned clusters. Whether processing virgin resin or recycled flakes, this system guarantees absolute material purity before the product moves to the next critical stage of production. The steady hum of the vibratory feeder and the precise sorting mechanism work in perfect harmony to protect your operational efficiency.

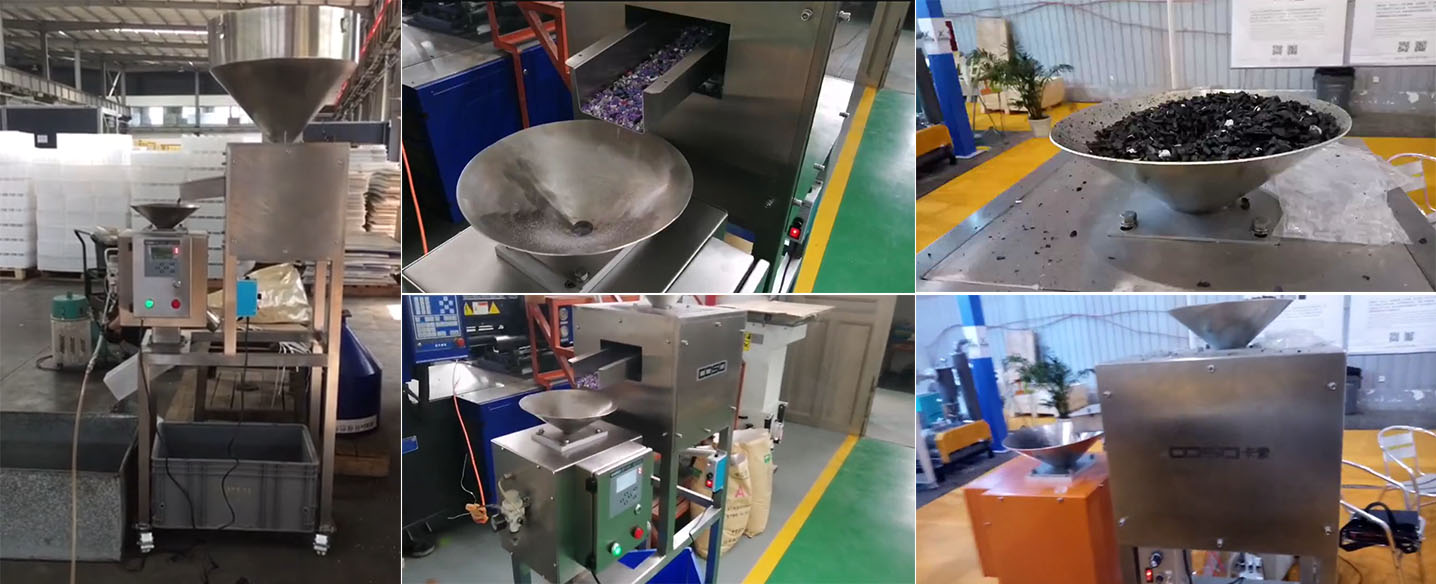

This video demonstrates the COSO vibratory feeder metal separator, a specialized solution for plastic granules, pellets. Unlike standard gravity-fall units, this system integrates an adjustable vibratory tray to control the flow speed. As seen in the footage, the plastic granules cascade in a uniform, controlled curtain rather than a dense, unpredictable mass.
This deliberate pacing prevents the frequent false rejects and severe equipment blockages that typically occur when a large volume of bulk material overwhelms a standard sensor. By tuning the vibration frequency to match the specific bulk density and flow characteristics of the plastic or food materials, operators can achieve an optimal balance between high throughput and microscopic detection accuracy. The steady mechanical vibration of the tray translates directly into a smooth, uninterrupted processing line, ensuring every single pellet is thoroughly scanned for hidden impurities.
The operational value of this advanced separation system is most evident in demanding environments such as plastic granulation, crushing recycling, and bulk food processing facilities. In these sectors, raw materials are frequently contaminated with residual metallic shavings, broken wire, or stray nuts and bolts. If these hazardous impurities are allowed to pass through, they can cause catastrophic, irreversible damage to downstream processing equipment, including expensive extruder screws, precision injection molds, and granulator knives.
By installing this free-fall separator directly into the material handling pipeline, facility managers establish a critical line of defense. The system not only protects costly capital machinery from sudden mechanical failures but also eliminates the risk of product recalls associated with contaminated batches. It seamlessly adapts to existing infrastructure, providing immediate returns through reduced maintenance downtime and consistently pure end-products.

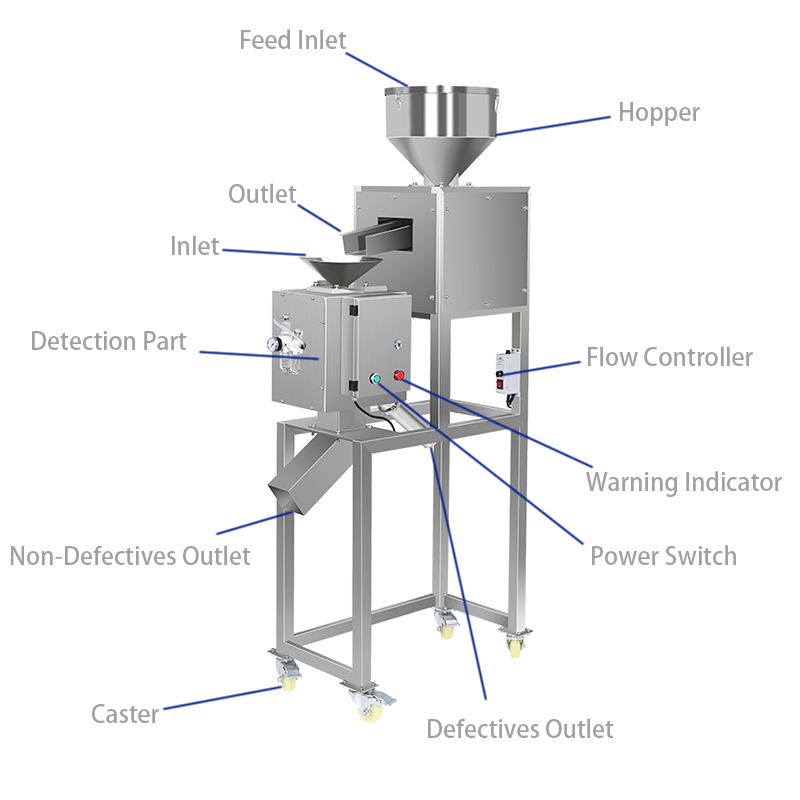

Engineered for maximum equipment adaptability and convenient installation, the separator features a highly compact, free-fall architectural design. It can be rapidly integrated into existing injection molding machines, extruders, and complex pneumatic conveying pipelines with minimal structural modifications. Available in a variety of aperture sizes, the unit accommodates diverse production volumes and pipe diameters, ensuring a perfect fit for any processing setup.
At the heart of its rejection system is a fully automatic, high-speed pneumatic flap. When a ferrous, iron, copper, aluminum, or stainless steel particle is detected, the flap actuates in mere milliseconds. This rapid response isolates and diverts the contaminated segment of the material stream into a separate reject bin. Crucially, this millisecond separation occurs without halting the production line, maximizing the retention of good, uncontaminated plastic pellets and optimizing the overall yield of the manufacturing process.
Feed flow rate and material volume can be precisely controlled through the adjustable vibratory pan, ensuring bulk plastics or food granules descend evenly for flawless, high-resolution scanning.
When there is a large amount of material, the intelligent buffering prevents the equipment from frequently rejecting good product, significantly minimizing waste and maximizing your raw material yield.
It features advanced anti-blocking and anti-interference capabilities, utilizing automatic product effect compensation to maintain absolute stability and eliminate false alarms even in environments with heavy electromagnetic noise.
Powered by high-frequency multi-frequency synchronization technology, the sensor accurately identifies and extracts microscopic metallic foreign bodies down to 0.2mm, ensuring strict quality compliance.
Comprehensive production data tracking and export functions are integrated into the control interface, supporting stringent industry compliance audits and enabling full traceability of the inspection process for modern smart-factory management.
For facilities looking to upgrade their material purity standards while safeguarding vital processing machinery, this vibratory feeding separator offers an unmatched combination of precision, reliability, and operational efficiency.
