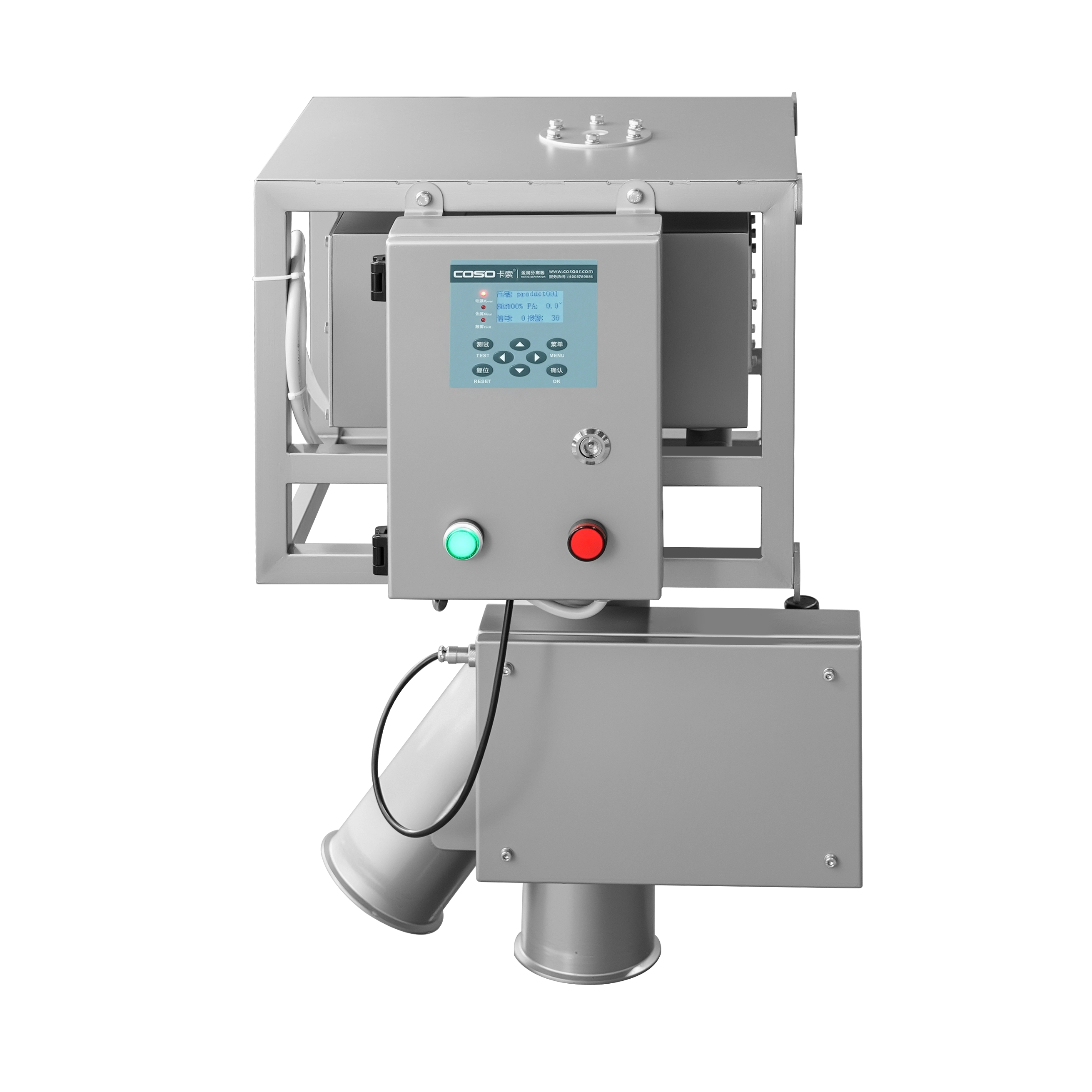

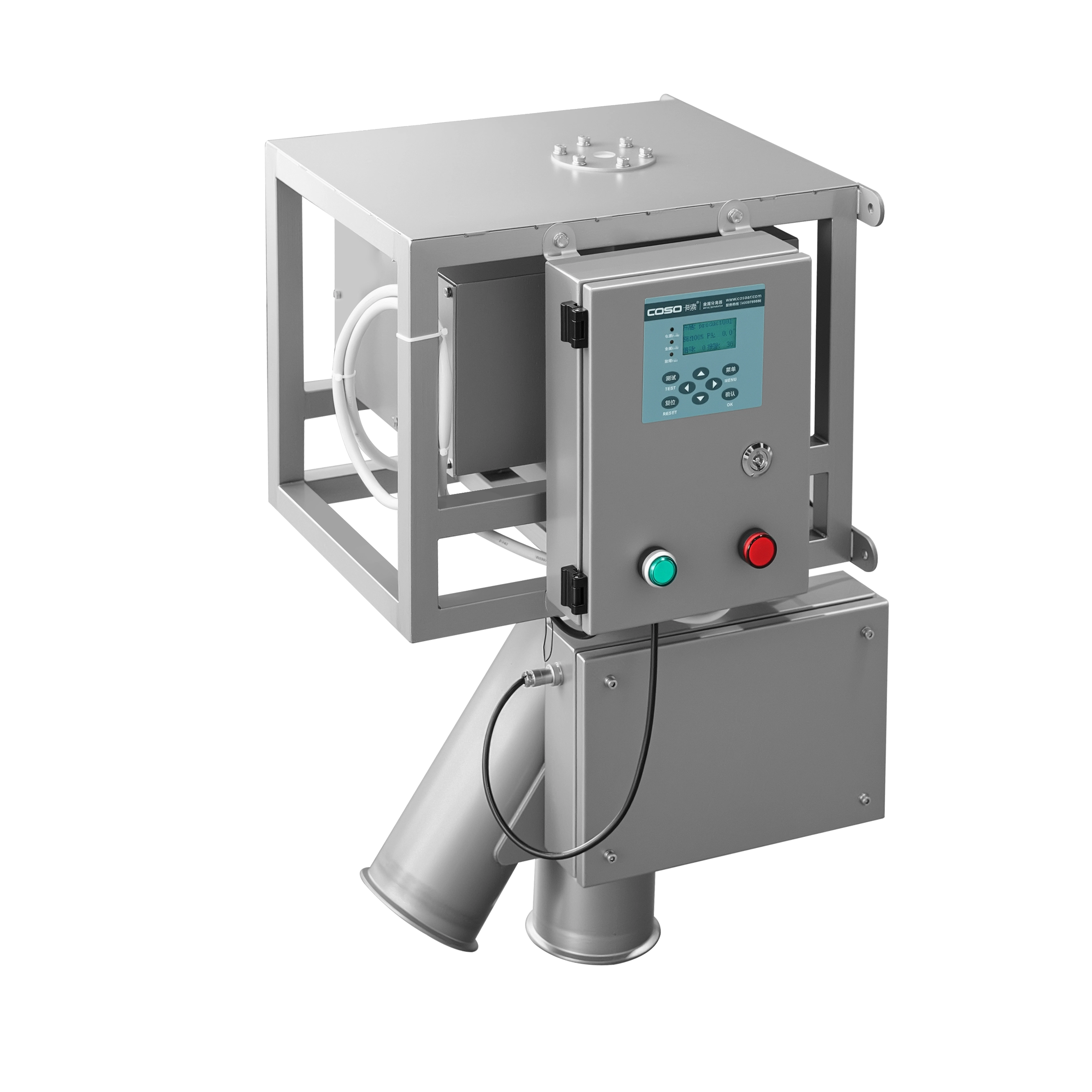

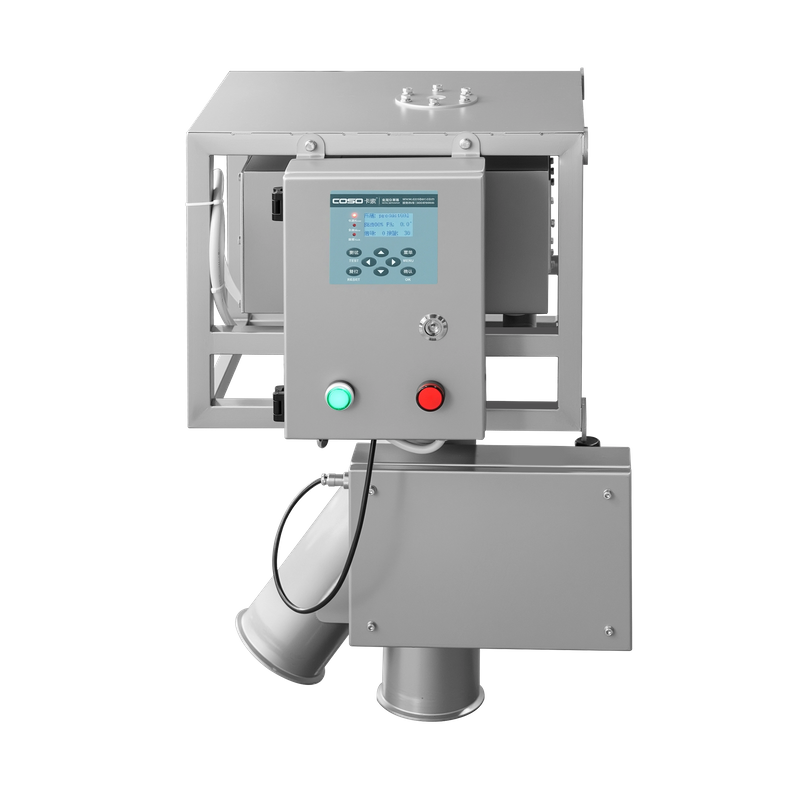

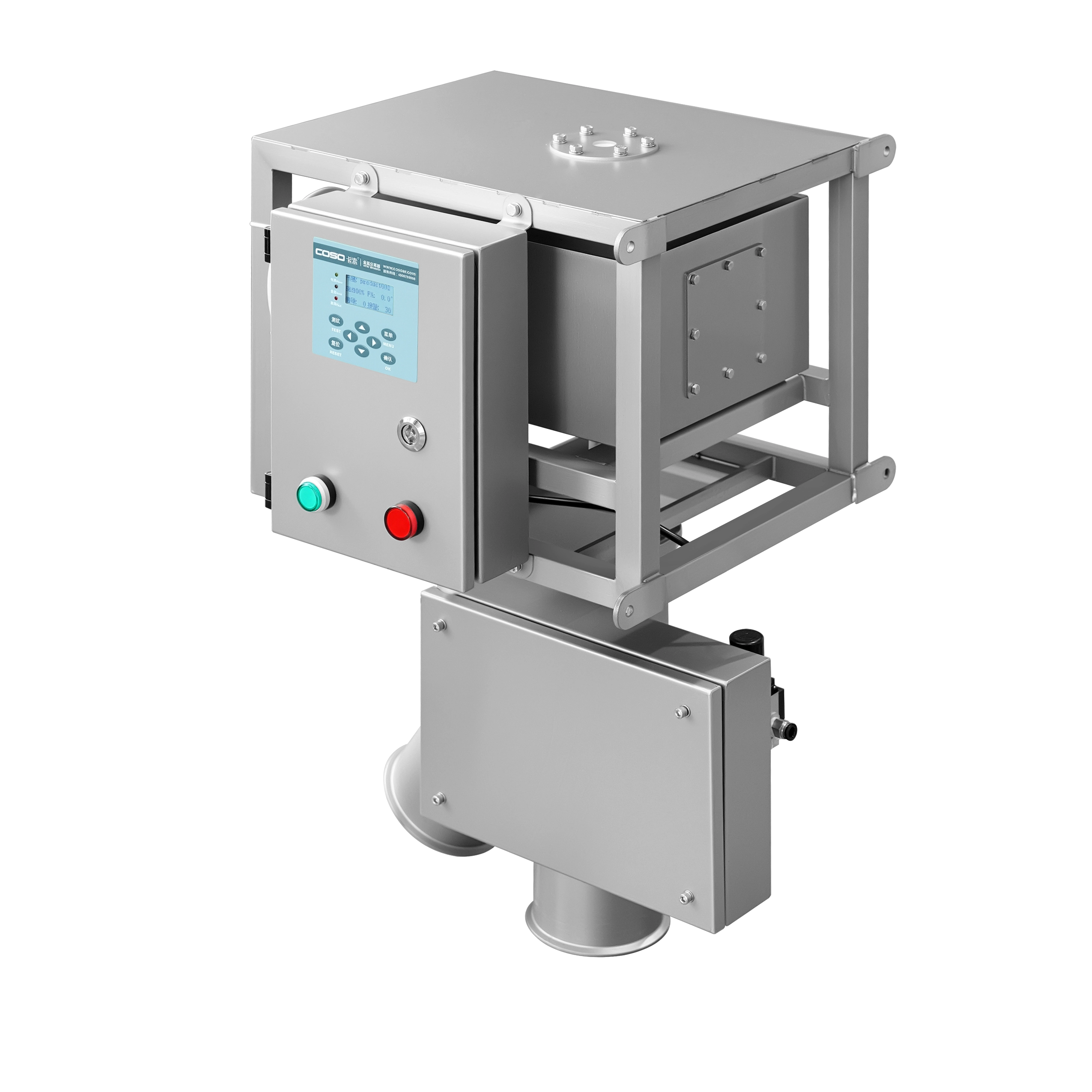

Intelligent High-Precision Metal Separator for Flour & Grains

Product Description

COSO PEC2500K1 intelligent high-precision metal separator utilizes next-generation digital intelligent technology to achieve the enhancement of digitization and intelligence of signal processing and multidimensional detection functions. It is metal contaminant detection and separation equipment, offering stable performance, high-precision detection and strong anti-interference capability.

Key Benefits of COSO PEC2005K1 Intelligent High-Precision Metal Separator

• Detection Capability

  It can detect various metal contaminants such as ferrous, copper, aluminum, stainless steel.

• Applicable Industries

  It can be widely used in food, pharmaceutical, plastic, rubber, recycled industry.

• Detection Sensitivity

  Fe (Φ/mm): 0.2–1.0

  Non-Fe (Φ/mm): 0.23–1.1

  SUS (Φ/mm): 0.26–1.6

• Material Throughput (L/h): 200–28,000

Application

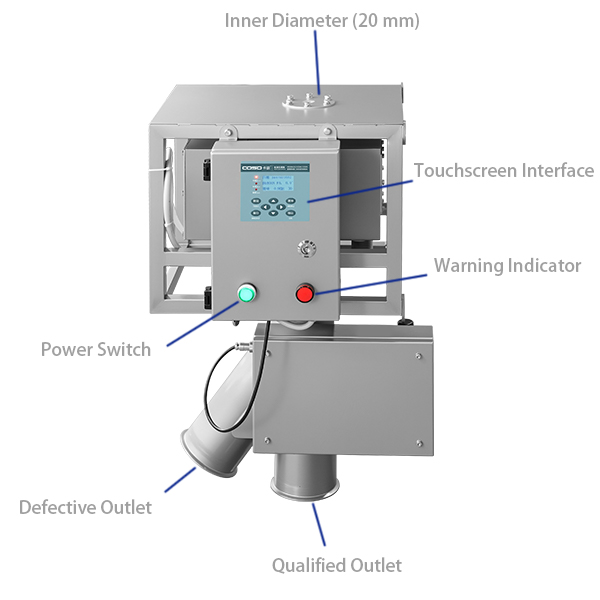

Product Structure

Product Demo Video

Product Features

• With unique sensor manufacturing technology and multidimensional digital signal processing technology and algorithm, offers high-precision detection and stable performance.

• Equipped with USB, RS485, and Ethernet ports, the system supports data export, networking, and remote control.

• Supports multidimensional self-learning of product effect, environmental interference, and material conveying speed, equipped with automatic memory of 300 product parameters.

• Supports multi-level permission management and multi-language user interface.

• Automatically stores and exports up to 10,000 operation and detection logs, and alarm records for easy counting, querying, and tracing of data.

• Offers multiple inlet diameter options, meeting different throughput requirements for material handling.

• Adaptive power supply 110–240 V (±10%), 50–60 Hz.

Product Specification

Note:

The listed sensitivity values are obtained with test blocks passing through the detection pipe (under no-load conditions). Actual sensitivity may vary depending on product characteristics or operating environment; always refer to the actual sensitivity. Technology upgrades may improve sensitivity, consult sales for the lastest data. The listed models are selected standard configurations; other configurations are available, contact sales for details.

Certification

ISO 9001: Quality management systems.

The belt has been FDA certified: Compliant with U.S. food and drug regulations.

CE Certified: Meets EU safety, health, and environmental protection standards.

Different Connection Methods

Flange Connection

This high-quality butt-weld flange is suitable for a wide range of pipe systems. Customers only need to provide the on-site pipe inner and outer diameters, and we can customized the flange to meet specific requirements. The flange's outer diameter, hole positions, thickness, and inner diameter can be designed according to the site conditions, ensuring a precise fit with the pipe and enhancing sealing and reliability. Its shape, size, and butt hole position can also be tailored to accommodate complex installation needs, making it an ideal solution for projects that require high-precision, site specific pipe connection.

Clamp Connection

Customers need to provide the inner and outer diameters of the lower outlet of the field hopper, and add a section of the inlet and outlet of the metal separator to the same size as the customer. With the clamp, it can be used at the site. The clamp links are convenient, as shown below.

Flexible Connection

A little gap is reserved between the inlet and outlet of the metal separator and the outlet of the customer site. Food-grade hoses or soft cloth strips are used for butting. The inlet and outlet of the metal separator, the outlet of the reject can be used for soft butting. The soft connection can avoid vibration. As shown below.

Manufacturing Process

Company Profile

Dongguan Coso Electronic Tech Co., Ltd, founded in 2005 and headquartered in Dongguan, a globally renowned manufacturing hub in China, is a technology-driven enterprise specializing in the R&D, manufacturing, and sales of intelligent detection and sorting equipment.

COSO products mainly include metal detectors, metal separators, checkweighers, and X-ray inspection systems that are used in a wide range of industries including food & beverage, pharmaceuticals, healthcare, rubber & plastics, chemicals, personal care & household products, cosmetics, textiles & apparel, toys, hardware, automotive, electronics, packaging & printing, mining, as well as building materials.

COSO provides clients with one-stop customized product solutions covering the entire process from R&D, design, and production to delivery. The core solutions include metal contaminants and foreign body detection & sorting, weight inspection & sorting, and defect detection & sorting.

COSO products combine user-friendly modular design, intelligent algorithms, and precision manufacturing. With over 20 national patents, ISO 9001 certification, and compliance with CE, FDA, and RoHS regulations, the products have been exported to more than 90 countries and regions and adopted by numerous Fortune Global 500 companies.

Adhering to the principle of long-termism, COSO has successfully built a full industrial chain ecosystem integrating R&D, manufacturing, sales, and service after more than 20 years of accumulated expertise in core technologies, manufacturing, and service systems. Keeping pace with advancements in AI technology, we are actively driving the comprehensive intelligent upgrades of technology, products, services and management, and gradually building a global intelligent ecosystem. The company has established a distribution and service network covering more than 20 countries.

COSO remains customer-centric, upholds the corporate mission of "Make Production More Efficient, Make Products More Reliable", and advocates an organizational culture that encourages mutual growth between employees and the enterprise. We are committed to becoming a globally reliable manufacturer of intelligent detection and sorting equipment. Together with global partners, we aim to contribute to intelligent transformation of manufacturing and jointly build a future of smart production.

Exhibition

COSO actively participates in major industry exhitions to showcase our metal detection equipment. At each event, we highlight our dedication to innovation and our capability to deliver high-performance solutions across industries such as food, pharmaceuticals, textiles, and others.

Packing and Delivery

Packing：Wooden Case.

Delivery Time：After deposit, production starts right away and takes about 15 working days.
