Customized Metal Separator for Granulators: A Case Study on Space-Saving Integration

Facing a high-end granulation line that combines main and auxiliary feeding, composite plasticizing, and precision pellet cutting, the customer required a metal separator to be integrated at the feed outlet, within limited space, without disrupting material flow or the subsequent melting process. By implementing three core strategies—structural redesign, process optimization, and the separation of control systems and metal detection—this approach effectively addresses the challenges of integrating into space-limited production lines. We turned a standard detection challenge into a seamlessly integrated process protection point’ on the production line. This was accomplished with zero additional floor space usage, while ensuring reliable, fully automated metal removal.

Background

The customer is a company specializing in the modification of high-performance engineering plastics. Their production line is a typical configuration of modern complex granulation system.

Dual-Stage Feeding System

The main feeder handles crushed material (using single screw conveyor), while the auxiliary feeder processes powders and additives (using twin-screw conveyor). A typical screw conveyor serves functions such as conveying, heating, mixing, and pressurizing. The main function of this production line is to convey materials. And two feeders enable precise, dynamic, and continuous blending and proportioning of multi-component materials. These two materials are then compounded in subsequent stages. Our metal separator for slow falling materials columns has the similar screw conveyor, which can simulate extrusion molding.

Precise Temperature Control Process

Usually, the cooling methods for the melt stage typically include air cooling, oil cooling, and a combination of air and water cooling. In this case, it adopts water cooling to reduce temperature, requiring careful monitoring of the temperature curve. This requires continuous and stable upstream material feeding.

Complete Granulation Process

Feeding → Metal Contaminants Detection → Melting and Plasticzing → Extrusion → Water Cooling → Strand Cutting → Cyclone Separation and Drying → Packaging.

Core Requirement：How to Integrate Metal Separator in Compact Granulation Lines

Install a metal separator at the outlet of the main feeder, before the melting stage, to intercept potential metal contaminants(screw, iron filings or other contaminants) that maybe mixed into the crushed raw material.

Challenges in Integrating Control Systems and Metal Detection into Space-Limited Production Lines

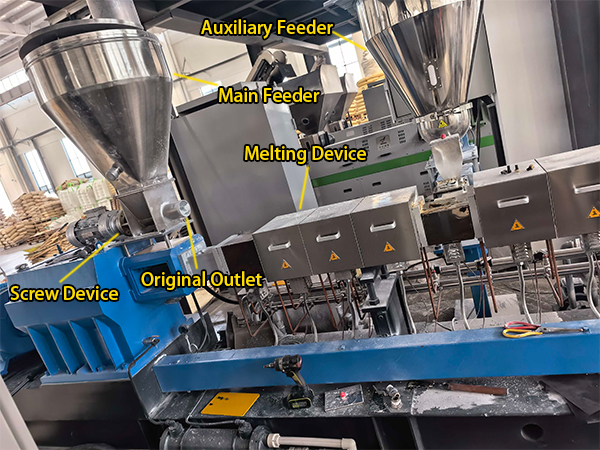

Original Production Line with Limited Space

According to the client's production line, the original outlet of the feeder is positioned very closed to the bottom foundation platform, leaving extremely limited vertical installation sapce. Standaed metal separator can no be directly installed.

The problem of placement

The pure materials must fall smoothly into the melt device by gravity. Any complicated turns or ascent would lead a risk of bridging and blockage. The separator has two outlets. The qualified outlet directly connects to the melt stage. In the horizontal direction, there is no place to set. Qualified outlet should directly fall into the melting device, and the defective outlet should discharfe and not enter the next stage.

How to Place Control System and Metal Detection Part

Typically, according to our traditional installation, the control system and metal detection part are integrated. How to design based on this existing production line.

Space Optimization and Workflow Solutions: Structural Redesign, Outlet Placement, and System Separation

Structural Redesign: Creating Vertical Space

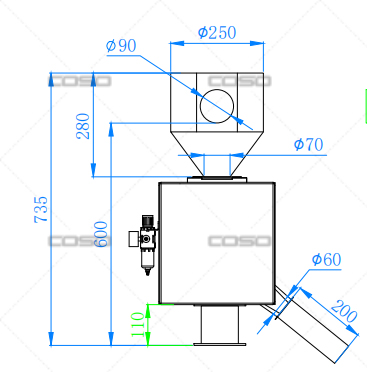

After consultation with client, the main feeder of the production line was raised. As a result, the defective outlet of the metal separator was also elevated by 110 mm, requiring a modification to the standard installation layout. This redesign creates sufficient vertical space for the metal separator while maintaining smooth material flow. It enables effective metal detection of raw materials and seamless integration with the existing production line.

Two-Outlet Design: Direct Qualified Outlet and Extended Defective Outlet

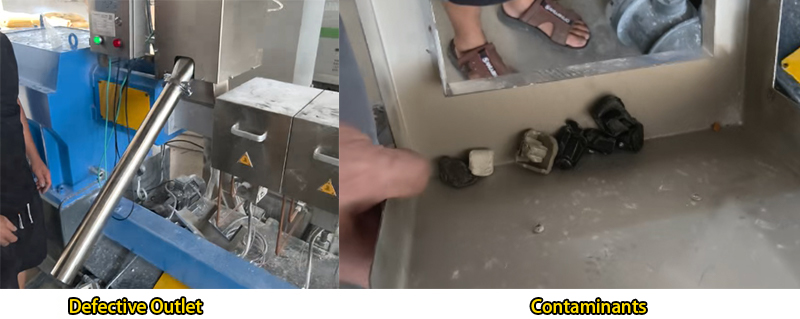

The bottom of the metal separator was raised by 110 mm, allowing qualified materials to fall directly into the melting process without the need for additional devices or manual adjustment. Due to the wide production line in this case, the defective outlet was extended to guide rejected materials into a collection bin positioned outside the equipment. This design enables automatic waste discharge while ensuring safe passage for operators, without occupying additional floor space.

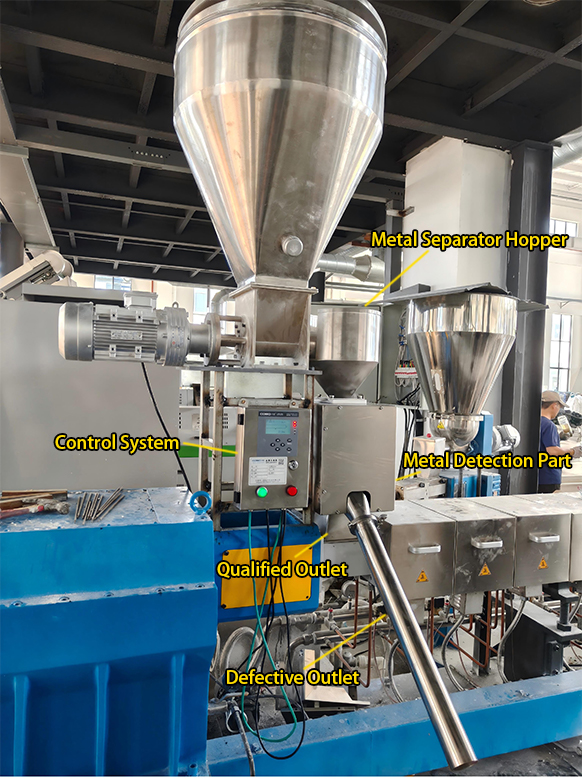

Separated Design of Control System and Metal Detection Part

This production line adopts separated design, in which the control system and the metal detection part are installed independently to facilitate operator access and operation. Although the control system and the detection part are physically separated, their control logic remains fully integrated. The system can interface with your main production line. When metal contamination is detected, the system can trigger alarms, enabling seamless integration without the need to rewrite complex control programs.

Complete Granulation Process: Preventing Metal Contamination in Plastic Pellet Production

To effectively address the metal contamination issues on the client's production line, we proposed a comprehensive solution, with a key focus on introducing metal separator to ensure material purity and smooth operation. Metal contaminants can generate at various stages of production—whether in plastic pellets, crushed materials, injection–molded parts, or powder—and these contaminants can not only affect the final product quality but also cause damage to production equipment. Therefore, using specialized metal separators to detect and remove these contaminants in real–time has become a crucial aspect of maintaining optimal production line performance. By accurately removing metal contaminants, they help increase production efficiency, reduce equipment wear, and ensure the quality of the final products. In the following section, we will provide a detailed overview of the application and benefits of metal separators in the plastic industry.

Application Scenarios of Metal Separators in the Plastic Industry

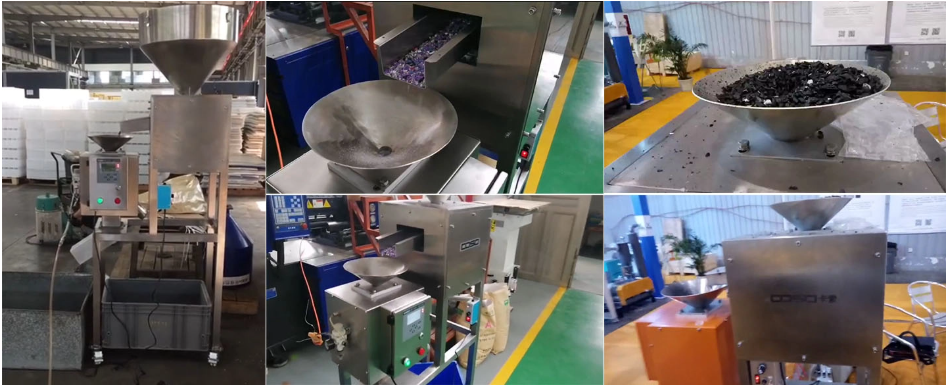

Plastic Pellet Processing

Plastic pellet processing involves the precise blending and continuous granulation of raw materials to produce uniform pellets for downstream applications such as injection molding and extrusion. This process requires careful control of material composition, temperature, and pellet size to ensure consistent product quality. Metal contamination, such as screws, iron filings, or other metallic particles, poses a significant risk to both equipment and final product integrity. Therefore, integrating metal separators into the pellet production line is essential to remove impurities, protect machinery, and maintain high-quality, contaminant-free plastic pellets.

Crushed Material Processing

In crushed material processing, plastic waste or raw flakes are shredded and conveyed for further compounding. Metal contaminants, such as fragments from machinery or previous processing stages, can be mixed into the crushed material, posing a risk to downstream equipment like extruders and mixers. Installing metal separators at key points in the crushed material line ensures effective removal of these impurities, protecting equipment, maintaining material integrity, and supporting consistent production quality.

Injection-Molded Part Production

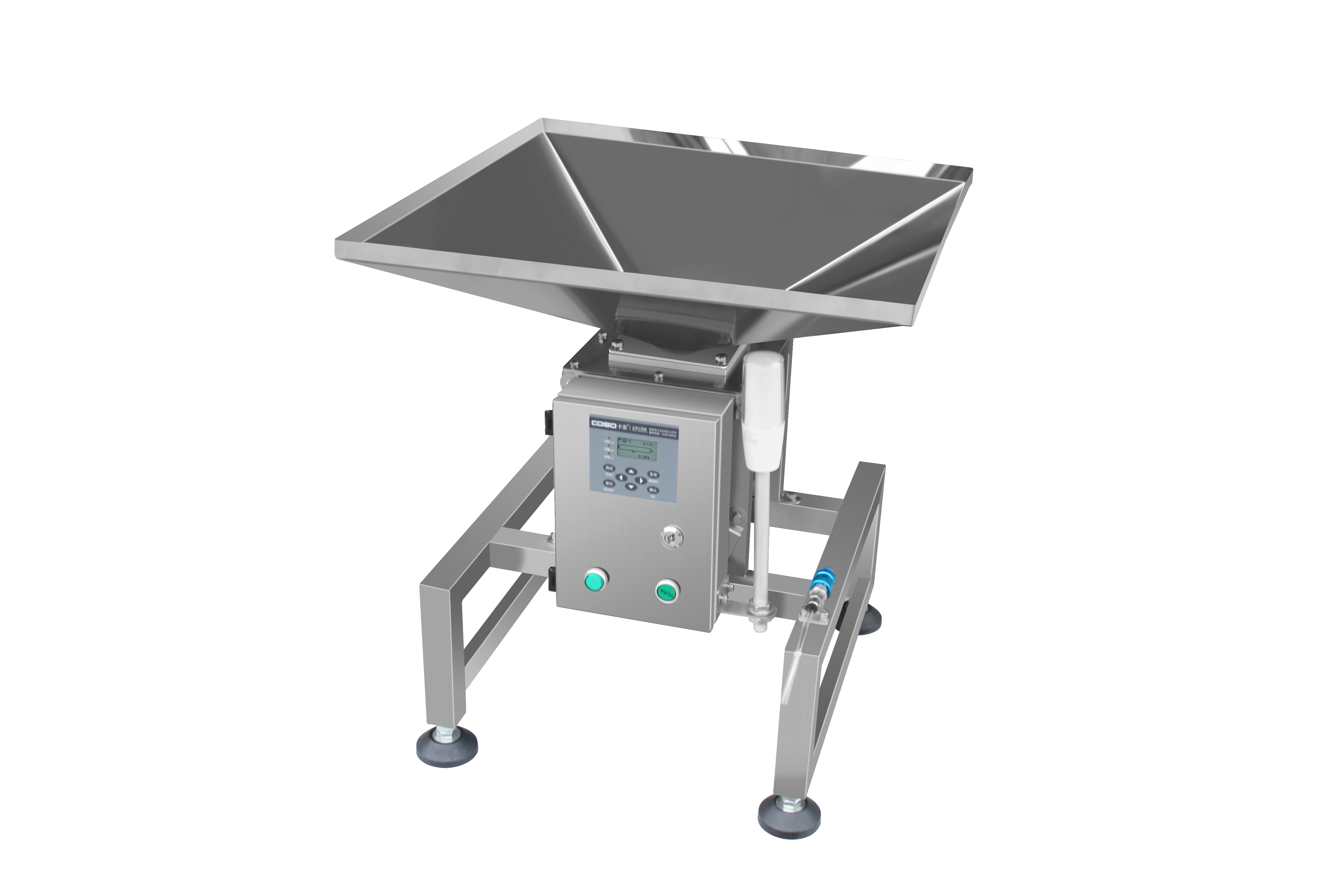

During injection molding, molten plastic is shaped into precise components, making any metal contamination particularly critical. Even small metal particles can damage molds, reduce part quality, and interrupt production. Integrating metal separators before or during the molding process allows real-time detection and removal of metal contaminants, ensuring the final parts meet stringent quality standards. Learn more about our metal separator for injection molding.

Powder Material Processing

Processing powder-like plastic materials, such as fine powders or additives, requires high precision because even tiny metal contaminants can compromise product quality or affect downstream processes. Metal separators designed for powder processing can detect and remove small metallic particles, ensuring contaminant-free powders. This is especially important in applications demanding high purity, such as engineering plastics, medical-grade polymers, and specialized compound formulations.

FAQ

Q1: Why is it essential to install a metal separator in a plastic granulation line?

A: In granulation lines, materials often contain screw, metal shavings, or wire fragments from recycled sources. Installing a metal separator has two purposes: equipment protection, preventing metal contaminants from entering the screw or mold, which can save thousands of dollars in repair costs and minimize downtime. Quality assurance, ensuring the purity of the final pellets, meeting the standards of high-performance engineering plastics.

Q2: What is the role of a granulator in a plastic production line?

A: A granulator is used to process raw or waste plastic materials into uniform pellets. It breaks down larger plastic pieces into smaller, consistent granules, which are easier to handle and suitable for downstream processes such as mixing, conveying, and further processing in the production line.

Q3: What are the main processing methods before plastic materials become final products?

A: Before plastic materials are transformed into finished products, they typically go through several common processing methods.

Injection Molding: Plastic pellets (virgin or recycled), color masterbatch, and additives are automatically and proportionally conveyed into the injection molding machine. This ensures continuous production, avoids manual feeding errors, contamination, and interruptions, and maintains consistent color and composition.

Extrusion Molding: The system continuously and stably feeds base materials and various additives (such as recycled materials, fillers, and modifiers) into single-screw or twin-screw extruders. Maintaining stable pressure and flow during extrusion is critical to ensuring uniform dimensions and consistent physical properties.

Blow Molding: Plastic pellets are conveyed to the blow molding machine, where automated feeding supports synchronized production cycles and improves overall efficiency.

These processes rely on automated material handling systems to enhance efficiency, reduce human error, and ensure product consistency.

Q4: Do different types of feeders (e.g., screw feeder vs. Vacuum loader) affect metal detection?

A: Yes. Screw feeders (single or twin) generate mechanical vibrations, while vacuum loaders involve high-velocity airflow.. A high-quality metal separator must have anti-vibration and anti-interference capabilities. For powder additives in twin-screw systems, we recommend a specalized Y-type metal separator to ensure precise rejection during high-speed material flow.

Q5: How do I choose the right metal separator for my plastic production line？

A: Selecting the ideal metal separator depends on your specific production setup and the type of plastic material being processed. To ensure maximum protection for your injection molding or extrusion machinery, consider the following four factors:

Material Feeding Method: Determine where the separator will be installed. If it's for gravity-fed applications (like at the throat of an extruder), a gravity fall metal separator is best. For vacuum-conveyed lines, you will need a specialized pneumatic pipeline metal separator.

Material Characteristics: The physical form of your plastic dictates the separator's internal architecture. For flakes, an open-type (gravity fall) configuration is recommended to ensure smooth flow without bridging. For fine powders, a Y-type metal separator is essential ensure a dust-tight seal during the rejection process. For liquid like paste,butter jam, liquid metal separator should be used.

Detection Sensitivity: Look for a system that can detect both ferrous, stainless steel, aluminum, copper. Even tiny particle can clog nozzles or damage hot runner systems, so high-frequency digital sensing is a must.

Throughput & Product Diameter: Match the separator's tunnel size to your production volume.
