Why Your Textile Line Needs a Wide Conveyor Needle Detector: Ensuring Quilt & Garment Safety

In the textile, garment, and home bedding industries, product safety and quality assurance are paramount. A single broken sewing needle or metal contaminant left inside a quilt, pillow, or large piece of apparel can lead to serious safety hazards, severe customer complaints, and costly brand damage. To overcome the limitations of standard-sized inspection machines when handling large-format products, deploying an industrial wide conveyor needle detector is the ultimate solution for modern automated manufacturing lines.

Technical Features: Designed for Wide-Format Textiles

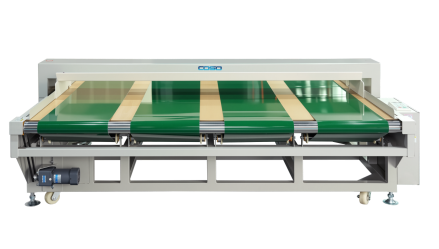

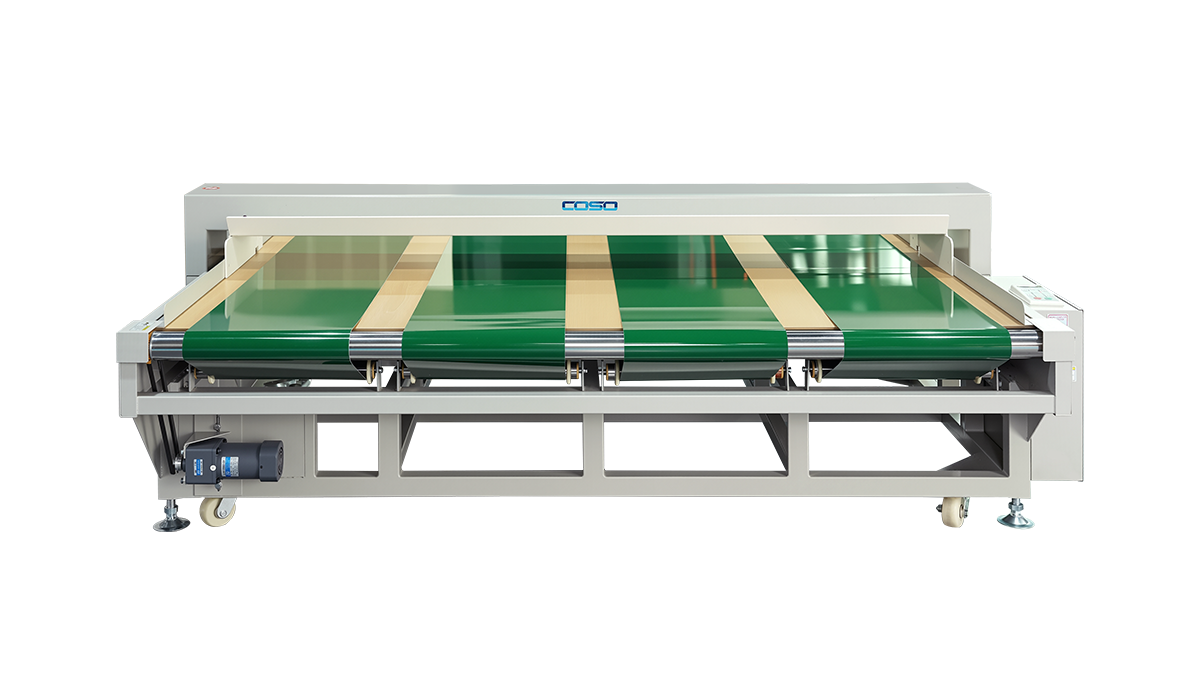

Standard needle detectors often struggle with large bedding products like quilts, mattresses, or wide-fabric rolls due to limited tunnel dimensions. The COSO wide conveyor needle detector is specially engineered to bridge this gap.

Ultra-wide inspection detection tunnel (2350 X 120 mm)

Featuring an extra-wide tunnel size of 2350 mm in width by 120 mm in height, this system easily accommodates bulky textiles, wide-format quilts, large garments, and thick home fabrics without causing jam-ups or product compression.

Intelligent Auto-Rewind and Alarm System

When a metal contaminant or broken needle fragments is detected, the system immediately triggers a visual and audible alarm. To prevent compromised items from moving further down the packaging line, the conveyor belt automatically rewinds or stops, allowing operators to easily locate and clear the contaminant.

Rigorous Quality Control: The Nine-Point Testing Method

High-sensitivity across every inch of a wide conveyor belt is vital. To guarantee uniform performance across the entire 2350 mm width, equipment must undergo rigorous validation. The standard testing process utilizes a nine-point testing method (testing bottom, middle, and top zones of the detection tunnel).

Bottom zone test: Ensures zero blind spots near the belt surface, detecting micro-ferrous contaminants.

Middle zone test: Verifies sensitivity in the central passing area where thick, folded textiles usually travel.

Top zone test: Guarantees full-height coverage up to the upper clearance limit.

This video demonstrates the nine-point testing process. The metal test card is placed at different positions across the conveyor—bottom, middle, top. This verifies detection coverage and sensitivity consistency across the entire detection zone.

Passing all nine points ensures full-coverage protection across the entire passage, eliminating false passers or undetected metal fragments.

Key Benefits for Garment and Bedding Manufacturers

Implementing a specialized needle detector for textiles delivers tangible business value:

Safety Compliance: Satisfies strict global export regulations and retailer quality audits (such as ISO and CE standards).

Automated Production Efficiency: High-speed continuous inspection reduces reliance on labor-intensive manual needle searches.

Brand Reputation Protection: Prevents injury risks for end-consumer, safeguarding your brand against product liability claims.

Upgrade Your Product Inspection Line with COSO

Whether you need a custom wide-tunnel system or standard conveyor unit, Dongguan Coso Electronic Tech Co., Ltd. Offers a complete range of automated inspection equipment, including needle detector, industrial metal detectors, metal separators, and checkweighers.
