Product Description

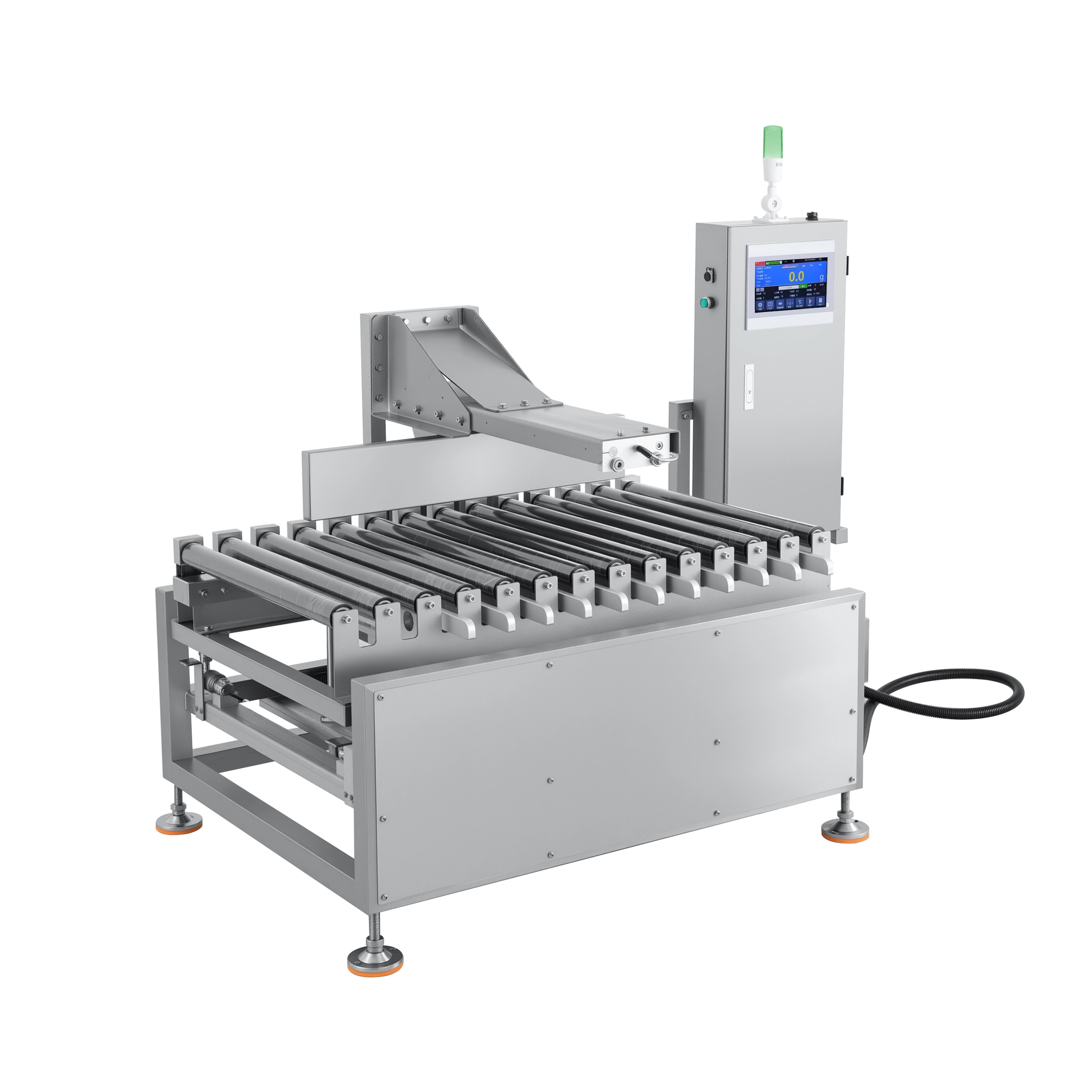

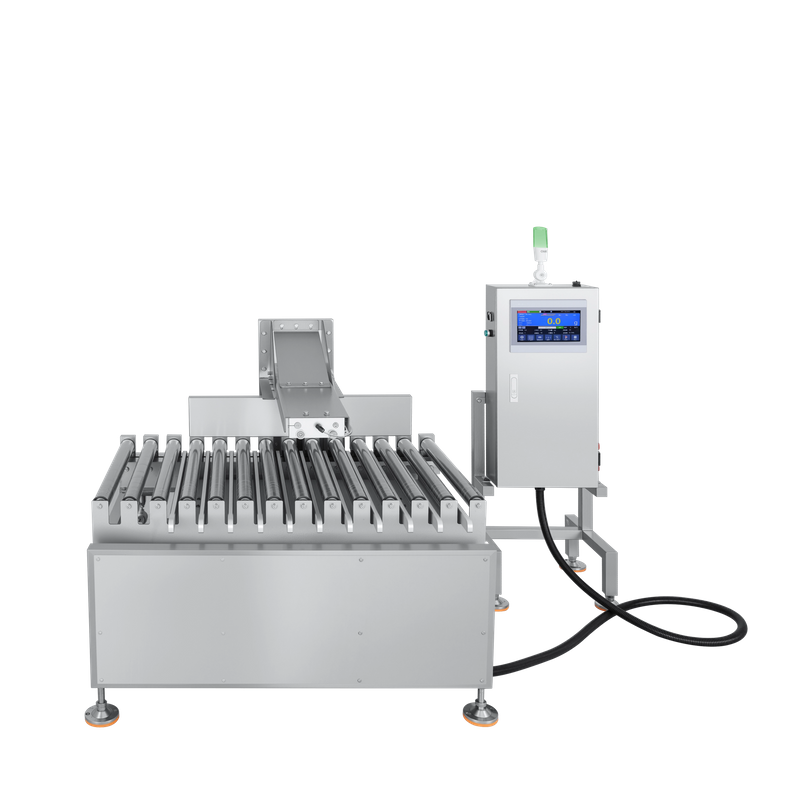

The single-section roller checkweigher is designed for heavy products such as 25 kg boxes, large bags, food packaging, drum materials, heavy machine parts, and concrete blocks and bricks in the construction industry. It quickly checks the weight of products to ensure they are neither overweight, underweight, nor missing items. The equipment features a single-section design, where the weighing section also serves as the rejection section, simplifying operation and maintenance, making it ideal for the rapid inspection of heavy products. Based on this, weighing section is equiped with a lifting mechanism to minize the impact of heavy products and also protect the sensor. Equipped with a roller conveyor, the equipment smoothly transports heavy products, reducing friction and wear while ensuring materials flow smoothly through the system. The automatic rejection and alarm functions automatically reject non-compliant products when the weight exceeds or falls short of the preset standard, improving production efficiency and quality control.
Product Video: Single-section roller checkweigher for heavy products
This video demonstrates the operation of the single-section roller checkweigher. When the product is compliant, it passes smoothly without any rejection action. When a product is found to be non-compliant, the mechanism in the weighing section automatically lifts, effectively rejecting the weight non-compliant product. This process helps reduce friction between the product and the equipment, minimizing the impact on sensors.
Product Details
Product Features

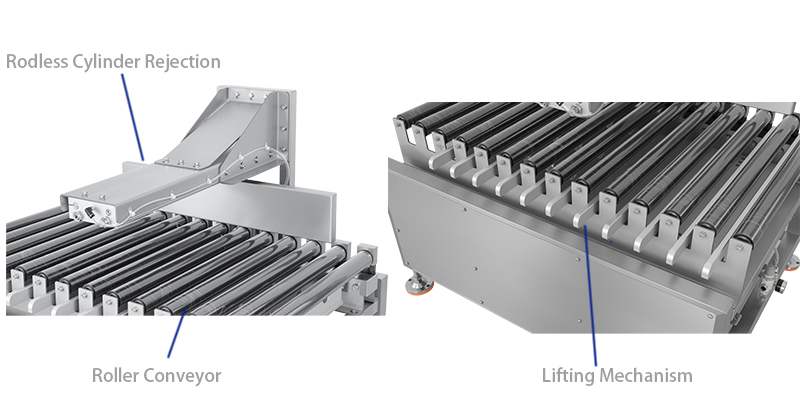

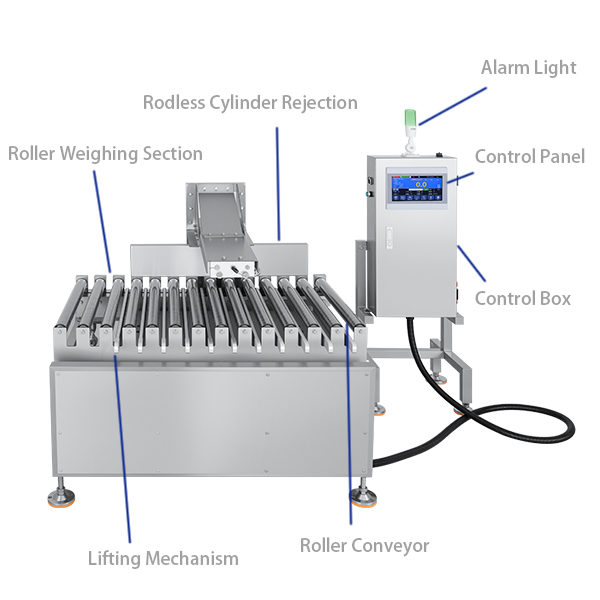

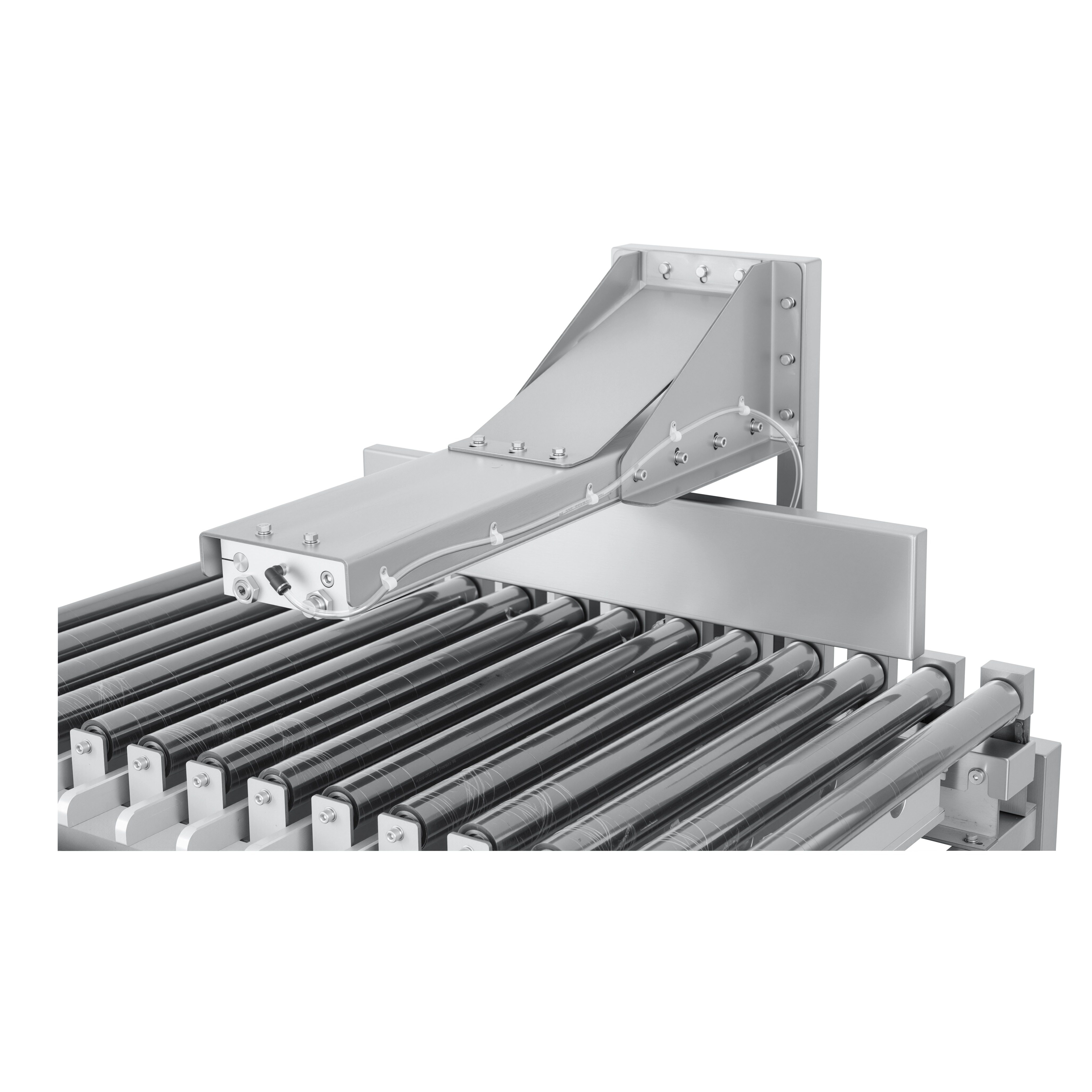

The roller weighing section combines with rodless cylinder rejection which saves installation space. And this is suitable for heavy products.

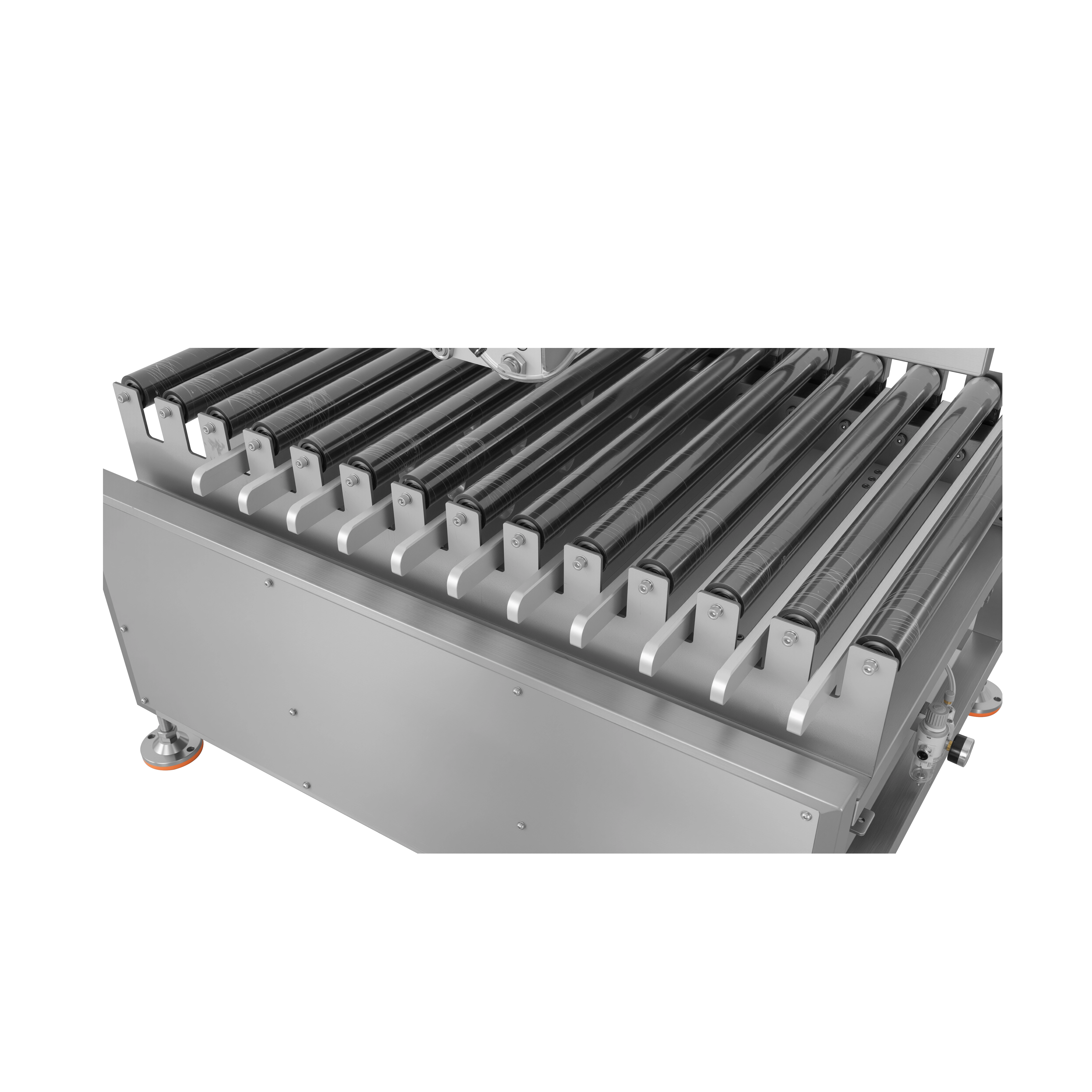

Heavy products may generate strong impacts during conveying. A lifting mechanism is placed under the roller to minize the impact. When a non-compliant is inspected, the cylinder will vertically lifts the product, separating it from the weighing platform. Then the rodless cylinder rejection rejects the non-compliant product.
The equipment can receive signals which indicate the production line's operational status. If no object is inspected, the roller stops. When objects arrive, the operation resumes automatically.
After products reach the weighing section, the roller stops to weigh. If the weight is qualified, operation resumes and products are conveyed to the downstream line. If the weight is non-compliant, the product is precisely rejected without affecting the weighing platform.
Product Description
The single-section roller checkweigher is designed for heavy products such as 25 kg boxes, large bags, food packaging, drum materials, heavy machine parts, and concrete blocks and bricks in the construction industry. It quickly checks the weight of products to ensure they are neither overweight, underweight, nor missing items. The equipment features a single-section design, where the weighing section also serves as the rejection section, simplifying operation and maintenance, making it ideal for the rapid inspection of heavy products. Based on this, weighing section is equiped with a lifting mechanism to minize the impact of heavy products and also protect the sensor. Equipped with a roller conveyor, the equipment smoothly transports heavy products, reducing friction and wear while ensuring materials flow smoothly through the system. The automatic rejection and alarm functions automatically reject non-compliant products when the weight exceeds or falls short of the preset standard, improving production efficiency and quality control.
Product Video: Single-section roller checkweigher for heavy products
This video demonstrates the operation of the single-section roller checkweigher. When the product is compliant, it passes smoothly without any rejection action. When a product is found to be non-compliant, the mechanism in the weighing section automatically lifts, effectively rejecting the weight non-compliant product. This process helps reduce friction between the product and the equipment, minimizing the impact on sensors.
Product Details
Product Features
The roller weighing section combines with rodless cylinder rejection which saves installation space. And this is suitable for heavy products.
Heavy products may generate strong impacts during conveying. A lifting mechanism is placed under the roller to minize the impact. When a non-compliant is inspected, the cylinder will vertically lifts the product, separating it from the weighing platform. Then the rodless cylinder rejection rejects the non-compliant product.
The equipment can receive signals which indicate the production line's operational status. If no object is inspected, the roller stops. When objects arrive, the operation resumes automatically.
After products reach the weighing section, the roller stops to weigh. If the weight is qualified, operation resumes and products are conveyed to the downstream line. If the weight is non-compliant, the product is precisely rejected without affecting the weighing platform.
