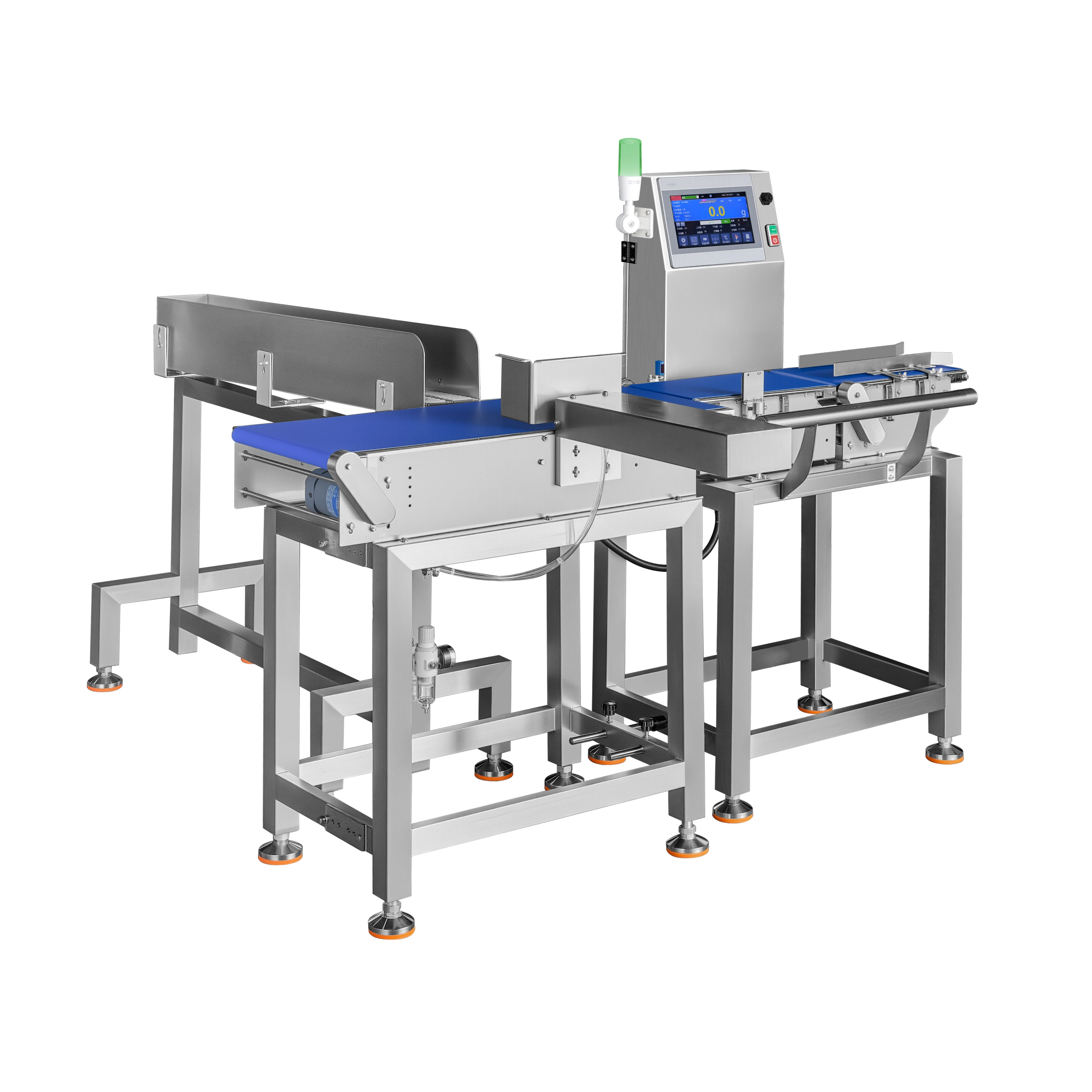

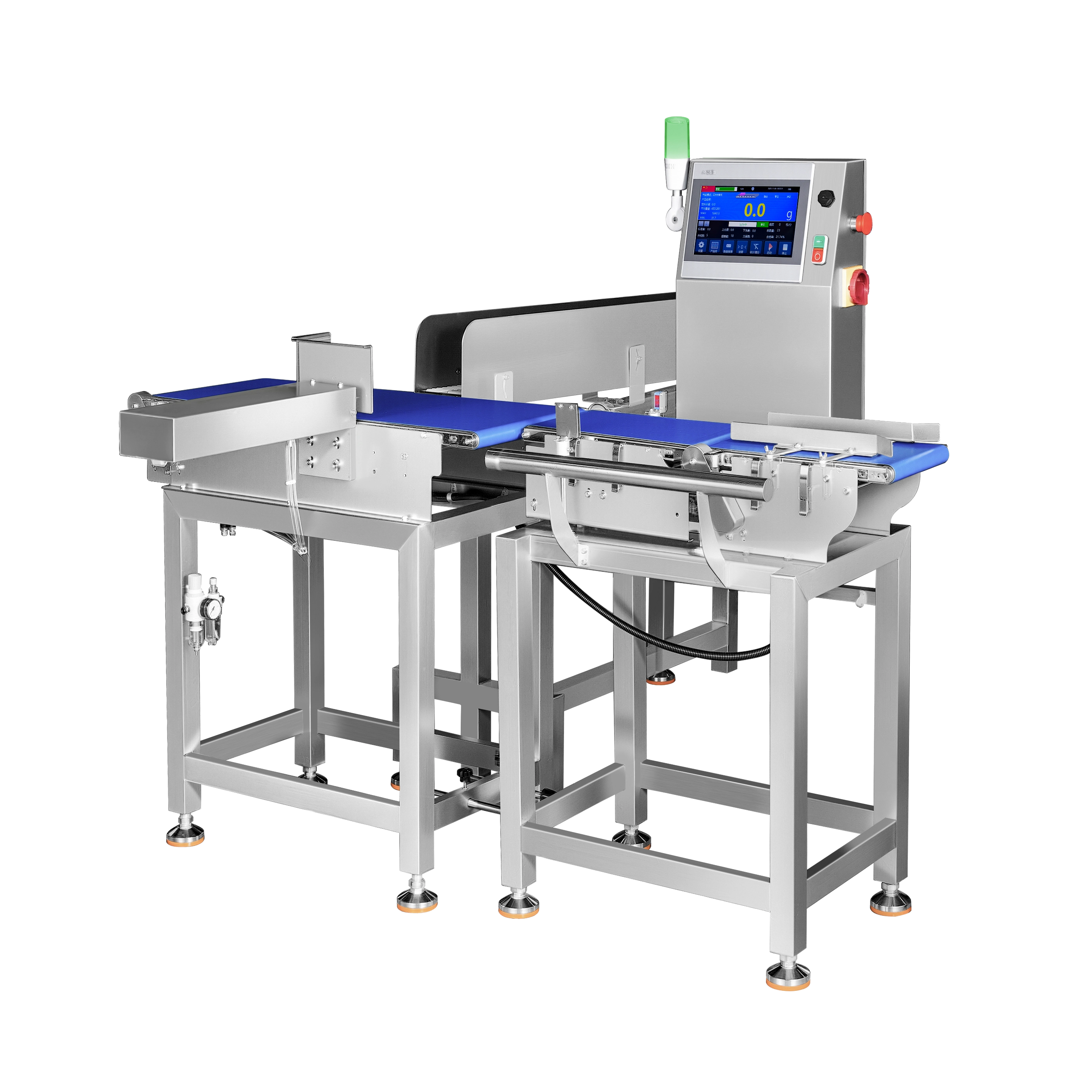

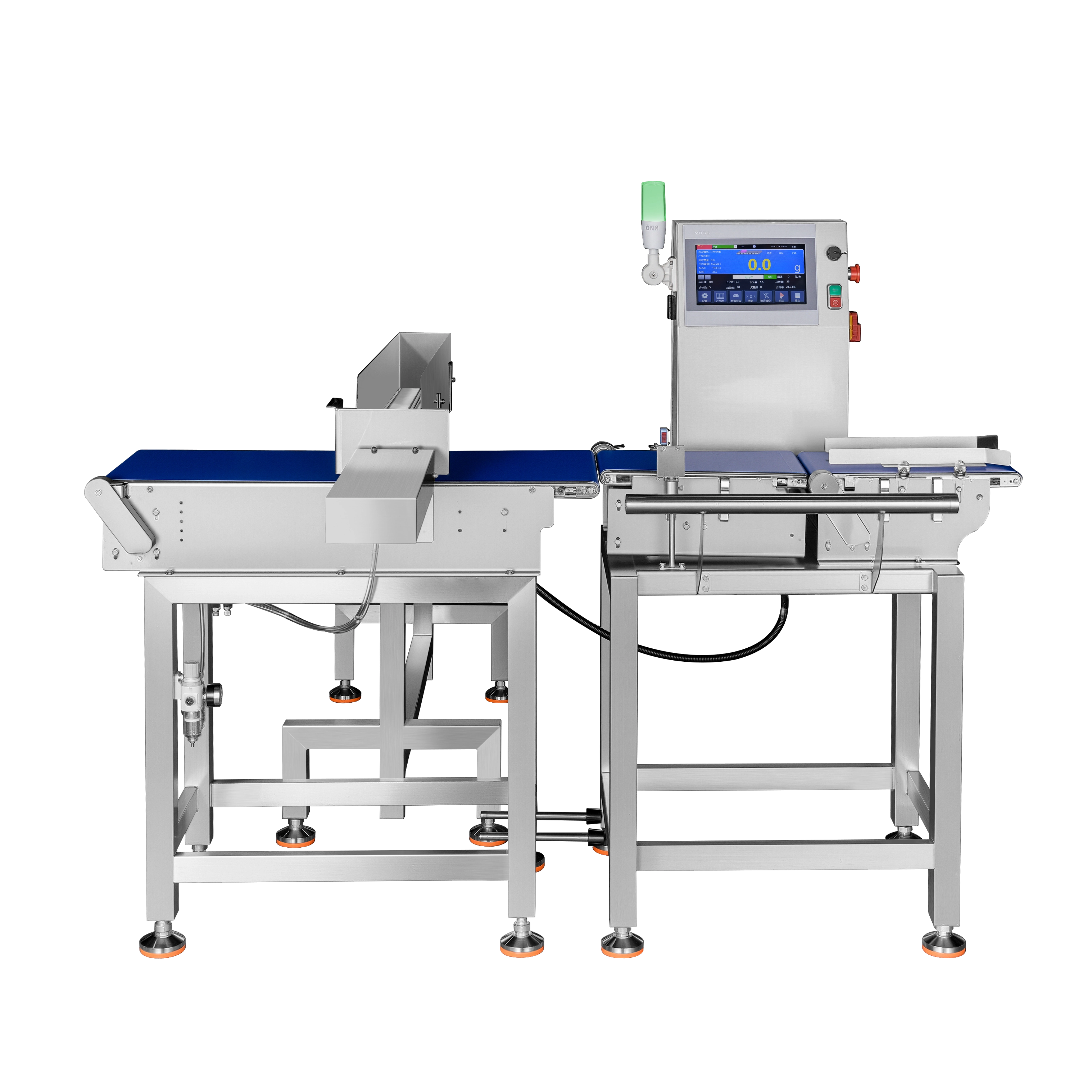

The Checkweigher for Large-Bottle Products is an advanced inline weighing solution designed to automatically inspect product weight while items are moving on a conveyor belt. By comparing the actual weight of each product against preset target values and tolerances, the checkweigher identifies underweight and overweight products in real time and removes them from the production flow without interrupting line speed. Utilizing advanced Electromagnetic Force Restoration (EMFR) technology or high-precision strain gauge load cells, this system guarantees exceptional dynamic weighing accuracy even when handling heavy, large-volume bottled goods at elevated operational speeds. Used for the detection of overfilled and underfilled products such as bottled, canned, and barrel-packed items in industries like food, pharmaceuticals, health products, chemicals, plastics, electronics, etc. By integrating this automated inspection checkpoint into your facility, operators eliminate costly product giveaway, protect brand reputation, and ensure every package leaving the facility meets exact weight specifications.
When examining the physical construction of this large-bottle checkweigher, the emphasis on sanitary design and robust engineering becomes immediately apparent. The entire machine is constructed from premium food-grade stainless steel, featuring smooth, cold-rolled surfaces that resist bacterial buildup and are cool to the touch. Designed to withstand the harshest washdown environments, the system offers customizable ingress protection ratings ranging from IP65 to IP69K. This ensures the internal electronics remain completely shielded against high-pressure, high-temperature water jets and harsh chemical cleaning agents, making it an ideal solution for facilities with stringent hygiene protocols.
Beyond its physical resilience, the internal architecture focuses on seamless facility integration. The unit is equipped with an open-architecture Programmable Logic Controller (PLC) system that supports multiple industrial communication protocols, including Ethernet IP, Modbus TCP/IP, and direct USB connectivity. This allows facility managers to effortlessly connect the weighing equipment to existing production lines and centralized factory data management systems. Operators can monitor real-time throughput, analyze rejection rates, and optimize overall equipment effectiveness (OEE) without needing proprietary software, ensuring a smooth flow of critical production data across the entire plant floor.

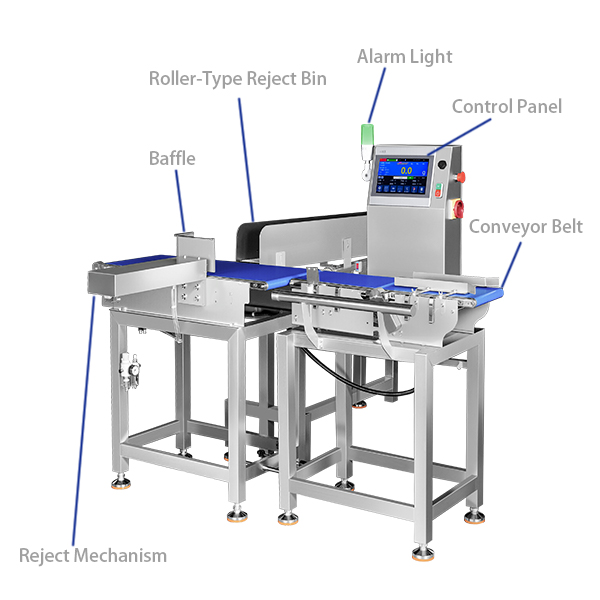

The rejection system uses pusher with baffle on one side to prevent tipping. This is critical for large-bottle products with high centers of gravity, ensuring that rejected items are smoothly pushed off the line without spilling or disrupting adjacent containers.
The roller-type reject bin has high load-bearing strength and long-term durability, specifically engineered to absorb the impact of heavy, liquid-filled containers safely during continuous operation.
Customized for large-bottle applications, the heavy-duty, anti-vibration structural frame and stabilized conveyor belts effectively overcome the risks associated with high-center-of-gravity products, maintaining absolute stability during high-speed transit.
The system is equipped with a highly responsive, multi-language HMI touchscreen terminal. It supports one-touch rapid calibration and extensive multi-recipe storage, allowing operators to execute fast line changeovers and error-free setups for varying bottle sizes and weights.
Advanced algorithms continuously filter out environmental vibrations and conveyor noise, ensuring that the load cells capture the true weight of the liquid or powder inside the bottle with uncompromising precision.
Integrating a reliable weight inspection system goes beyond standard quality control; it is essential for meeting strict global regulatory standards. This large-bottle checkweigher is meticulously designed to comply with FDA 21 CFR Part 11, the Food Safety Modernization Act (FSMA), and international weights and measures standards. By providing comprehensive production data traceability and secure audit trail functionalities, the system significantly mitigates the risk of compliance violations. Facility managers can easily export detailed batch reports, ensuring full transparency during regulatory audits and internal performance reviews.
Furthermore, the precise weight verification prevents costly product giveaway due to overfilling, while simultaneously protecting consumers from underfilled containers. Whether the production line is packaging multi-liter beverage jugs, bulk agricultural chemicals, heavy pharmaceutical syrups, or industrial lubricants, this equipment adapts to specific material handling needs. The smooth transition plates and custom-engineered guide rails ensure that even the most awkwardly shaped large bottles move steadily across the weighing platform, delivering consistent, repeatable measurements shift after shift.
