Product Description

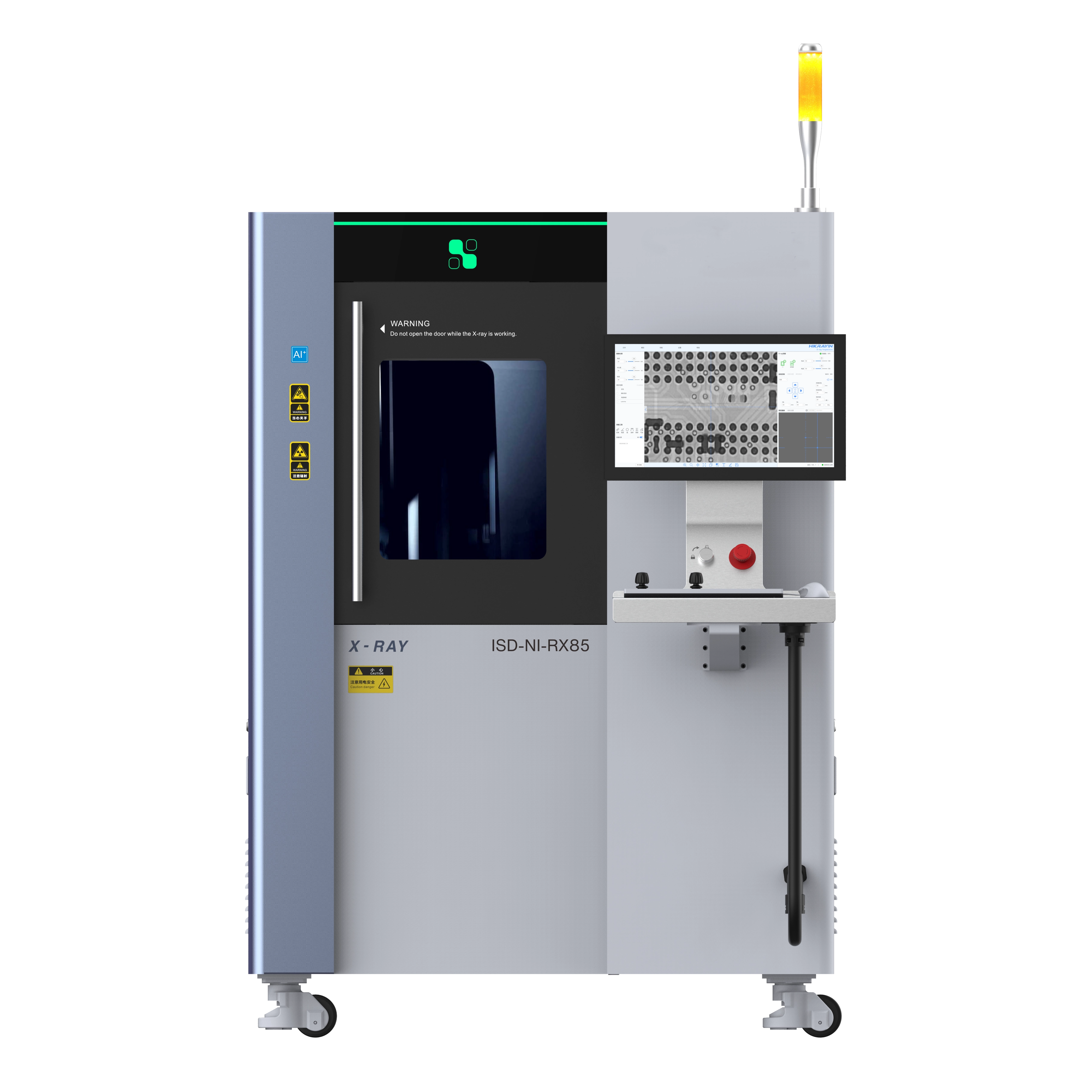

X-ray defect detection machine is a high-precision, non-destructive detection solution featuring seven core components: X-ray source, imaging unit, image processing system, mechanical system, electronic control, safety protection, and alarm system. It integrates advanced technologies including non-destructive testing, AI algorithms, and high-resolution imaging, allowing real-time detection and classification of internal defects. By leveraging the varying absorption of X-rays, it delivers precise internal structure imaging for accurate, automated defect recognition. It can be used in automotive, energy, home appliance, and semiconductor industries for defect detection on SMT, LED, BGA, IGBT, semiconductor components, die-cast parts, and other connectors.
Producct Image
The new image enhancement engine makes detailed imaging clearer, which has greater advantages in improving the detection rate of foreign objects and defects and reducing the false alarm rate.
Intelligent Algorithm
It can collect samples in real time and improve detection capabilities through continuous learning.

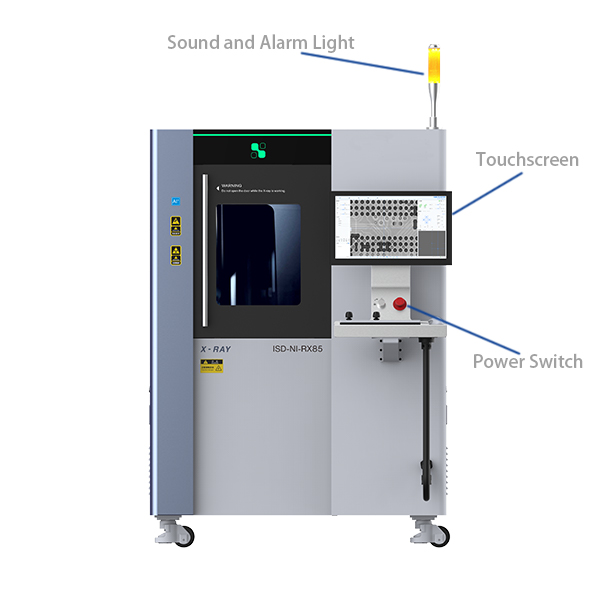

Product Details
Product Features
Features a 130 kV sealed microfocus X-ray tube with a 5μm focal spot size, providing long lifespan, maintenance-free operation, and superior imaging clarity for precise defect detection.
Supports CNC programmable automatic inspection, suitable for multi-point array scenarios. X-ray tube with maximum swing angle of 60°, enabling multi-position non-destructive detection.
Offers a variety of measurement tools capable of detecting parameters such as distance, angle, radius, circumference, area, curvature, and solderability ratio, with support for digital annotation.
Features a 500 W high-definition navigation display with automatic image centering during tilt and zoom. Supports multiple control methods including joystick, keyboard, and joystick, with integrated double-tap centering and auto-return functions.
Supports simultaneous annotation of X-ray and visible light images, featuring multiple intuitive annotation symbols to facilitate defect classification and re-evaluation, enhancing inspection efficiency and accuracy.
Easy Operation
Equipment parameters are basically free of debugging, the software operation is user-friendly and easy to understand.
Product Specification
| Item | ||
| X-ray Source | Type | Closed |
| X-ray tube voltage | 130 kV | |
| X-ray tube current | 0–500 μA | |
| Maximum output power | 39 W | |
| Focus size | 7 μm | |
| Imaging Unit | Pixel size | 85 μm |
| Pixel matrix | 1536x1536 | |
| Imaging area | 130 mm x 130 mm | |
| Spatial reso lution | 5.8 Ip/mm | |
| A/D conversion | 16bit | |
| Machine Parameter | Machine size | 1300(H)*1500(L)*1800(W) mm |
| Machine weight | 2000 kg | |
| Power | 2000 W | |
| Power supply | AC 220 V 50/60 Hz | |
| Working temperature | 10–35℃ | |
| Certificate | CE |
Note:
The detection sensitivity is the test result obtained by the material blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.
Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.
