COSO
Product Description
This machine can detect metal contaminants, glass, stone, hard plastics from the sealed cans, glass bottles.

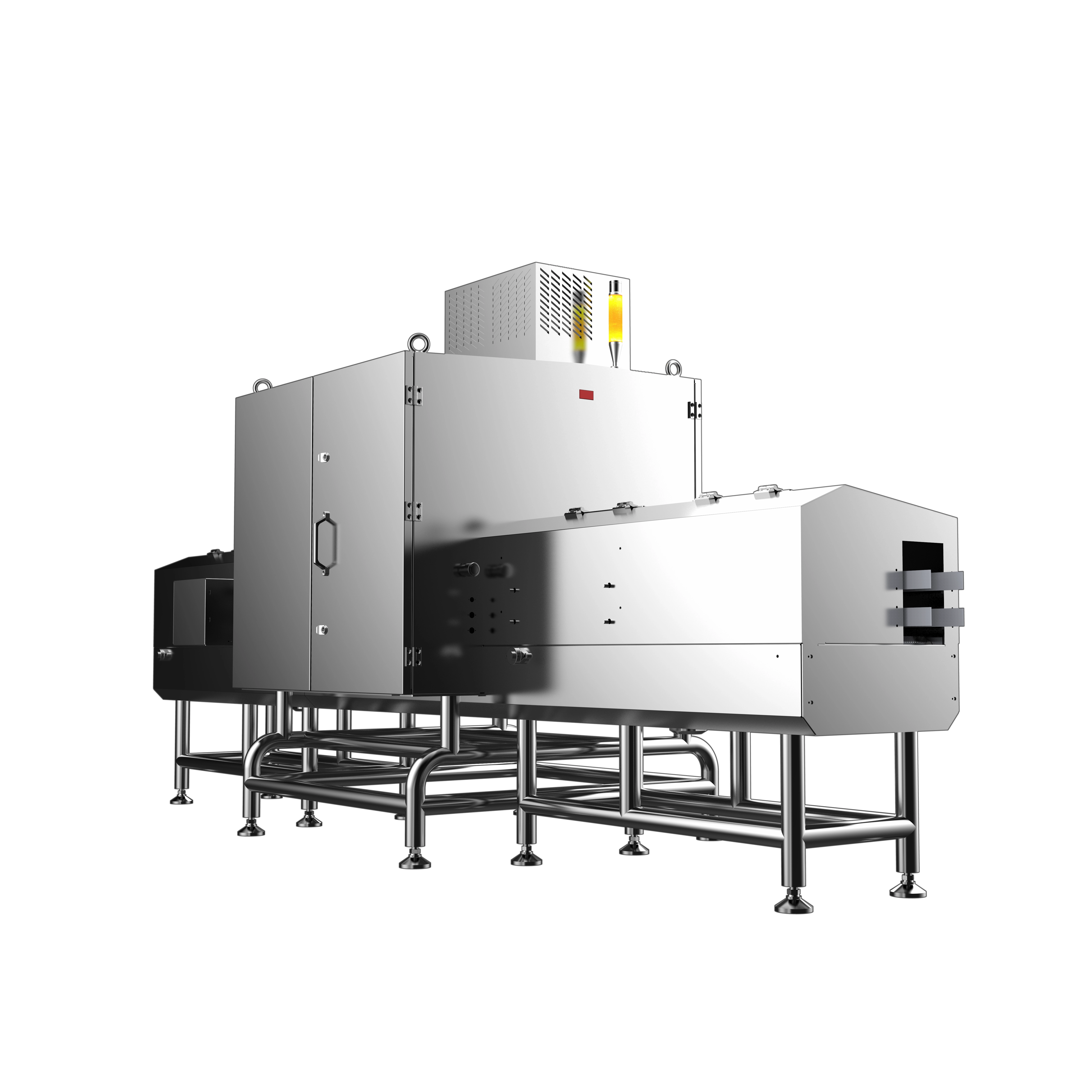

Product Video: X-ray Inspection machine for Canned or Bottled Products
The video demonstrates the COSO X-ray inspection machine, ideal for production lines with canned and bottled products. It helps detect contaminants or defects in the packaging, ensuring that safe, high-quality products are produced. This machine improves efficiency and quality control, making it a valuable tool for your production line.
Product Application
Image Enhancement Engine
The new image enhancement engine boosts image clarity, improving the detection of foreign objects and defects in real-time, while reducing false alarms and increasing overall accuracy. Below are imaging examples of the product.

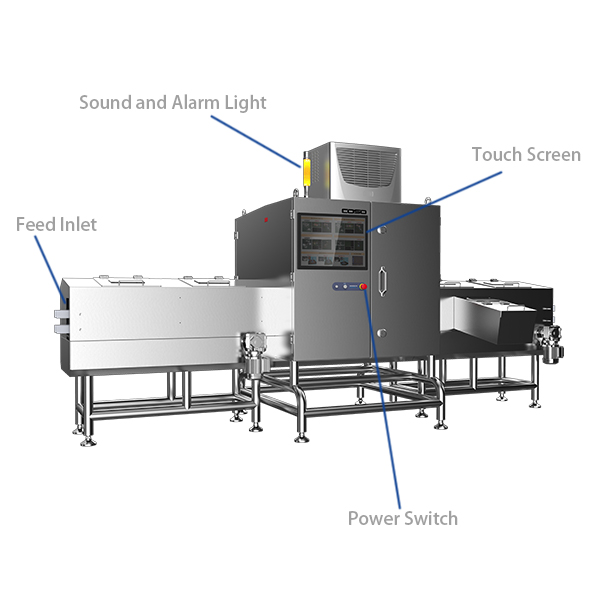

Product Details
Product Features
Lead Curtains: Both the inlet and outlet are protected by four layers of industrial-grade lead curtains.
X-ray leakage: During operation, the X-ray leakage rate is ≤1 μSv/h.
Touchscreen: 21.5-inch full HD touchscreen, paired with professional imaging software, displays test results in real time.
The rejection device is equipped with audible and visual alarms, and the rejection system can be customized to meet specific requirements.
Easy Operation
Equipment parameters are basically free of debugging, the software operation is user-friendly and easy to understand.
Product Specification
Model | XS-1625S | XS-1625D | |
Structure | Tunnel width | 160 mm | 160 mm |
Tunnel height | 250 mm | 250 mm | |
Dimension | 2150(H)*4200(L)*1500(W) mm | 2150(H)*4200(L)*1500(W) mm | |
Weight | 900 kg | 1000 kg | |
Frame material | SUS304 | SUS304 | |
Conveying | Conveyor material | Food grade PP | Food grade PP |
Conveyor width | 150 mm | 150 mm | |
Height from conveyor to ground | 800±50 mm | 800±50 mm | |
Conveyor speed | 30–60 m/min | 30–60 m/min | |
Max load | 15 kg | 15 kg | |
X ray | View | Single-view | Dual-view |
X-ray tube voltage | 60–120kV | 60–120kV | |
X-ray tube current | 200~7500 μA | 200~7500 μA | |
X-ray power | 480 W | 480 W | |
Sensitivity | Stainless steel ball（Φ） | 0.5 mm | 0.5 mm |
Stainless steel wire | 0.3*2 mm | 0.3*2 mm | |
Glass ball（Φ） | 1.5 mm | 1.5 mm | |
Ceramic ball（Φ） | 1.5 mm | 1.5 mm | |
Configuration | Protection level | Conveying part： IP66 | |
Other sections： IP54 | |||
Rejection | NG belt stops; automatic rejecction (optional) | ||
Alarm mode | Sound and light alarm | ||
Display | 21.5 inch touch screen, resolution 1920*1080 | ||
Cooling | Industrial air conditioner | ||
Protection | Four layers of industrial-grade lead curtains | ||
X-ray leakage | ≤1μSv/h | ||
Working temperature | -10–40℃ | ||
Working humidity | 30–90% RH，no frost | ||
Note:
The detection sensitivity is the test result obtained by the material blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.
Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.
