CW-C12
cosoar
Product Decription
COSO multi-head linear combination weigher is specifically designed for product packaging operations. By utilizing multiple weights and intelligent algorithms to automatically calculate optimal combinations, it achieves efficient and precise balancing and packing. COSO 12-head linear combination weigher automatically calculates the best combination of 12 fruits to match the total target weight, improving efficiency and reducing waste. 12 independent scales, each configurable with upper and lower weight limits. Any fruit exceeding the set range is marked as defective and excluded from the weight combination. This effectively enhances packaging efficiency while reducing material waste. It is suitable for fruits and vegetables, baked goods, meat and poultry, aquatic products, industrial components, pharmaceutical, and healthcare products.
Product Video : COSO 12-head linear combination weigher for orange
This video showcases the application of COSO 12-head linear combination weigher , which features 12 independent scales with 12 different weights. And it can automatically calculate the best combination of 12 oranges to match the total target weight.

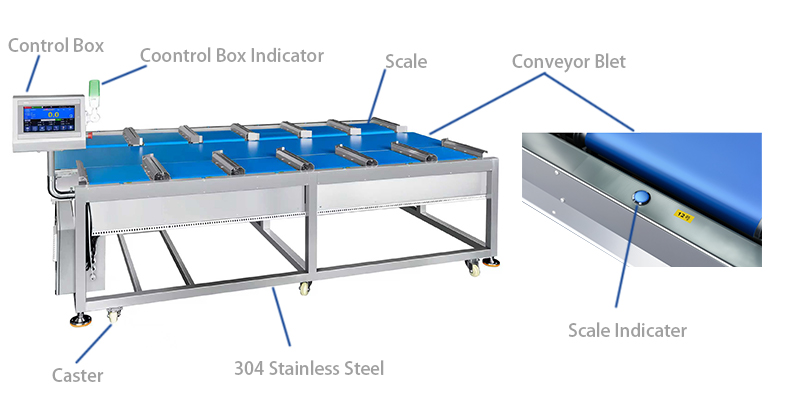

Product Details
Product Features
The control box angle is adjustable, making operation more user-friendly.

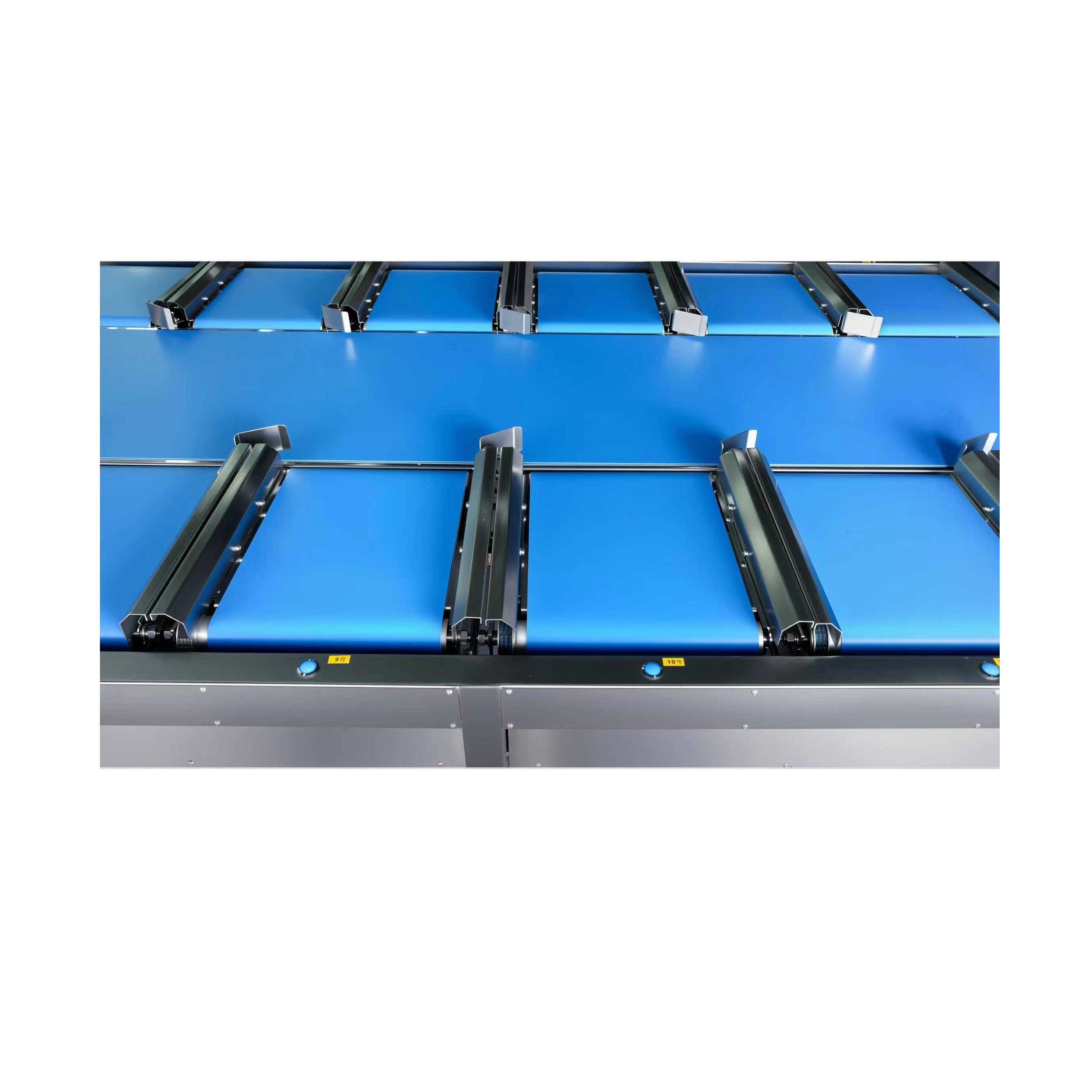

12 independent scales weigh independently, each configurable with upper and lower weight limits. Any fruit exceeding the set range is marked as defective and excluded from the weight combination.
Two modes. The weighing mode can be set to check total weight only, or both total weight and quantity at the same time.

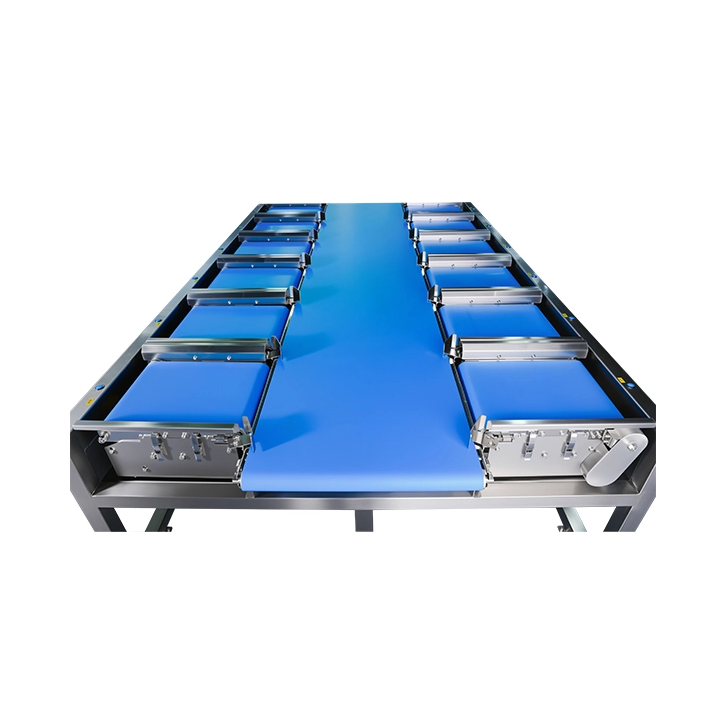

After successful weighting, the control box indicator shows green, scales indicators show blue. And products are automatically pushed onto the central conveyor belt for transfer to the same exit.
Specification
| Model | CW120/150/200/300/400-C8-16 | ||
| Batching Accuracy | ±0.5 g–±5 g | Batching Speed | 10–40 times/min |
| Scale Belt Size | Length: 250–600 mm, Width: 120–400 mm (customizable) | Belt Height from Ground | ≥700 mm (customizable) |
| Power Supply | AC 110/220/380 V (±10%), 50-60 Hz | Control System | High Speed A/D Sample Controller |
| Operating Panel | Human-Machine Interface Touchscreen | Product Parameters | Over 100 |
| Conveying Direction | From Left to Right/ From Right to Left (customizable) | Working Environment | Temperature: -30°C–50°C Humidity: 30%–95% |
| Frame Material | SUS 304 (other materials can be customized) | ||
