AEC500C1
cosoar
Product Overview

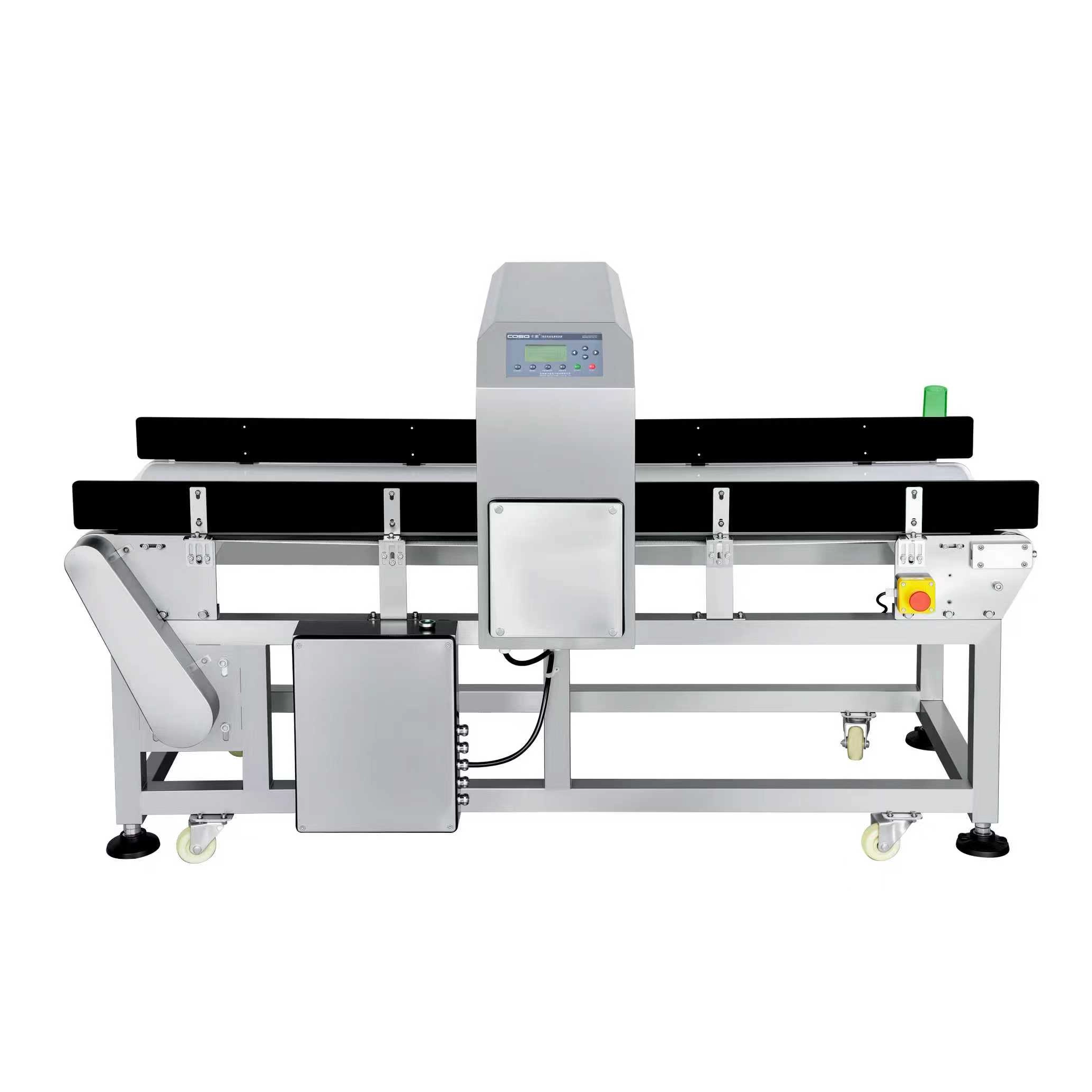

COSO AEC500C1 metal detector utilizes digital intelligent technology to achieve the digitization and intelligence of signal processing and detection functions, significantly enhancing the reliability and adaptability of detection performance. This improves production efficiency on the production line, ensures product quality, and assists companies in obtaining certifications such as ISO, HACCP, GMP, FDA, SC, and other industry standards.
Key Benefits
Detect Metal Contaminants: Detect ferrous, non-ferrous (copper, aluminum), and stainless steel (SUS) contaminates to reduce the risk of costly products recalls.
Sensitivity & Accuracy: Fe (Φ/mm): 0.6–3.0; Non-Fe (Φ/mm): 0.8–3.5; SUS (Φ/mm): 1.2–4.0
Compliance with Standards: COSO metal detectors help you adhere to essential regulatory requirements, like ISO, FDA, CE. Reduce the risk of non-compliance fines.
Material Speed (m/s): 0.25–0.6
Easy Integration: Our detectors can easily integrate into existing production lines.
Application (but not limited)

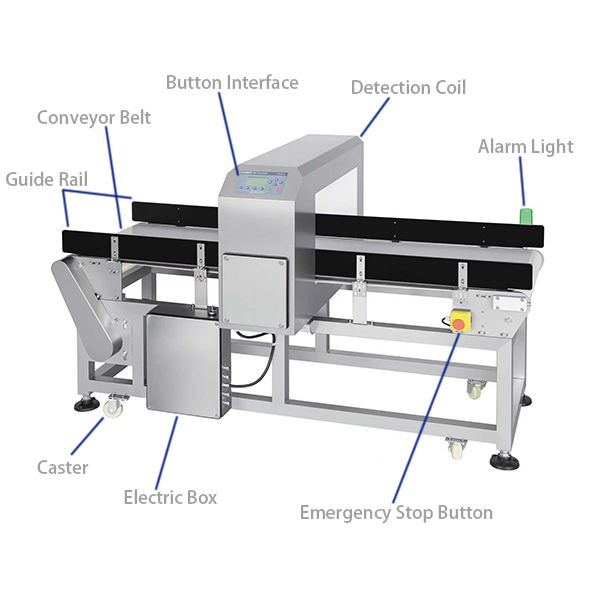

Product Structure
Product Video: Metal detector for a 15 kg bag of silica
This video showcases the metal detector's operation. First, a 15 kg bag of silica passes smoothly without any metal contaminants. Then, 2.5 mm ferrous metal, 3.0 mm non-ferrous metal, and 3.5 mm stainless steel add into the silica in sequence. When metal contaminants are detected, the belt stops immediately, and the contaminated product is automatically rejected. This demonstrates the high precision and efficiency of the metal detection system in identifying and removing various types of metal contaminants, ensuring product quality and compliance with industry standards.
Product Features
Product Specification
| Model | 3510 | 4012 | 4515 | 5020 | 5025 | 6030 | 6040 | |
| Paaing Width (mm) | 300 | 350 | 400 | 450 | 450 | 550 | 550 | |
| Passing Height (mm) | 70 | 90 | 120 | 170 | 220 | 270 | 370 | |
| Sensitivity | FeΦ | 0.6 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 3.0 |
| Non-FeΦ | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.5 | |
| SUSΦ | 1.2 | 1.4 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | |
| Speed (m/s) | 0.25–0.6 | |||||||
Note:
The listed sensitivity values are obtained with test cards passing through the detection tunnel at the center of the conveyor surface (under no-load conditions). Actual sensitivity may vary depending on product characteristics or operating environment; always refer to the actual sensitivity. Technology upgrades may improve sensitivity, consult sales for the latest data. The listed models are selected standard configurations; other configurations are available; contact sales for details.
Certification
ISO 9001: Quality management systems.
The belt has been FDA certified: Compliant with U.S. food and drug regulations.
CE Certified: Meets EU safety, health, and environmental protection standards.
Different Rejections
Swinging arm, drop-flap, rodless pusher, air blow, retractable belt, pusher, bi-directioncan, drop-belt, deflection rejection be chosen. The metal detector automatically detects for faults during startup and provides prompts, ensuing accurate detection and minimizing false readings.
Click here to learn more: Different rejection systems
Customizable options
COSO boasts advanced R&D and manufacturing capabilities, along with extensive expertise in customization. Below are the customization options we offer.
| No. | Content | Description |
| 1 | HMI Type | Button Screen，4-inch or 7-inch touchscreen (optional) |
| 2 | Operating Language | Default: Chinese & English Button Screen：Japanese, Spanish, Russian, Portuguese, Turkish (optional) Touchscreen: Japanese, Croatian, Spanish, Russian, Portuguese, Vietnamese, Korean, Thai (optional) Other languages require client-provided translations for customization |
| 3 | Client Name & Logo | Displayed on the startup interface |
| 4 | Probe Passage Size | Customizable based on product size, with the belt width determined by the probe aperture size |
| 5 | Belt-to-Ground Height | Default value: ±30 mm; max range: ±50 mm |
| 6 | Conveyor Belt Type | Standard type or food-grade |
| 7 | Conveyor Speed | Speed can be fixed or adjustable. Adjustable range: 15–36 m/min, fast speed: 40–50 m/min, slow speed: 3–8 m/min |
| 8 | Different Sensitivity | Standard type or high-precision type |
| 9 | Machine Length | Based on product size and production line, most are 1500 mm, 1600 mm, 1800 mm, 2000 mm, with other lengths customizable |
| 10 | Machine Structure | Standard: conveyor, motor, detection probe, and control box The detection probe can be purchased separately and made detachable |
| 11 | Rejection System Options | Rejection system: pusher, push-lever, air blow, left and right rejection, flap, belt-sinking |
| 12 | Explosion-Proof Customization | Explosion-proof electrical boxes, cables, and enclosures |
| 13 | Waterproof Customization | Plastic chain plates, silicone seals, moisture-proof strips, drainage channels |
| 14 | USB Interface Customization | If data transmission is required, a USB interface can be customized |
| 15 | Appearance Customization | Standard: Stainless steel frame/probe Optional: Powder-coated in white, blue, gray,etc. |
| 16 | Inlet and Outlet Heights | The outlet height can be higher than the inlet height, lifting the material while it is being detected |
Manufacturing Process
Company Profile
Dongguan Coso Electronic Tech Co., Ltd, founded in 2005 and headquartered in Dongguan, a globally renowned manufacturing hub in China, is a technology-driven enterprise specializing in the R&D, manufacturing, and sales of intelligent detection and sorting equipment.
COSO products mainly include metal detectors, metal separators, checkweighers, and X-ray inspection systems that are used in a wide range of industries including food & beverage, pharmaceuticals, healthcare, rubber & plastics, chemicals, personal care & household products, cosmetics, textiles & apparel, toys, hardware, automotive, electronics, packaging & printing, mining, as well as building materials.
COSO products combine user-friendly modular design, intelligent algorithms, and precision manufacturing. With over 20 national patents, ISO 9001 certification, and compliance with CE, FDA, and RoHS regulations, the products have been exported to more than 90 countries and regions and adopted by numerous Fortune Global 500 companies.
The company has established a distribution and service network covering more than 20 countries.
Exhibition
At COSO, we regularly participate in leading industry exhibitions to showcase our cutting-edge metal detection technology. With each event, we demonstrate our commitment to innovation and our ability to provide top-tier solutions for industries like food, pharmaceuticals, textiles, and more. Join the many businesses around the world that trust COSO for reliable, high-performance metal detection.
Packing and Delivery
Packing : Wooden Case
Delivery Time: After deposit, production starts right away and takes about 15 working days.
FAQ
1. Q: What's your minimum order quantity?
A: One set.
2. Q: Do you accept customization?
A: Yes, and it's one of our advantages.
3. Q: How long is your delivery time？
A：Once we reach an agreement and the payment is received, the production process starts immediately, basically the time is 15 working days.
4. Q: How about the packing for machine? Would it be easily damaged during transportation?
A: We use standard export wooden case for packing which is strong enough for transportation.
5. Q: How about your after-sale service?
A: First, if you don't know how to install or use the machine, our staff will provide detailed description and video to help you, we can also get online to have instant communication.
Second, if you have continual purchase needs, you can send people to our company and we can provide operation training.
Third, all of our products have one year warranty. If the core accessories went wrong and can' t be repaired, you can exchange for a new one.
Last, if the problem is extremely serious, we can send engineers to your company to help.
