AEC500C2
cosoar
Product Description
Key Benefits
Detect Metal Contaminants: Detect ferrous, non-ferrous (copper, aluminum), and stainless steel (SUS) contaminates to reduce the risk of costly products recalls.
Sensitivity & Accuracy: Fe (Φ/mm): 0.6–3.0; Non-Fe (Φ/mm): 0.8–3.5; SUS (Φ/mm): 1.2–4.0
Compliance with Standards: COSO metal detectors help you adhere to essential regulatory requirements, like ISO, FDA, CE. Reduce the risk of non-compliance fines.
Material Speed (m/s): 0.25–0.6
Easy Integration: Our detectors can easily integrate into existing production lines.
Product Application

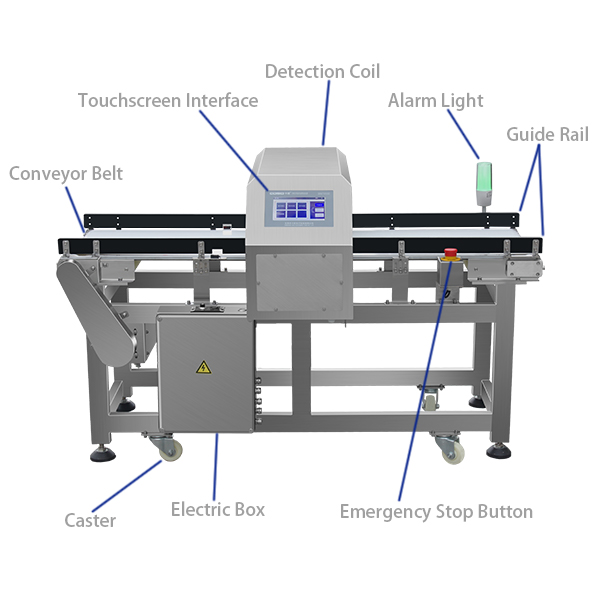

Product Structure
Product Video
Product Feature
One-touch "product effect" self-learning, automatically sets corresponding product parameters.
Equipped with automatic memory of 200 product parameters, allowing quick changeovers for instant recall without repeated settings. Suitable for multi-category production lines.
Automatically stores and exports up to 700 detection logs, and alarm records for easy counting and querying of data. (optional).
Flexible customizations are available, including structural dimensions, hardware and software customization, automatic rejection, waterproof, dustproof, explosion-proof and system integration, ensuring compatibility with various production lines and production environments.
Modular design for easy, low-cost maintenance.
Product Specification
| Model | 3510 | 4012 | 4515 | 5020 | 5025 | 6030 | 6040 | |
| Passing Width (mm) | 300 | 350 | 400 | 450 | 450 | 550 | 550 | |
| Passing Height (mm) | 70 | 90 | 120 | 170 | 220 | 270 | 370 | |
| Sensitivity | Fe (Φ/mm) | 0.6 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 3.0 |
| Non-Fe (Φ/mm) | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.5 | |
| SUS (Φ/mm) | 1.2 | 1.4 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | |
| Speed (m/s) | 0.25–0.6 | |||||||
Note: The listed sensitivity values are obtained with test cards passing through the detection tunnel at the center of the conveyor surface (under no-load conditions). Actual sensitivity may vary depending on product characteristics or operating environment, always refer to the actual sensitivity. Technology upgrades may improves sensitivity, consult sales for the latest data. The listed modles are selected standard configurations, other configurations are available, contact sales for details.
Certification
ISO 9001: Quality management systems.
The belt has been FDA certified: Compliant with U.S. food and drug regulations.
CE Certified: Meets EU safety, health, and environmental protection standards.
Different Rejections
Swinging arm, drop-flap, rodless pusher, air blow, retractable belt, pusher, bi-directioncan, drop-belt, deflection rejection be chosen. The metal detector automatically detects for faults during startup and provides prompts, ensuing accurate detection and minimizing false readings.
Click here to learn more: Different rejection systems
Customizable options
COSO boasts advanced R&D and manufacturing capabilities, along with extensive expertise in customization. Below are the customization options we offer.
| No. | Content | Description |
| 1 | HMI Type | Button Screen，4-inch or 7-inch touchscreen (optional) |
| 2 | Operating Language | Default: Chinese & English Button Screen：Japanese, Spanish, Russian, Portuguese, Turkish (optional) Touchscreen: Japanese, Croatian, Spanish, Russian, Portuguese, Vietnamese, Korean, Thai (optional) Other languages require client-provided translations for customization |
| 3 | Client Name & Logo | Displayed on the startup interface |
| 4 | Probe Passage Size | Customizable based on product size, with the belt width determined by the probe aperture size |
| 5 | Belt to Ground Height | Default value: ±30 mm; max range: ±50 mm |
| 6 | Conveyor Belt Type | Standard type or food-grade |
| 7 | Conveyor Speed | Speed can be fixed or adjustable. Adjustable range: 15–36 m/min, fast speed: 40–50 m/min, slow speed: 3–8 m/min |
| 8 | Different Sensitivity | Standard type or high-precision type |
| 9 | Machine Length | Based on product size and production line, most are 1500 mm, 1600 mm, 1800 mm, 2000 mm, with other lengths customizable |
| 10 | Machine Structure | Standard: conveyor, motor, detection probe, and control box The detection probe can be purchased separately and made detachable |
| 11 | Rejection System Options | Rejection system: pusher, push-lever, air blow, left and right rejection, flap, belt-sinking |
| 12 | Explosion-Proof Customization | Explosion-proof electrical boxes, cables, and enclosures |
| 13 | Waterproof Customization | Plastic chain plates, silicone seals, moisture-proof strips, drainage channels |
| 14 | USB Interface Customization | If data transmission is required, a USB interface can be customized |
| 15 | Appearance Customization | Standard: Stainless steel frame/probe Optional: Powder-coated in white, blue, gray,etc. |
| 16 | Inlet and Outlet Heights | The outlet height can be higher than the inlet height, lifting the material while it is being detected |
Manufacturing Process
Packing and Delivery
Packing : Wooden Case
Delivery Time: After deposit, production starts right away and takes about 15 working days.
