SEC1000
COSO
Product Description
The mining metal detector is suitable for industries such as minging, coal, cement, building materials and chemicals to detect metal contaminates mixed into or lost within raw materials. In the production process of these industries, the presence of metal contaminants may damage equipment or affect product quality. Using metal detector can protect the downstream mechanical equipment on the production line and help manufacturers maintain safe production.
Product Application

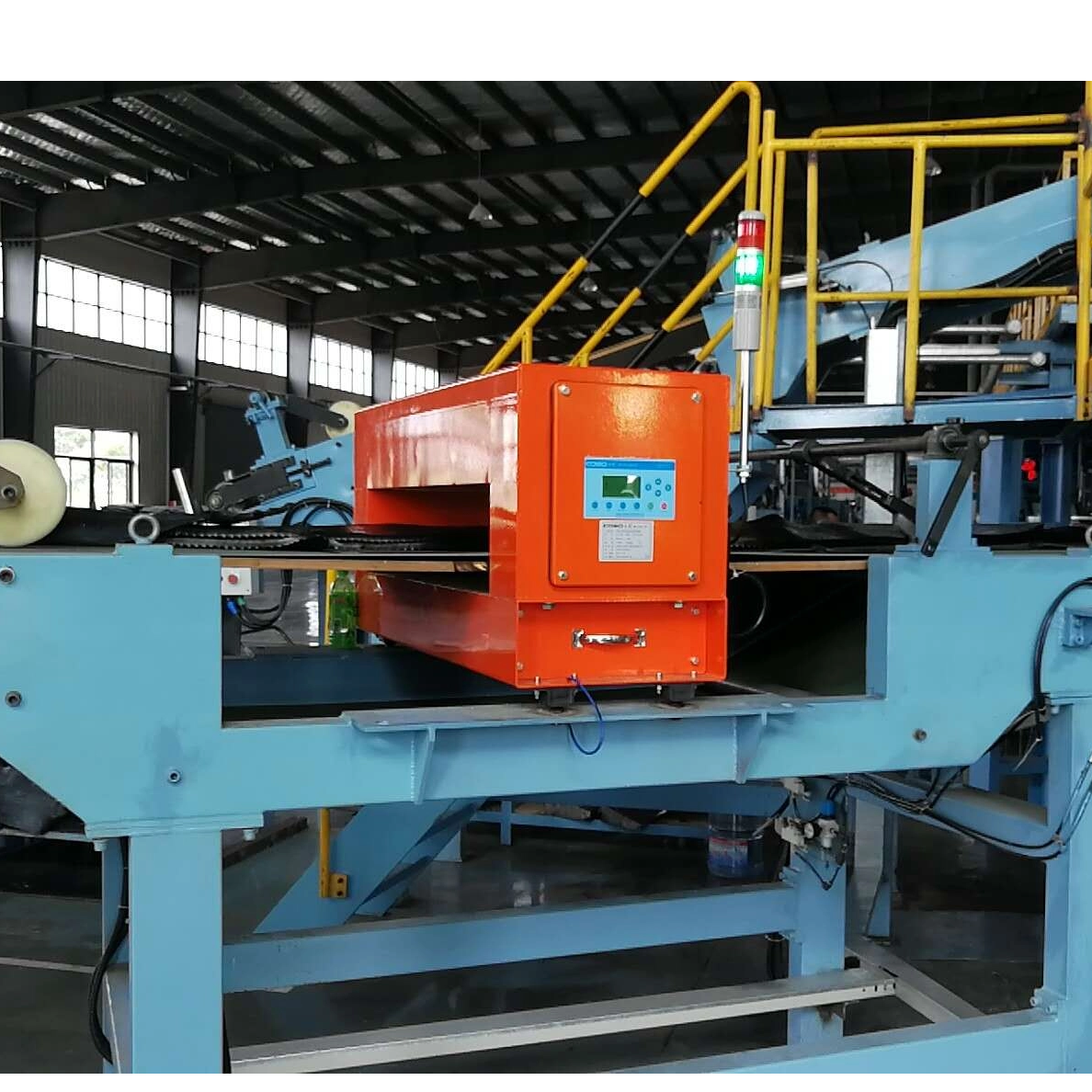

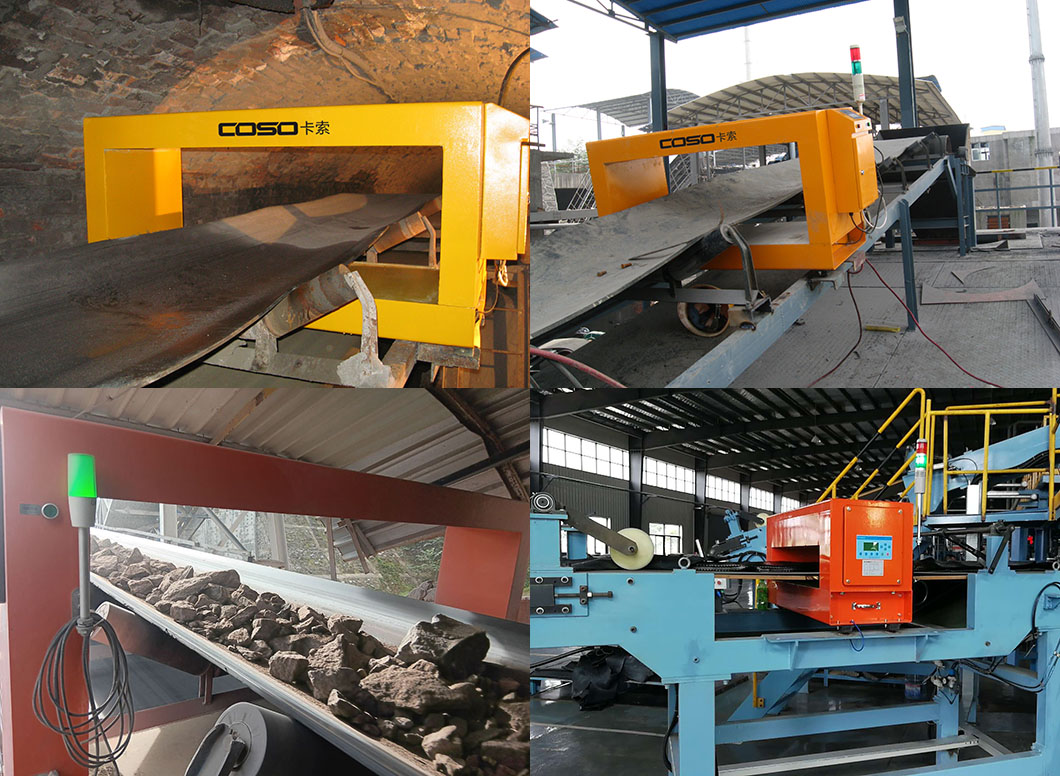

Field Application
Product Features

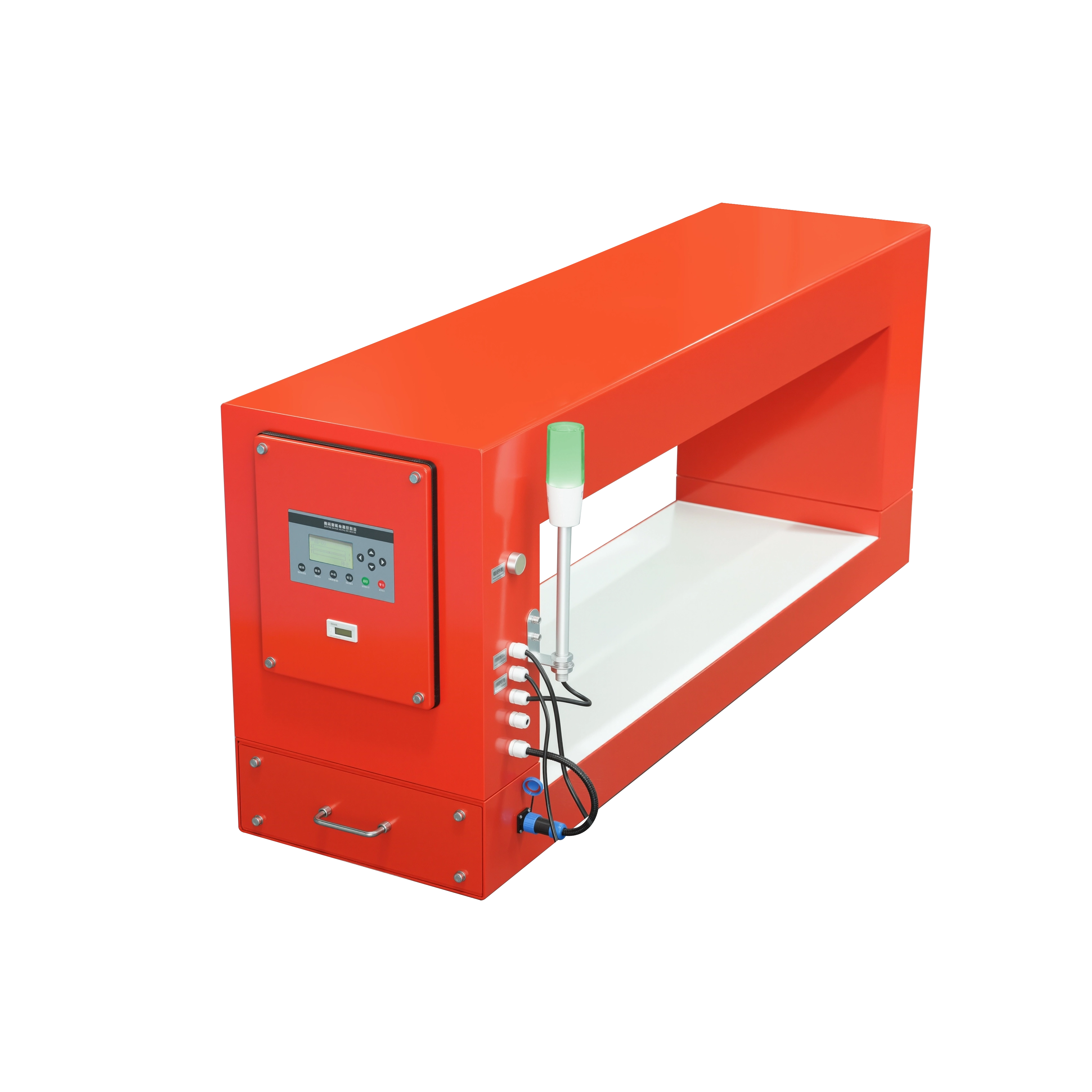

A striking orange-red exterior ensures easy identification and maintenance in complex, dusty environment.

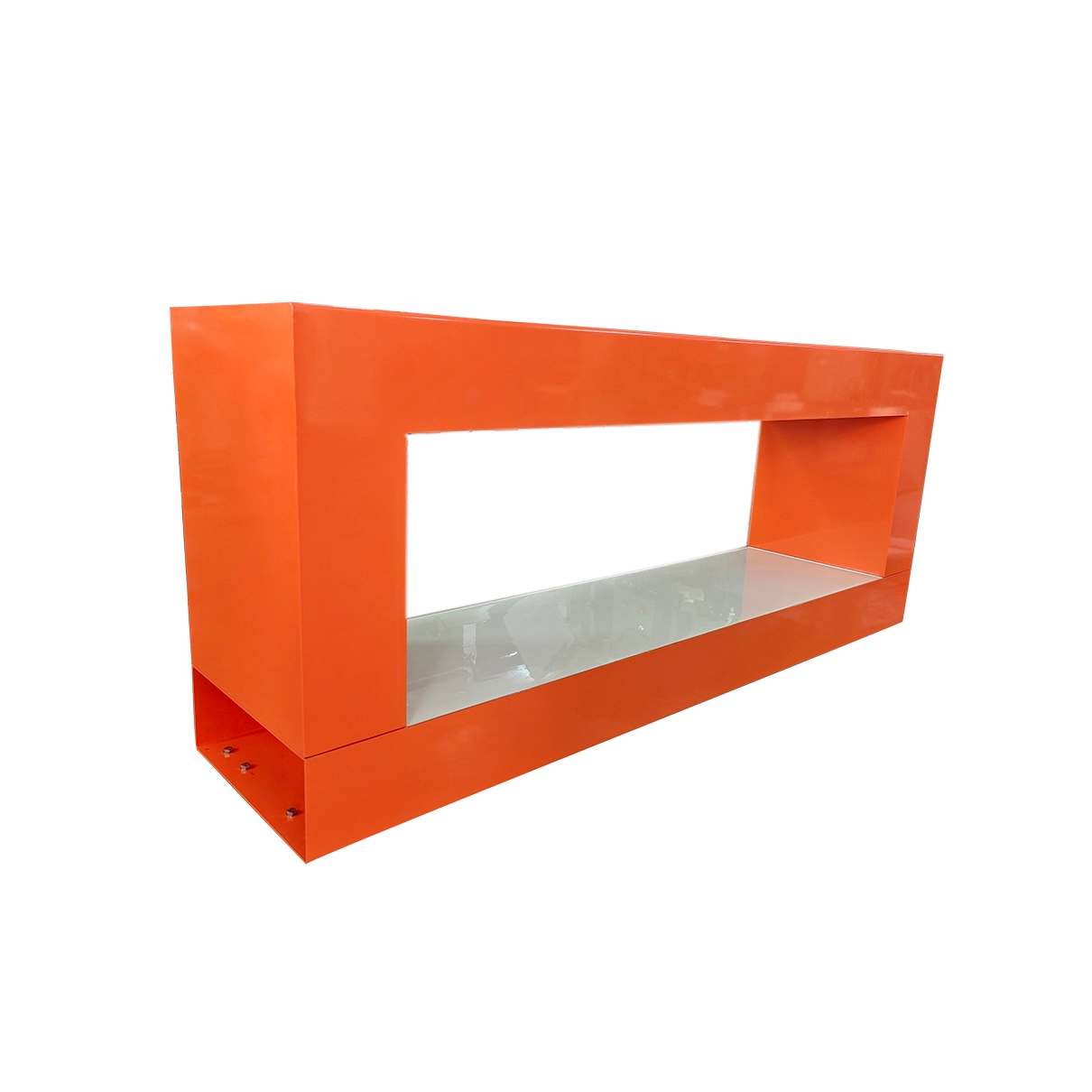

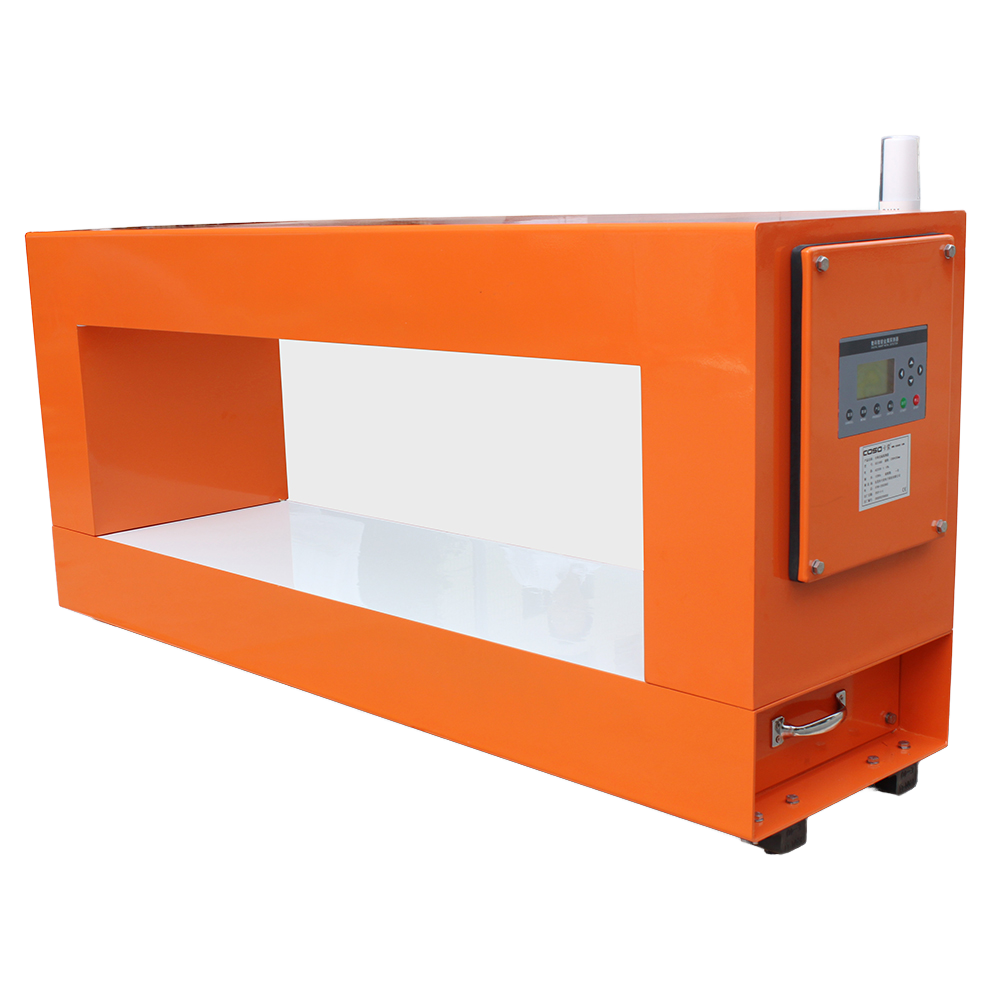

The split structure allows for convenient on-site installation.
The entire machine adopts a fully sealed, enclosed design,efficiently preventing dust from entering the interior of detection probe.
It detects metal and instantly sends a signal and alarm ,controlling the conveyor belt stop.
Machine has self-learnig function of product features.
The DSP digital intelligent technology has high detection sensitivity and anti-interference ability.
Button interface is convenient to adjust parameters and watch.
Explosion-proof, waterproof, dust-proof, vibration-resistant protection can be customizable.

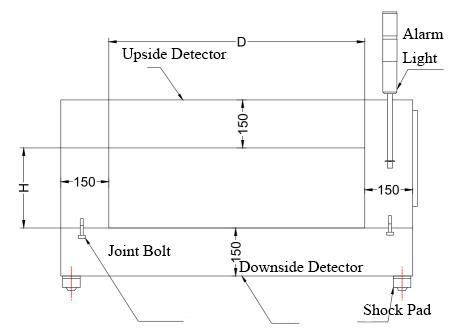

Product Specification
| Tunnel Width | Tunnel Height | Suitable Conveyor Width | Passing Height | Sensitivity | |
| 1000mm | 200mm | 800mm | 150mm | FeΦ≥2.6mm | SUSΦ≥4.0mm |
| 1000mm | 250mm | 800mm | 200mm | FeΦ≥3.5mm | SUSΦ≥5.3mm |
| 1000mm | 300mm | 800mm | 250mm | FeΦ≥4.2mm | SUSΦ≥6.3mm |
| 1000mm | 350mm | 600mm | 300mm | FeΦ≥4.5mm | SUSΦ≥6.5mm |
| 1000mm | 400mm | 600mm | 350mm | FeΦ≥5.2mm | SUSΦ≥7.8mm |
| 1000mm | 450mm | 600mm | 400mm | FeΦ≥6.1mm | SUSΦ≥9.2mm |
| 1000mm | 500mm | 600mm | 450mm | FeΦ≥6.8mm | SUSΦ≥10.3mm |
| 1200mm | 200mm | 1000mm | 150mm | FeΦ≥2.9mm | SUSΦ≥4.4mm |
| 1200mm | 250mm | 1000mm | 200mm | FeΦ≥3.8mm | SUSΦ≥5.7mm |
| 1200mm | 300mm | 1000mm | 250mm | FeΦ≥4.5mm | SUSΦ≥6.8mm |
| 1200mm | 350mm | 800mm | 300mm | FeΦ≥5.0mm | SUSΦ≥7.5mm |
| 1200mm | 400mm | 800mm | 350mm | FeΦ≥5.6mm | SUSΦ≥8.4mm |
| 1200mm | 450mm | 800mm | 400mm | FeΦ≥6.1mm | SUSΦ≥9.5mm |
| Customized | Customized | Customized | Customized | Customized | Customized |
Notes
The detection sensitivity is the test result obtained by the material blocks falling freely through the detection pipeline. The actual sensitivity may be different accordingly to the characteristics of the tested products or the working environment, it should be based on the actual detection sensitivity.
Models listed in the table are just standard configurations. Our actual production includes numerous variants not exhaustively listed here. For other requirements, please contact customer service for details.
