COSO Metal Separator for Slow-Falling Material Columns—A Technical Solution Overview

Customer Context & Background

The customer is a high-precision polymer component manufacturer serving the automotive and electronics industries. Their production focuses on engineering-grade polymer components that demand high material purity and strict contamination control throughout the manufacturing process.

Production Line Setup

The production line utilizes extrusion molding with twin-screw feeder assemblies. The material handling system processes slow-moving, dense-phase polymer pellet columns, which present unique challenges for conventional metal separation technologies.

Core Pain Point

Traditional gravity-fall metal separators are designed for high-speed material flow. They rely on sufficient fall velocity to detect and separate metal contaminants effectively. In slow-moving material columns—typical of dense-phase polymer processing—these conventional systems fail to perform reliably.

The consequences of inadequate metal separation are severe:

Equipment damage: Stray metal fragments—such as loose screws, washers, broken wires, and stainless steel chips—can cause catastrophic damage to extruder screws and nitrided barrels.

Expensive repairs: Replacing or repairing damaged extruder components involves significant downtime and high maintenance costs.

Batch contamination: Contaminated material can ruin entire production batches, leading to material waste and compromised product quality.

For a manufacturer serving the demanding automotive and electronics industries, these risks are unacceptable.

Technical Solution: COSO Metal Separator for Slow-Falling Material Columns

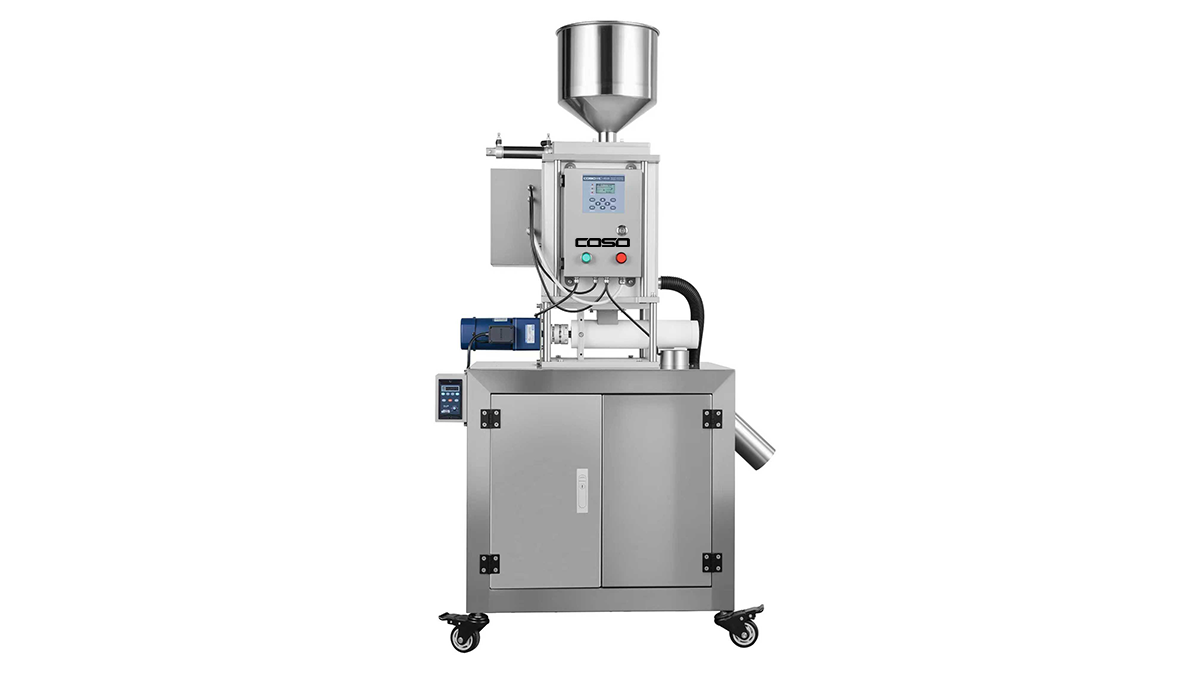

To address these challenges, COSO developed a purpose-built metal separation system specifically engineered for slow-moving, dense-phase polymer pellet columns. The system integrates several advanced components to ensure reliable detection and precise removal of metal contaminants.

Integrated Units

The system features a direct flange connection to feeding hoppers and the extrusion screw throat, ensuring seamless integration with existing production lines. The design maintains consistent material flow and detection conditions.

High-Frequency Inductive Detection Technology

At the heart of the system is a high-sensitivity detection coil capable of identifying both magnetic and non-magnetic metals—including ferrous, non-ferrous, and stainless steel contaminants.

Isolating Feed Valve

This instant-closing valve blocks incoming raw material during the rejection sequence, preventing additional contaminated material from entering the detection zone and ensuring precise isolation.

Active Vacuum Suction Unit

A critical innovation in this system is the active vacuum suction unit, which creates localized negative pressure to quickly draw out the exact material column segment containing the foreign metal. This targeted approach minimizes clean material waste while ensuring complete contaminant removal.

Defective Outlet

The isolated contaminated pellets are discharged through a defective outlet, allowing easy collection and disposal while preserving the purity of the remaining material stream.

Step-by-Step Rejection Workflow

The rejection process is fully automated and operates in a continuous cycle, ensuring uninterrupted production.

Step 1: Normal Flow

During normal operation, pure polymer pellets pass continuously through the detection zone and into the extrusion molding process. The system monitors the material flow in real time without interrupting production.

Step 2: Detection & Alarm

When a metal fragment passes through the high-frequency detection zone, the system immediately triggers an audio-visual alarm to alert operators.

Step 3: Valve Isolation & Vacuum Evacuation

Upon detection, the pneumatic isolating feed valve closes instantly, stopping the incoming material flow. Simultaneously, the active vacuum suction unit engages, creating negative pressure to draw the contaminated material column segment out through the reject outlet.

Step 4: Seamless Resume

Once the contaminated material is evacuated, the feed valve re-opens automatically. Production resumes without stopping the main extruder motor, ensuring minimal disruption to the overall manufacturing process.

Key Benefits & Comparison Matrix

Zero Extruder Screw Damage

By removing metal contaminants before they reach the extrusion stage, the system protects capital equipment—including extruder screws, barrels, and precision molds—from catastrophic damage. This protection extends equipment life and reduces maintenance costs.

No Material Bridging

Unlike conventional mechanical flap valves, which often experience material bridging and clogging in slow-fall material lines, the COSO vacuum-assisted system maintains consistent flow without interruption. This ensures reliable operation even in dense-phase material applications.

Reduced Material Loss

The targeted vacuum extraction approach removes only the contaminated material segment, preserving clean raw material and minimizing material waste. This efficiency translates to cost savings and improved material utilization.

Higher Operational Uptime

The fully automated rejection cycle operates in a short time, eliminating the need for manual intervention. This enables continuous production without line stoppage, maximizing operational uptime and overall equipment effectiveness (OEE).

Summary & Conclusion

For manufacturers of plastic components, protecting extrusion equipment from metal contamination is essential for maintaining product quality, reducing downtime, and minimizing costs. The COSO Metal Separator for Slow-Falling Material Columns offers a reliable, efficient, and automated solution that addresses the unique challenges of polymer material handling.

Contact COSO today to learn how our custom-engineered metal separation solutions can protect your production line and improve your material quality.
