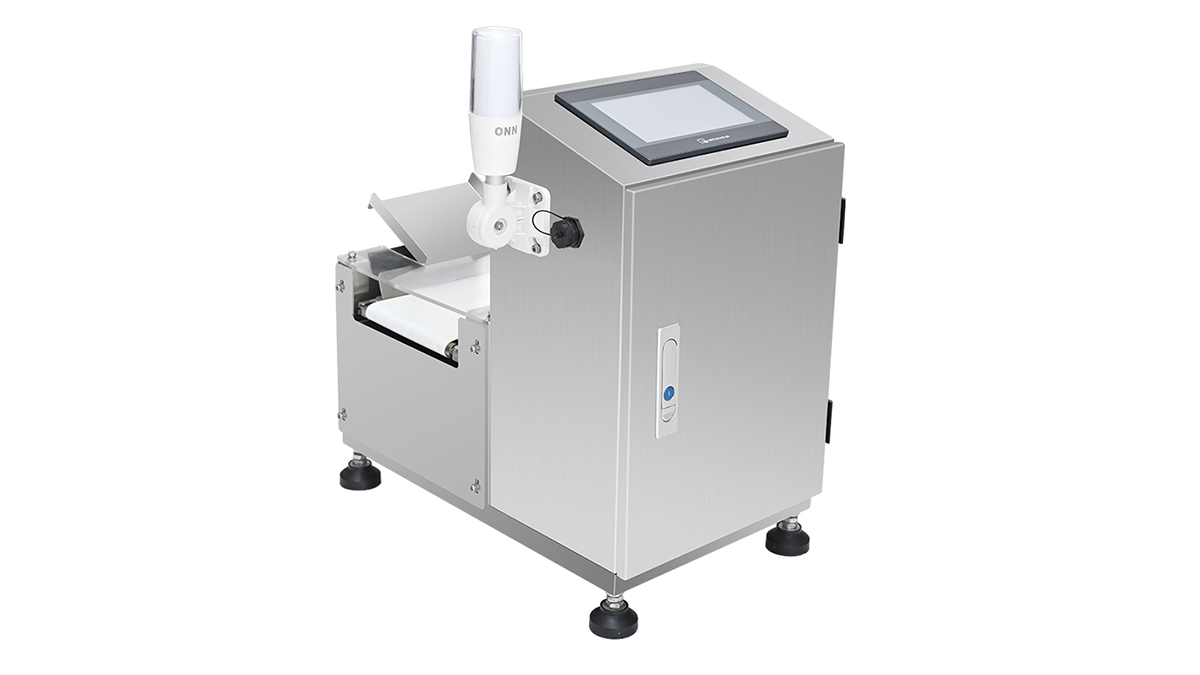

Optimizing Space Line: Stop And Weigh Belt Scale for Small Products

In modern production lines, traditional dynamic weighing systems may measure mistakes due to conveyor movement. This stop and weight belt scale adopts a static weighing principle to eliminate such interference and ensure high-precision inspect.

Product Features

Continuous Operation Without Line Stoppage

The system enables continuous production without stopping the production line, allowing products to flow smoothly through the weighing process. Qualified products are automatically conveyed downstream. While weight non-compliant products are detected, the belt reverses automatically and reject them promptly. This complete process can maintain stable and efficient operation.

Integrated Weighing and Reject System

Weighing and reject system are integrated into a single unit, eliminating the need for an additional weighing or reject section. This design significantly reduces installation space and helps lower overall system costs.

Movement Direction

Facing the operator, weight non-compliant products move to the left while qualified products move to the right. The conveyor movement direction can also be adjusted according to production line requirements.

User-Friendly Touchscreen Operation

A touchscreen interface allows operators to modify parameters in real time, making the system easy to control and flexible for different production needs.

Stable and Safe Product Handling

An inclined baffle is incorporated to prevent products from falling during conveying, ensuring safe and stable operation throughout the weighing and rejecting process.

Product Demo Video

Watch the full demo on YouTube to see real-time weighing and automatic rejection in a continuous production line.

The video demonstrates real-time weighing and automatic rejecting of qualified and weight non-compliant products without interrupting the production line.

Applications

This stop and weight belt scale is suitable for inline weighing of small products across a wide range of industries, including:

• Packaged snacks

• Hardware screws

• Plastic parts

•  Seasoning sachets

• Toy components

• Electronic components

• Furniture fittings

• Bathroom accessories

• Fasteners

• Other small packaged items

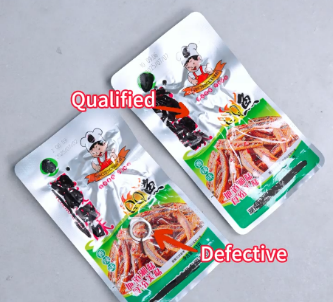

Example of Qualified and Weight Non-Compliant Products During Testing

FAQ

What is the advantage of the stop and weigh belt scale?

Stop and weigh belt scale inspects products in a static state, eliminating errors caused by conveyor movement and providing higher accuracy for small or lightweight items.

Does the system stop the production line during operation?

No. The system supports continuous operation, allowing products to be weighed and rejected without interrupting the production line.

Is a separate reject device or additional weighing section required?

No. Weighing and rejection are integrated into a single unit, reducing installation space and costs.

What types of products can it weigh?

It is suitable for small packaged items such as snacks, screws, plastic components, electronic parts, and similar products.
